Product Overview

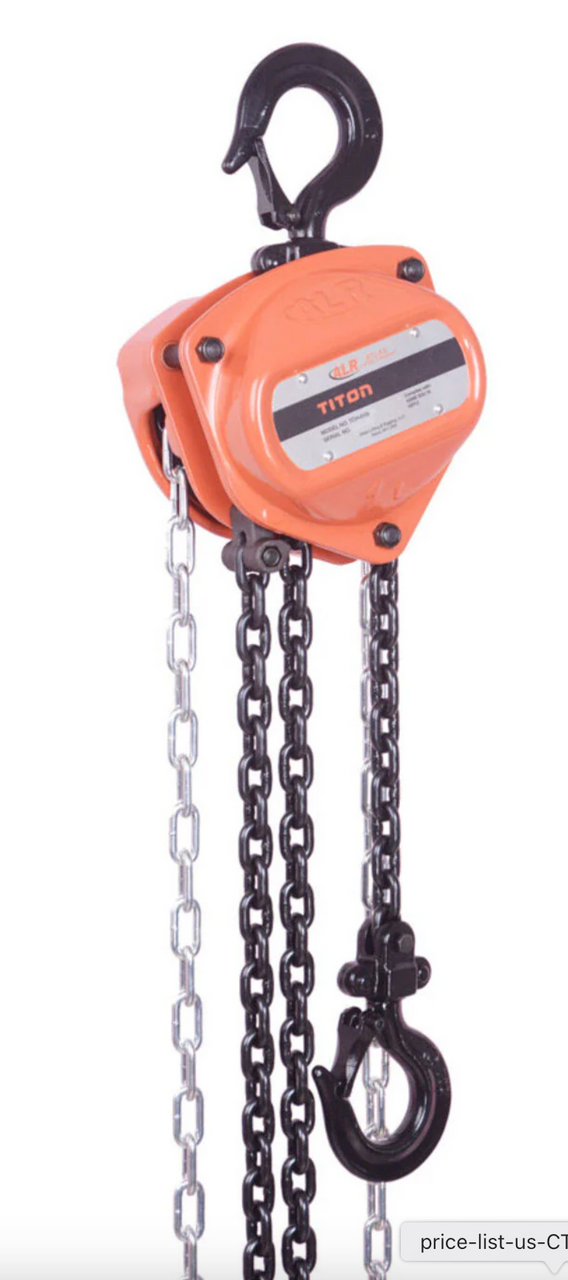

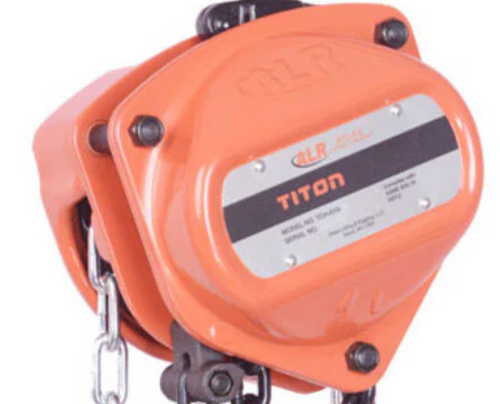

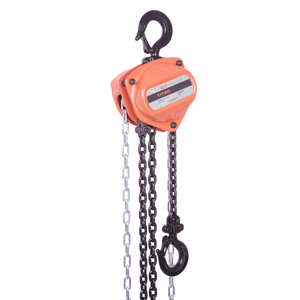

Atlas Titan TCH-005-30 Chain Hoist – 0.5 Ton Capacity, 30 Ft. Lift
Product Description:
The Atlas Titan TCH-005-30 Chain Hoist is designed for safe, reliable lifting of loads up to 0.5 ton (1,100 lbs), with an extended 30-foot lift height for applications requiring greater reach. Ideal for taller structures, overhead work, or deeper lifting zones, this manual hoist offers dependable performance in a variety of light-duty industrial and commercial settings.
Built with a high-strength Grade 80 alloy load chain, the hoist features a mechanical load brake for smooth and secure load control. A fully enclosed steel housing protects the internal gearing from dirt and damage, while forged top and bottom hooks with safety latches ensure a solid and safe connection.
Despite its longer chain, the TCH-005-30 remains compact and easy to use, making it suitable for both permanent and portable lifting setups.
Specifications:
- Model: TCH-005-30
- Capacity: 500 kg (0.5 ton / 1,100 lbs)
- Standard Lift Height: 30 ft (9 m)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: 5 mm
- Hand Chain: Zinc-plated, manual pull
- Brake System: Mechanical load brake for precise lifting control
- Hooks: Forged steel (top and bottom) with safety latches
- Housing: Enclosed powder-coated steel casing
- Net Weight: Approx. 23.5 kg (51.8 lbs)
- Compliance: Meets ASME B30.16 / CE / EN standards
- Applications: High-reach lifting, rigging, workshop use, equipment handling, overhead maintenance
