Product Overview

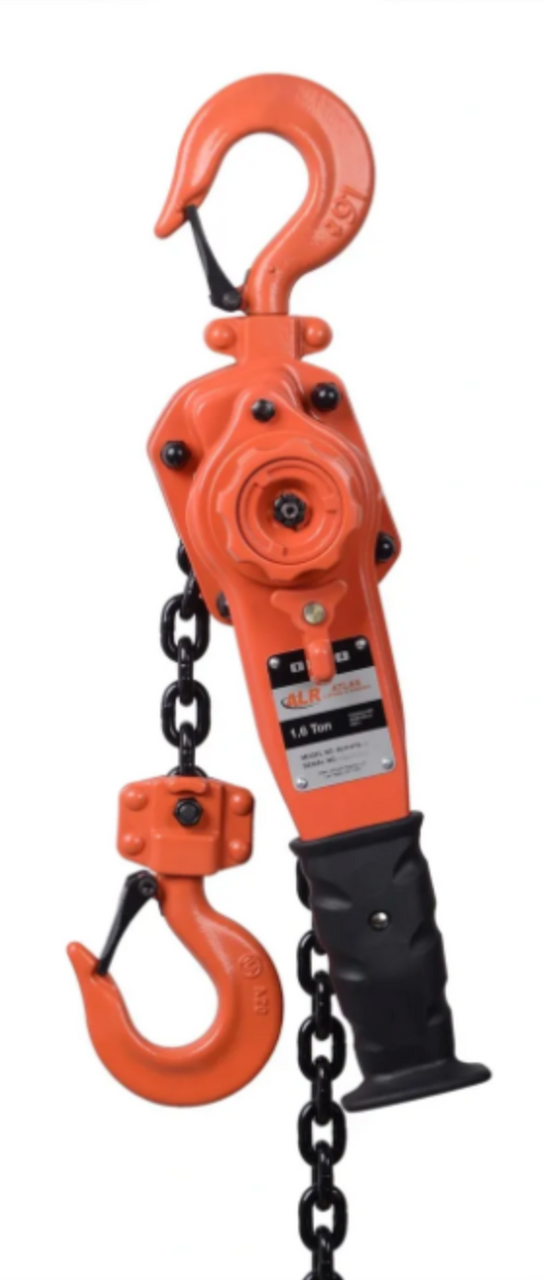

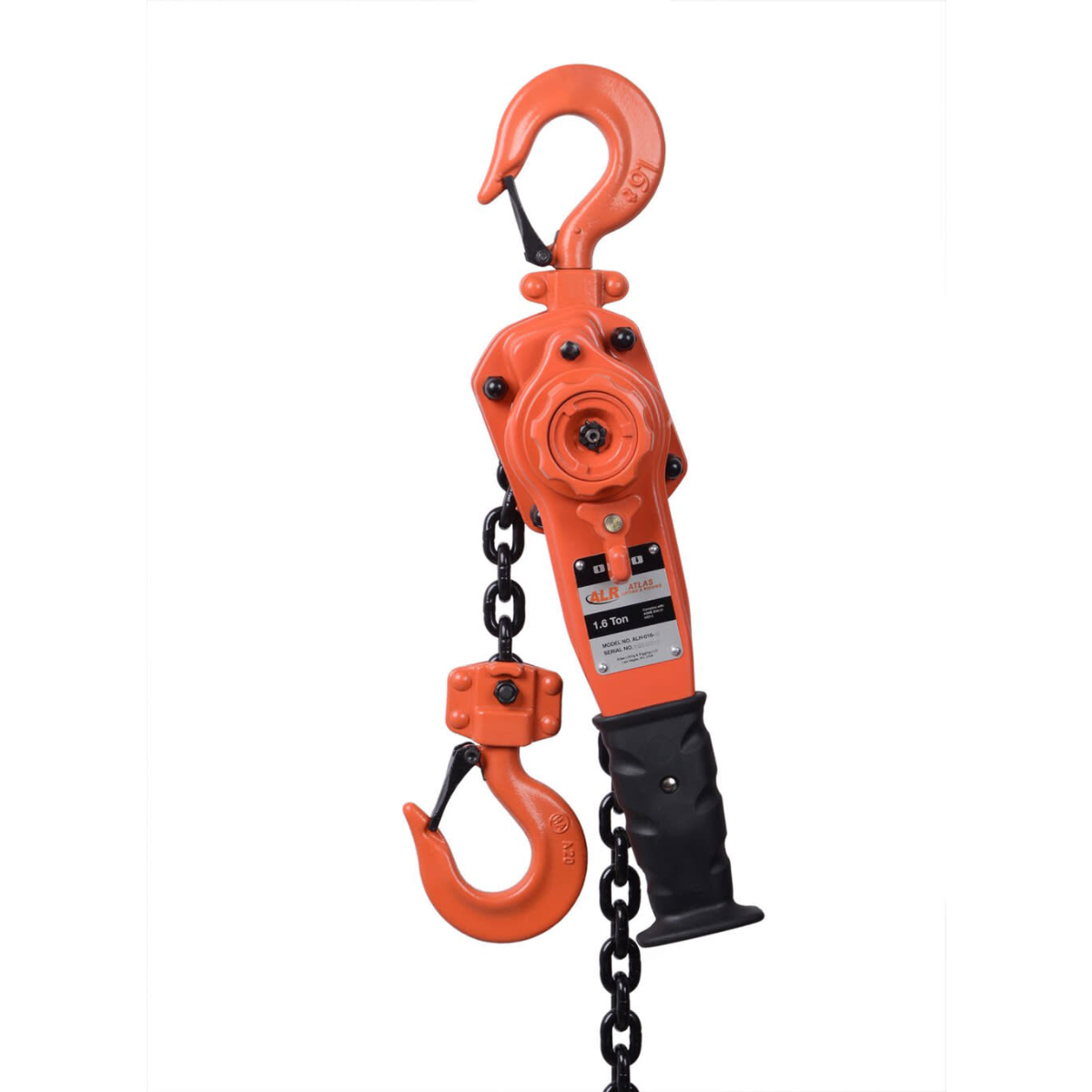

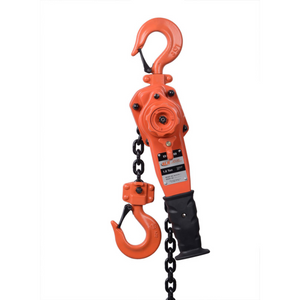

Atlas Lifting and Rigging ALH-016-05-SH Manual Lever Hoist with Ship Hooks
The ALH-016-05-SH is a heavy-duty manual lever hoist designed for 1.5-ton capacity applications where strength, reliability, and versatile rigging are essential. Outfitted with ship hooks, this model is ideal for marine, offshore, and industrial environments where wide-throat hook access and secure load engagement are critical.
With a 5-foot lift height, this hoist excels in lifting and pulling operations in close quarters. The forged ship hooks offer broader attachment options compared to standard hooks, enhancing utility in complex rigging setups. Built for industry with a steel frame and heat-treated alloy steel chain, this hoist is engineered to deliver long-term durability and performance in demanding conditions.
Key Features:
- 1.5-Ton Load Capacity: Reliable lifting for mid-range industrial and rigging tasks.

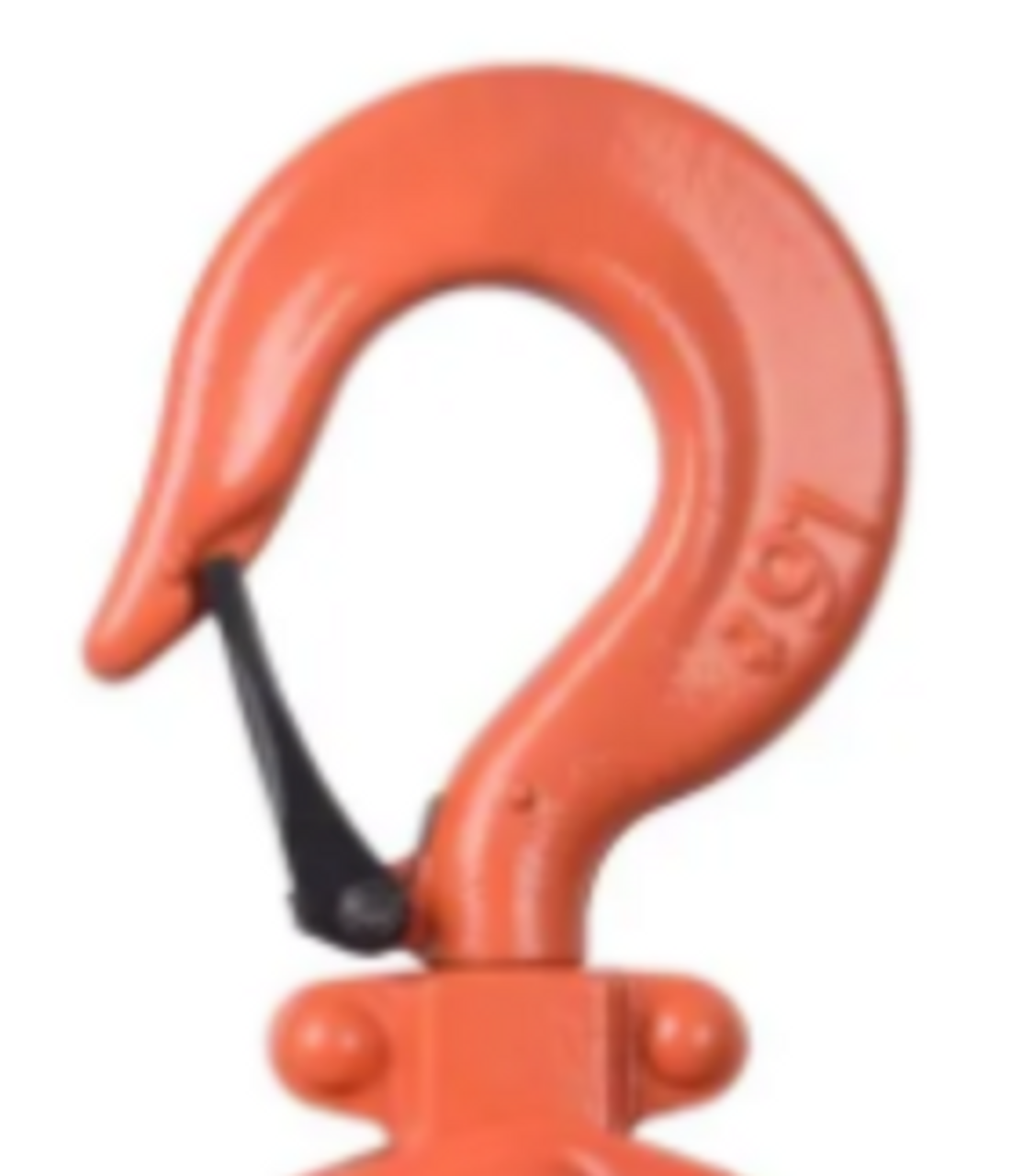

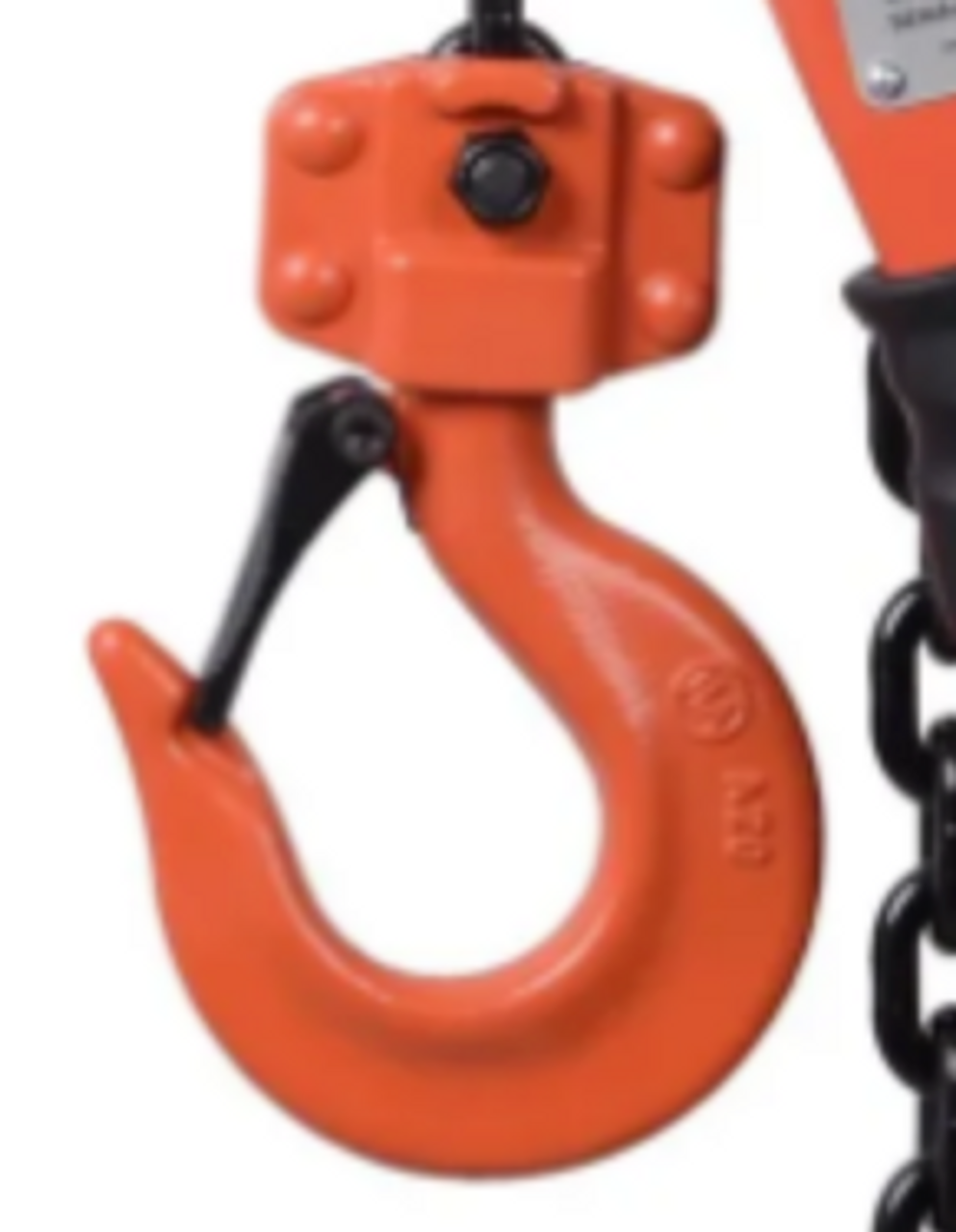

- Ship Hooks (SH): Wide-mouth forged hooks provide versatile, secure attachment in tight or irregular rigging situations.
- 5-Foot Lift Height: Compact and efficient for standard lifting applications.
- Heavy-Duty Steel Construction: Built to withstand harsh job site environments.
- Heat-Treated Alloy Steel Load Chain: Designed for strength, wear resistance, and longevity.
- Three-Mode Selector Switch: Enables easy transition between lifting, lowering, and free-chain positioning.
- Ergonomic Lever Handle: Provides comfort and smooth operation for the user.
Specifications:
- Model: ALH-016-05-SH
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 5 ft (1.5 m)
- Hook Type: Forged ship hooks with safety latches (wide-mouth style)
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 24 lbs (10.9 kg)
The Atlas ALH-016-05-SH is the dependable choice for professionals who need a tough, compact hoist with specialized hooks for advanced rigging and marine lifting applications.
