Product Overview

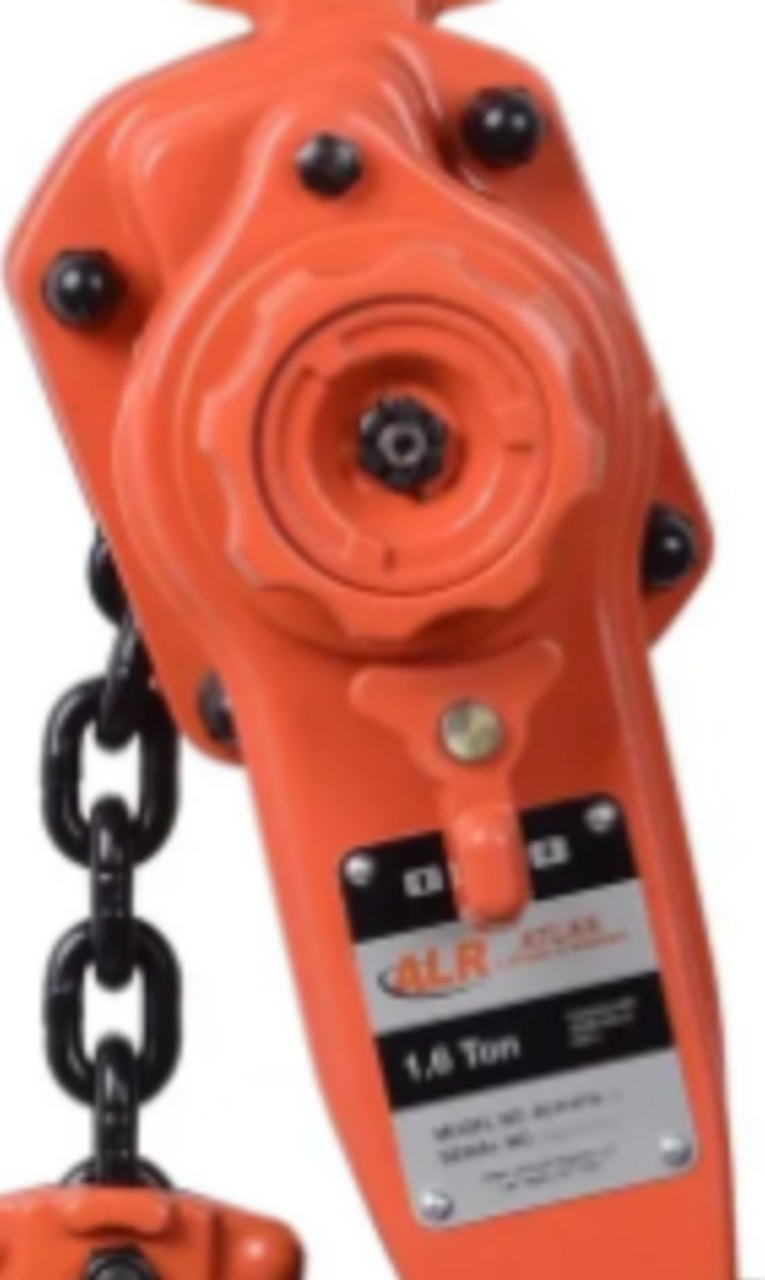

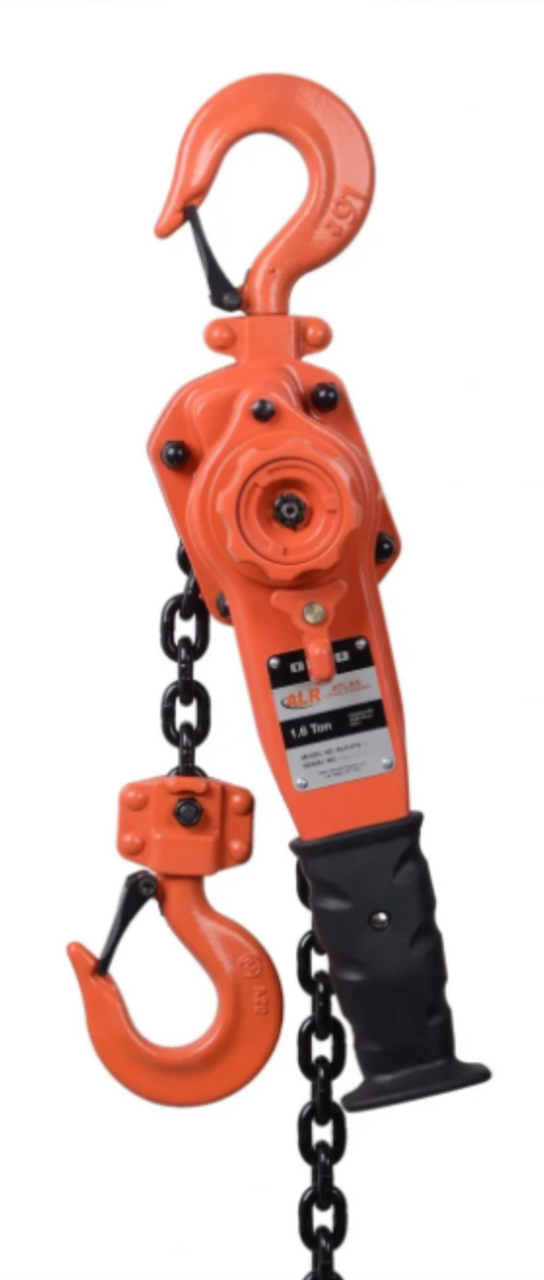

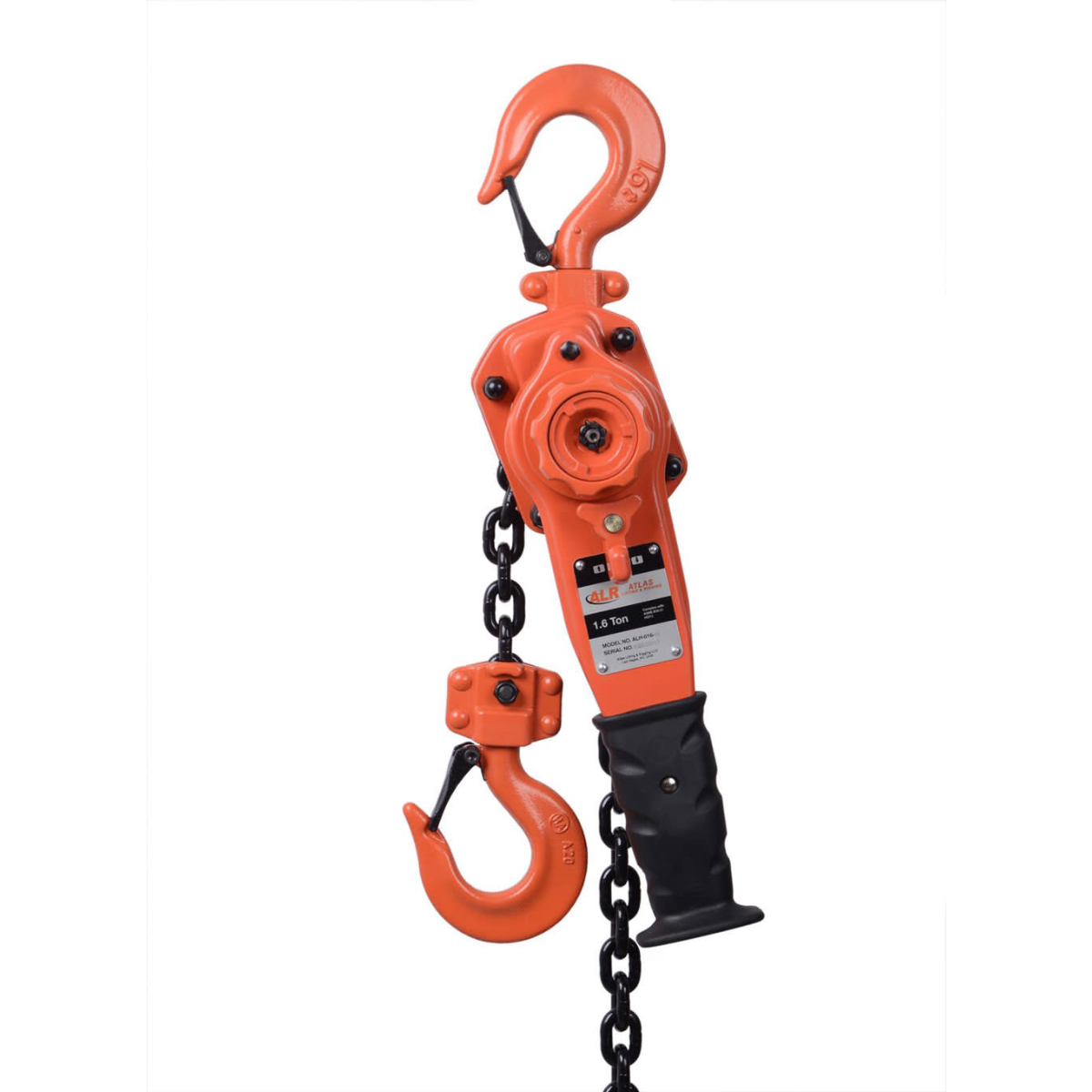

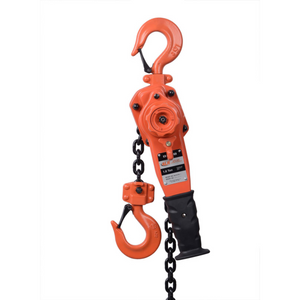

Atlas Lifting and Rigging ALH-016-10-SH Manual Lever Hoist with Ship Hooks
The ALH-016-10-SH lever hoist is built for high-performance lifting in marine, offshore, and industrial environments where durability and hook versatility matter. With a 1.5-ton (3,000 lbs) capacity and a 10-foot lift height, this hoist features forged ship hooks—wide-throat, heavy-duty hooks ideal for secure rigging in complex or variable anchor points.
Designed with a heavy-duty steel body and heat-treated alloy steel chain, the ALH-016-10-SH delivers strength and long-lasting performance under demanding conditions. Its ergonomic lever and smooth operation allow for controlled lifting, pulling, or tensioning, even in challenging or confined spaces.
Key Features:
- 1.5-Ton Load Capacity: Suitable for mid-capacity lifting and pulling operations.
- 10-Foot Lift Height: Provides extended reach for elevated or remote applications.

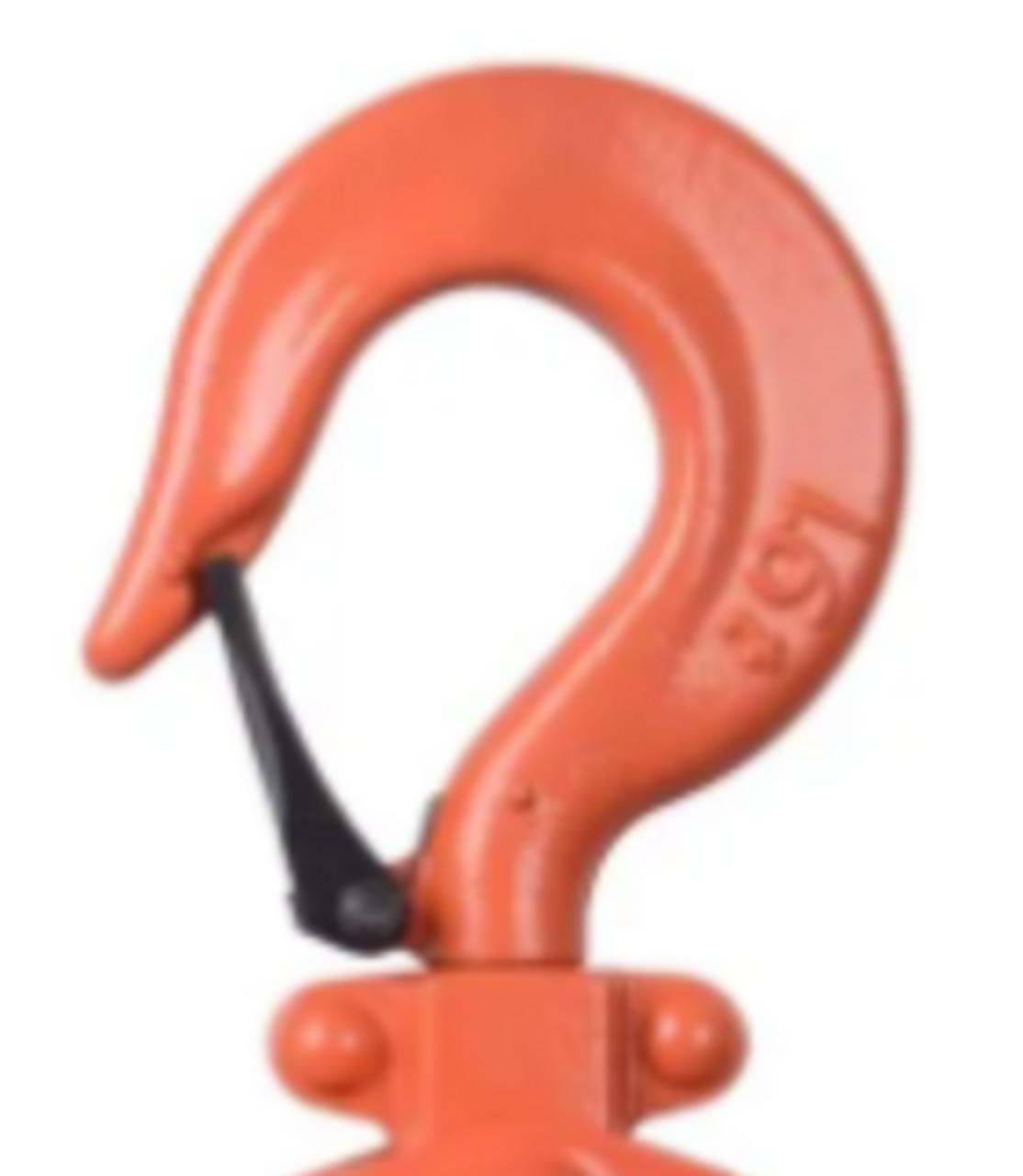

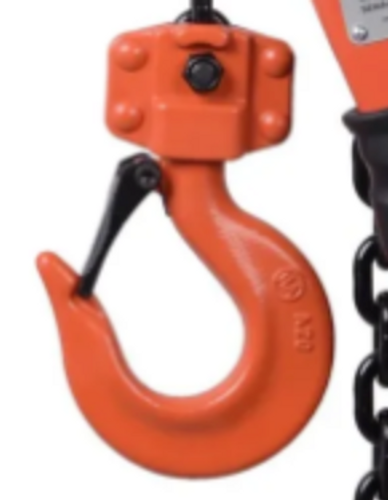

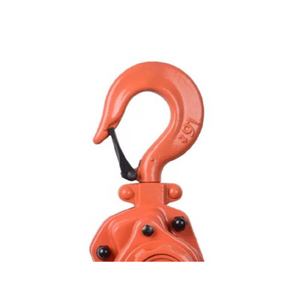

- Ship Hooks (SH): Wide-mouth forged hooks for enhanced load attachment flexibility.
- Durable Steel Construction: Withstands repeated use in tough environments.
- Heat-Treated Alloy Steel Chain: Engineered for strength, wear resistance, and long service life.
- Three-Mode Selector: Easily shifts between lifting, lowering, and free-chain modes.
- Ergonomic Lever Handle: Offers smooth and efficient operation with reduced operator fatigue.
Specifications:
- Model: ALH-016-10-SH
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 10 ft (3 m)
- Hook Type: Forged ship hooks with safety latches (wide-mouth design)
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 30 lbs (13.6 kg)
The Atlas ALH-016-10-SH is the trusted solution for professionals needing a reliable lever hoist with ship hooks, extended lift, and durable performance in the most demanding rigging environments.
