Product Overview

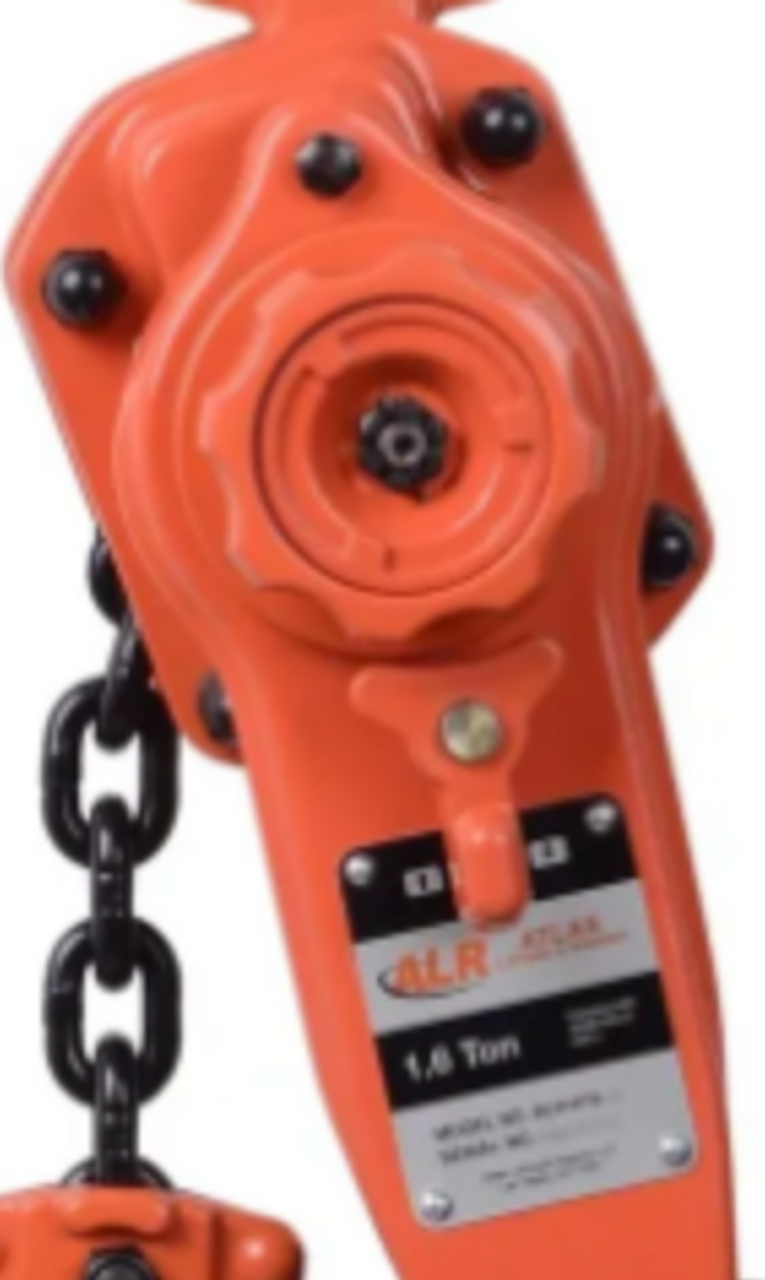

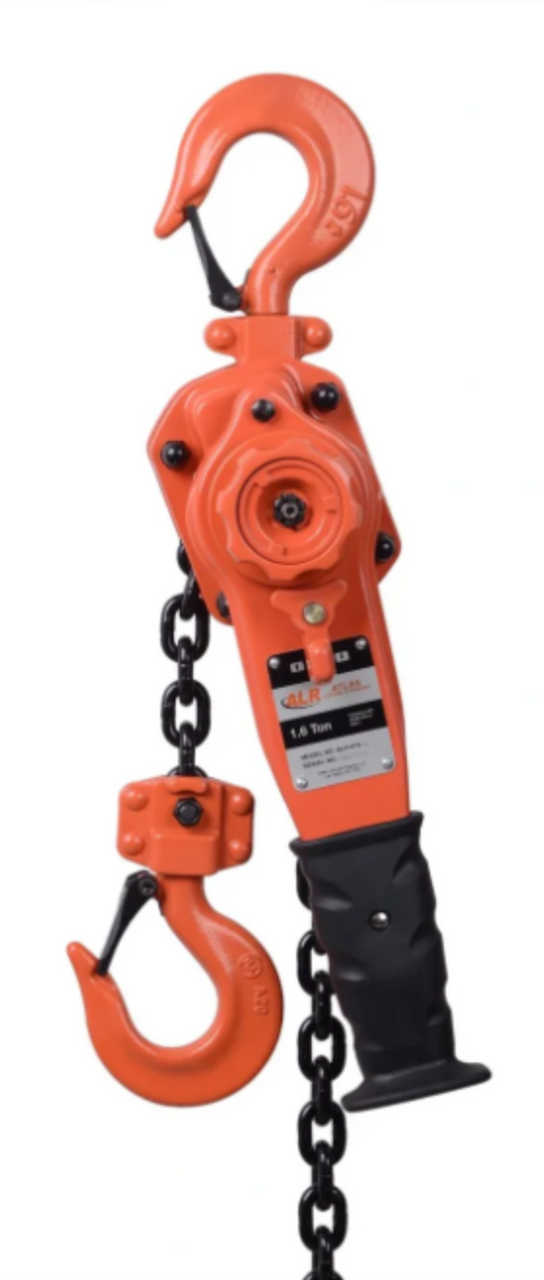

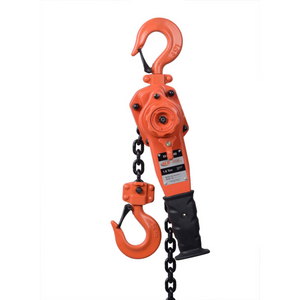

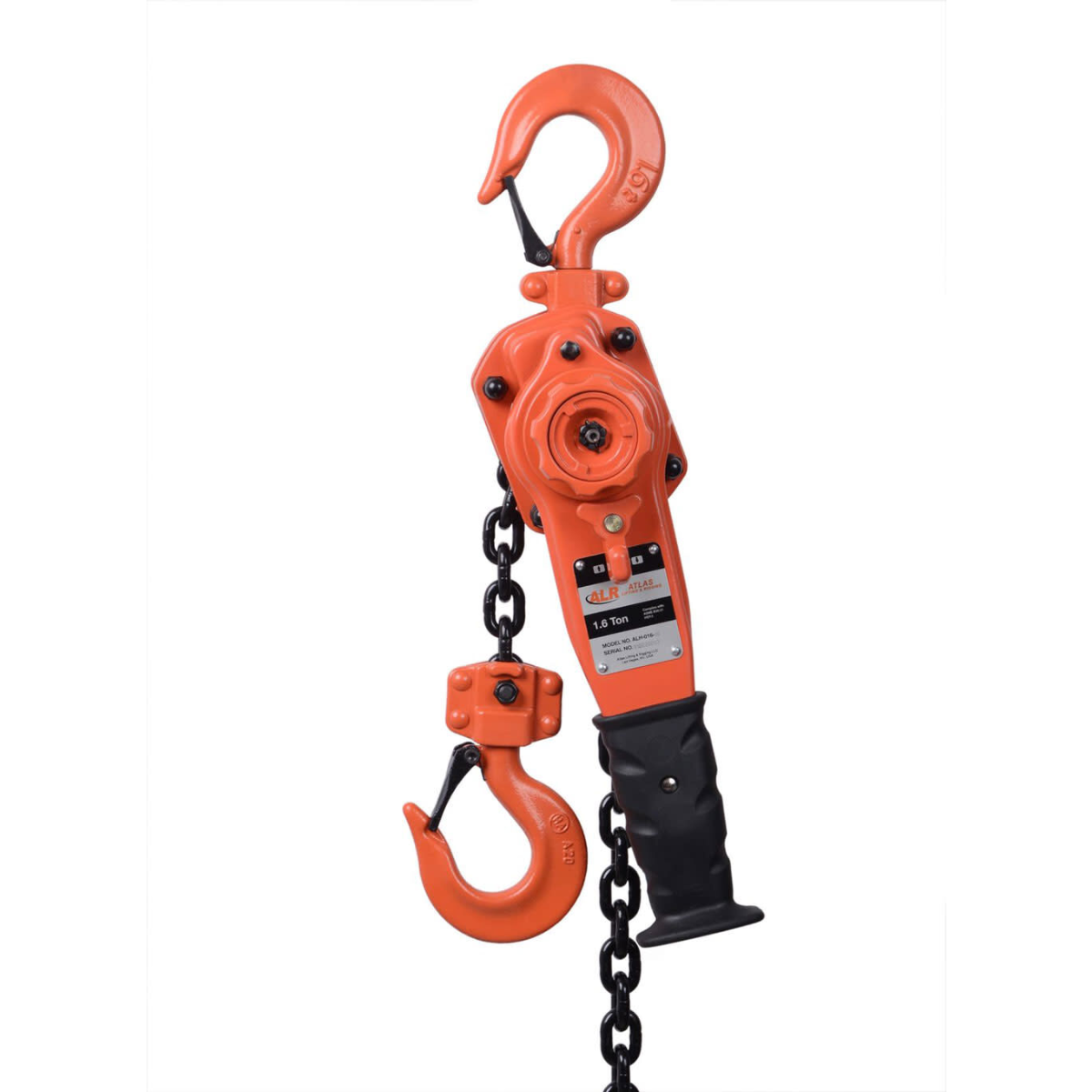

Atlas Lifting and Rigging ALH-016-10-OP-SH Manual Lever Hoist with Overload Protection and Ship Hooks
The ALH-016-10-OP-SH is a heavy-duty lever hoist designed for precision lifting, enhanced safety, and reliable performance in challenging industrial and marine environments. With a 1.5-ton capacity, 10-foot lift height, and mechanical overload protection, this hoist prevents overloading while maintaining consistent lifting performance.
Outfitted with forged ship hooks, the ALH-016-10-OP-SH allows secure and adaptable rigging across a variety of anchor points—making it a preferred tool in shipyards, offshore work, and construction settings. The rugged steel housing and heat-treated alloy steel chain ensure long-term strength, while the ergonomic handle design provides operator comfort and control.
Key Features:
- 1.5-Ton Load Capacity: Handles a wide range of lifting, pulling, and tensioning tasks.
- 10-Foot Lift Height: Suitable for elevated rigging or applications requiring longer reach.

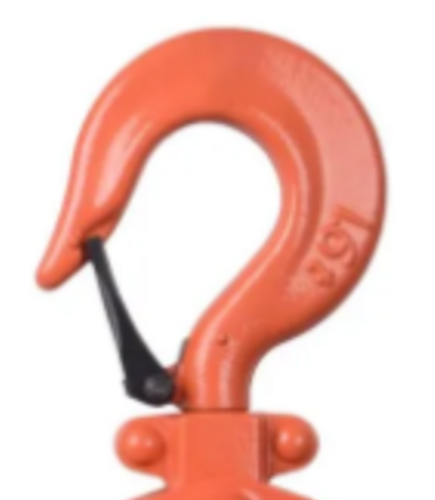

- Ship Hooks (SH): Wide-throat forged hooks enhance rigging flexibility and secure engagement.
- Mechanical Overload Protection: Built-in slip clutch mechanism prevents lifting beyond rated capacity.
- Heavy-Duty Steel Body: Withstands harsh jobsite conditions and frequent use.
- Heat-Treated Alloy Steel Chain: Durable and wear-resistant for demanding applications.
- Three-Mode Selector: Simple switch between lifting, lowering, and free-chain settings.
- Ergonomic Lever Handle: Enables smooth and efficient manual operation.
Specifications:
- Model: ALH-016-10-OP-SH
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 10 ft (3 m)
- Overload Protection: Mechanical slip clutch
- Hook Type: Forged ship hooks with safety latches (wide-mouth style)
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 31 lbs (14.1 kg)
The Atlas ALH-016-10-OP-SH combines safety, reach, and versatility—making it a great choice for professionals working in heavy-duty marine, rigging, and construction environments.
