Product Overview

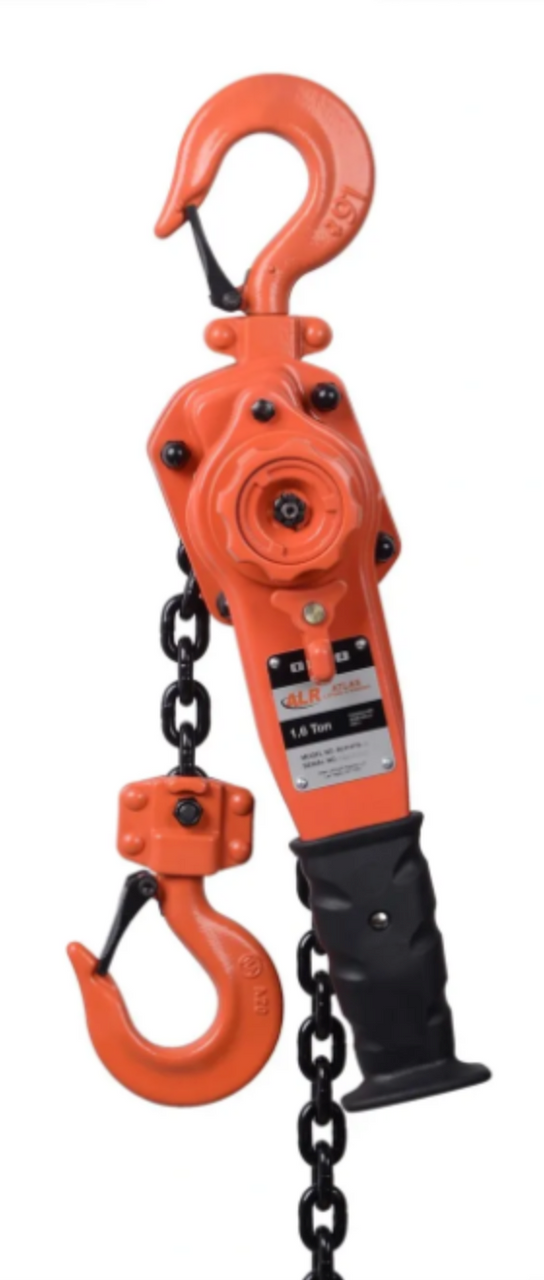

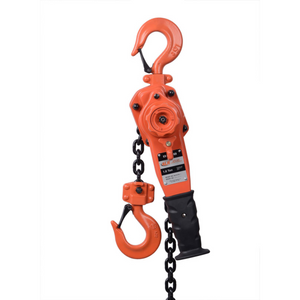

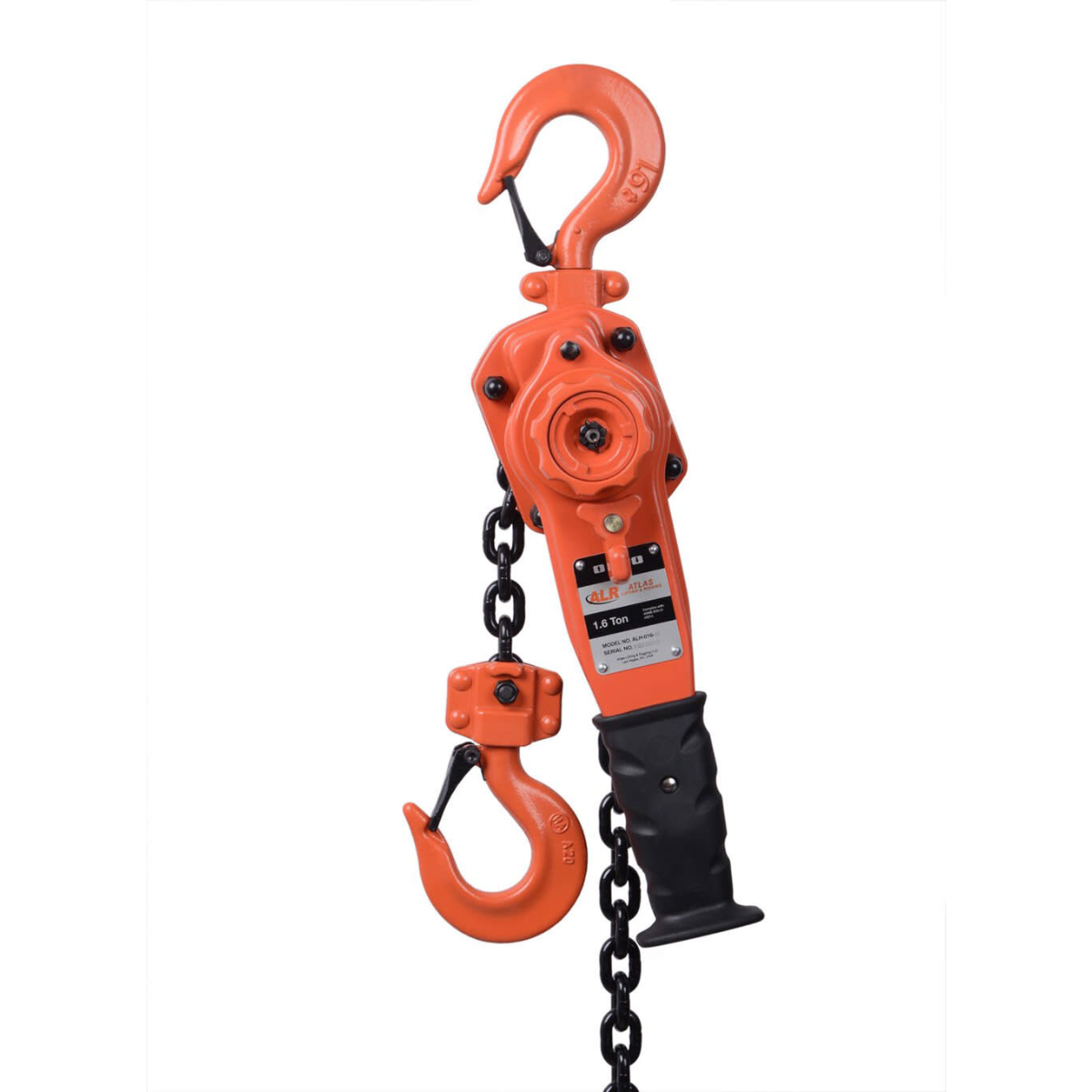

Atlas Lifting and Rigging ALH-016-15-OP-SH Manual Lever Hoist with Overload Protection and Ship Hooks
Engineered for critical lifting tasks in marine, industrial, and construction environments, the ALH-016-15-OP-SH lever hoist offers superior performance, extended reach, and built-in safety. With a 1.5-ton capacity, 15-foot lift height, and mechanical overload protection, it’s designed to protect both operator and equipment during demanding operations.
This model features forged ship hooks, providing wide-throat openings for more versatile and secure rigging on irregular or oversized anchor points. The durable steel frame and heat-treated alloy steel chain ensure dependable operation in harsh conditions, while the ergonomic handle makes manual use comfortable and efficient.
Key Features:
- 1.5-Ton Load Capacity: Mid-range lifting power for a wide variety of jobsite needs.
- 15-Foot Lift Height: Extended reach for elevated or hard-to-access loads.

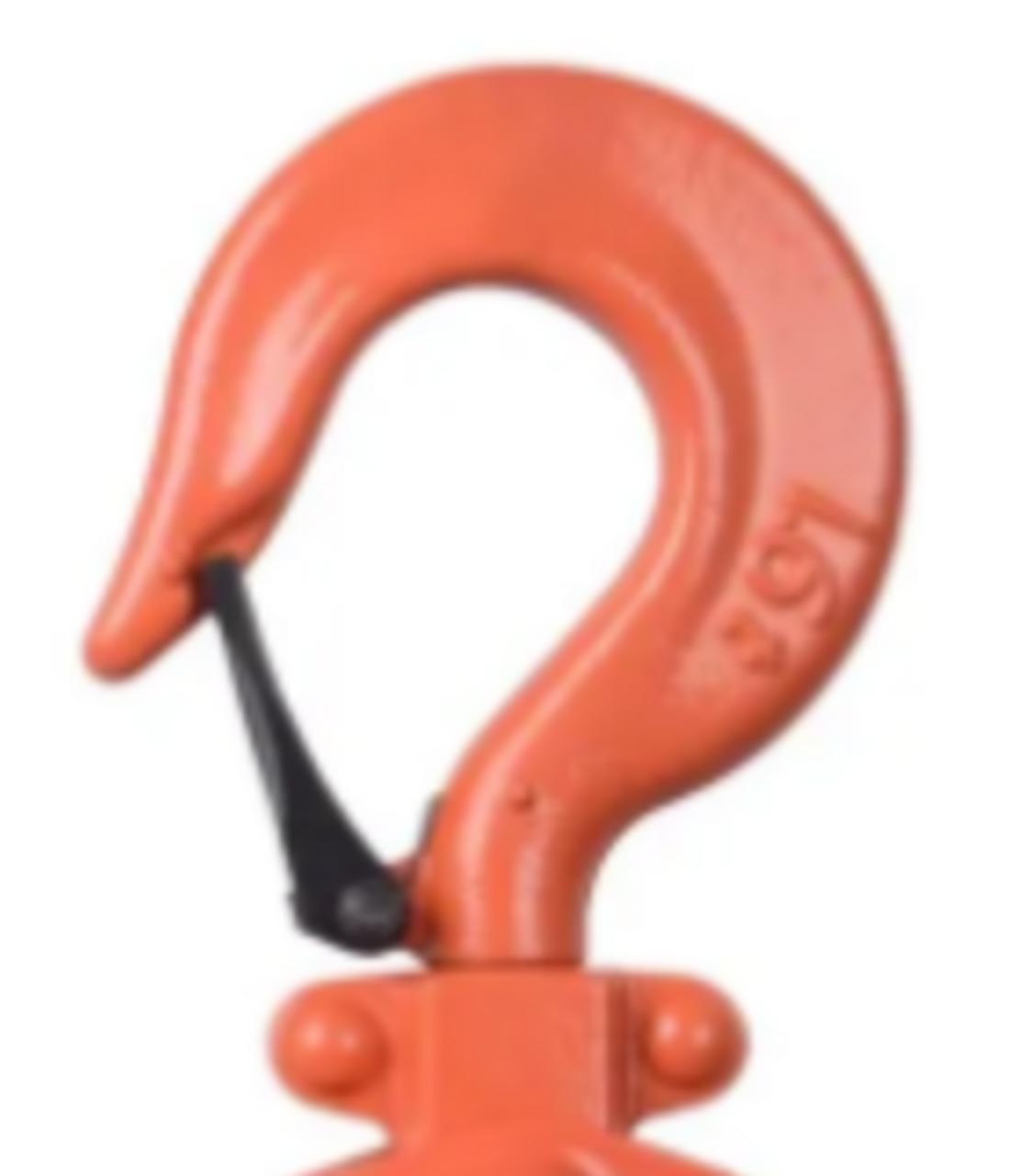

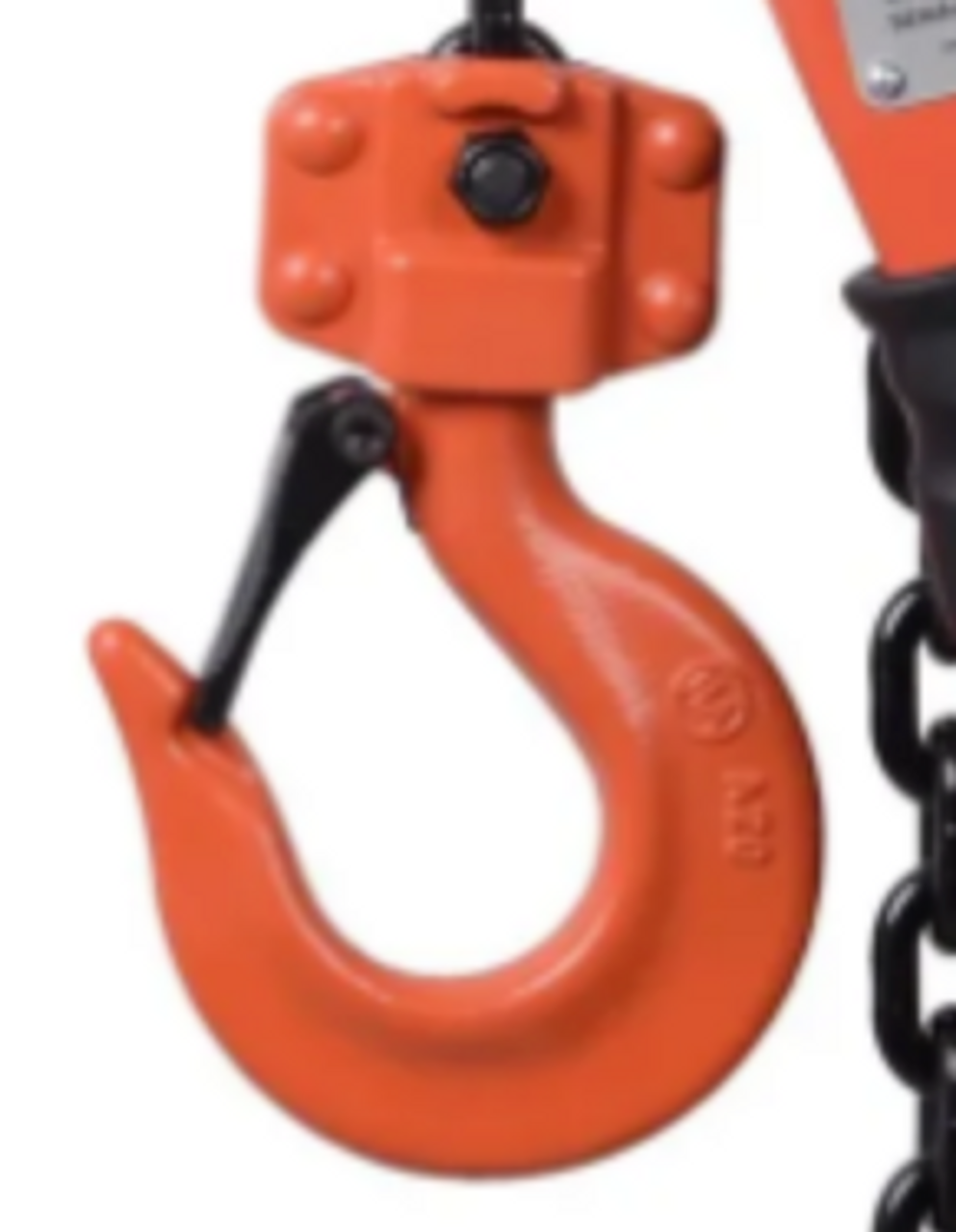

- Ship Hooks (SH): Wide-mouth forged hooks ideal for complex rigging setups.
- Integrated Overload Protection: Built-in slip clutch prevents lifting beyond rated capacity.
- Heavy-Duty Steel Construction: Built for endurance in rugged environments.
- Heat-Treated Alloy Steel Chain: Delivers long service life and consistent strength.
- Three-Mode Selector: Quick transition between lifting, lowering, and free-chaining.
- Ergonomic Lever Handle: Provides smooth, controlled operation with reduced effort.
Specifications:
- Model: ALH-016-15-OP-SH
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 15 ft (4.6 m)
- Overload Protection: Mechanical slip clutch
- Hook Type: Forged ship hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Lever Handle Length: Approx. 14 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 37 lbs (16.8 kg)
The Atlas ALH-016-15-OP-SH is the professional-grade choice when safety, lifting reach, and hook versatility are essential—perfect for shipyards, offshore work, and elevated industrial rigging.
