Product Overview

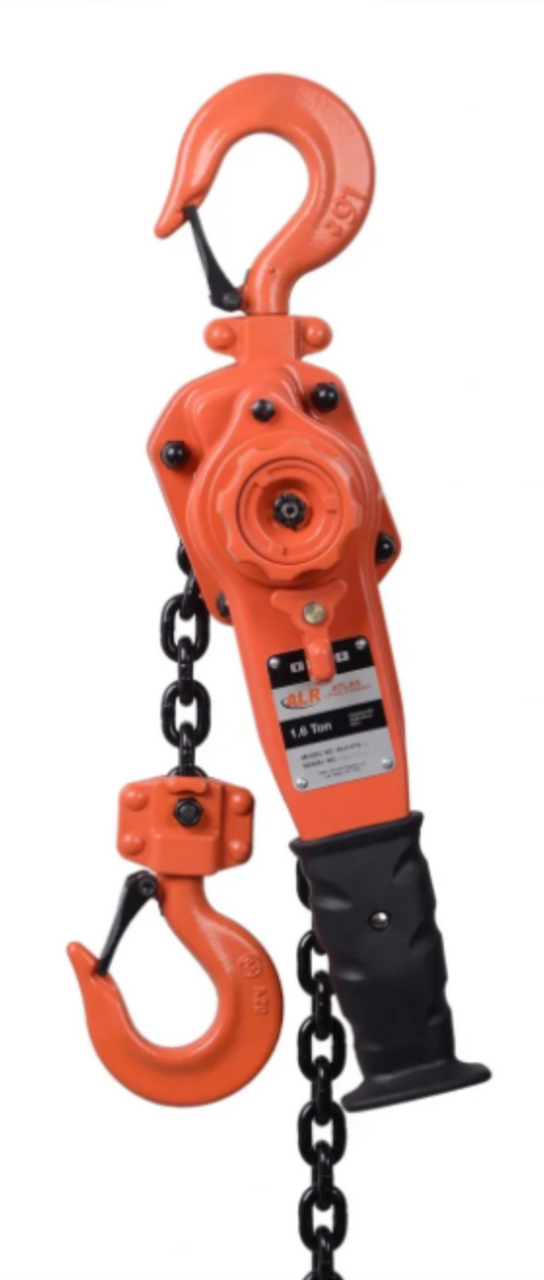

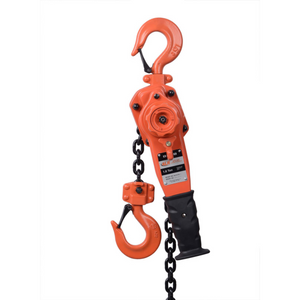

Atlas Lifting and Rigging ALH-016-05-OP-SH Manual Lever Hoist with Overload Protection and Ship Hooks
The ALH-016-05-OP-SH is engineered for strength, safety, and versatility in demanding lifting environments. With a 1.5-ton (3,000 lbs) capacity, 5-foot lift height, and mechanical overload protection, this lever hoist delivers reliable performance and built-in safety for industrial, marine, and rigging applications. The addition of ship hooks—a wide-mouth, heavy-duty hook style—provides greater reach and easier engagement with anchor points, often preferred in shipyard, offshore, and marine operations.
The hoist features a rugged steel frame, heat-treated alloy steel chain, and ergonomic controls, ensuring smooth and consistent operation even under heavy use. Mechanical overload protection automatically limits excessive force, preventing potential damage to equipment and/or operators.
Key Features:
- 1.5-Ton Load Capacity with Overload Protection: The integrated slip clutch engages under overload conditions to protect the operator and load.

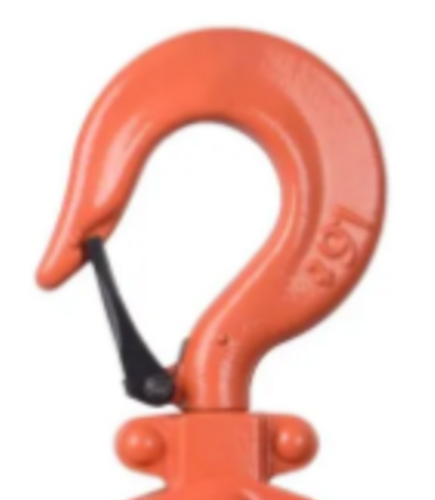

- Ship Hooks (SH): Wide-mouth forged hooks designed for secure and versatile attachment, ideal for maritime and offshore work.
- 5-Foot Lift Height: Suitable for general-purpose lifting and positioning tasks.
- Durable Steel Housing: Withstands harsh environments and repeated use.
- Heat-Treated Alloy Steel Chain: Provides strength, durability, and resistance to wear.
- Three-Mode Selector: Enables easy switching between lifting, lowering, and free-chain modes.
- Ergonomic Lever Operation: Designed for control and comfort during extended use.
Specifications:
- Model: ALH-016-05-OP-SH
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 5 ft (1.5 m)
- Hook Type: Forged ship hooks with safety latches (wide-mouth style)
- Overload Protection: Mechanical slip clutch
- Load Chain: Heat-treated alloy steel
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 25 lbs (11.3 kg)
The Atlas ALH-016-05-OP-SH offers enhanced rigging flexibility with its ship hook design, combined with proven strength and safety features—perfect for marine, shipyard, and general industrial lifting.
