Product Overview

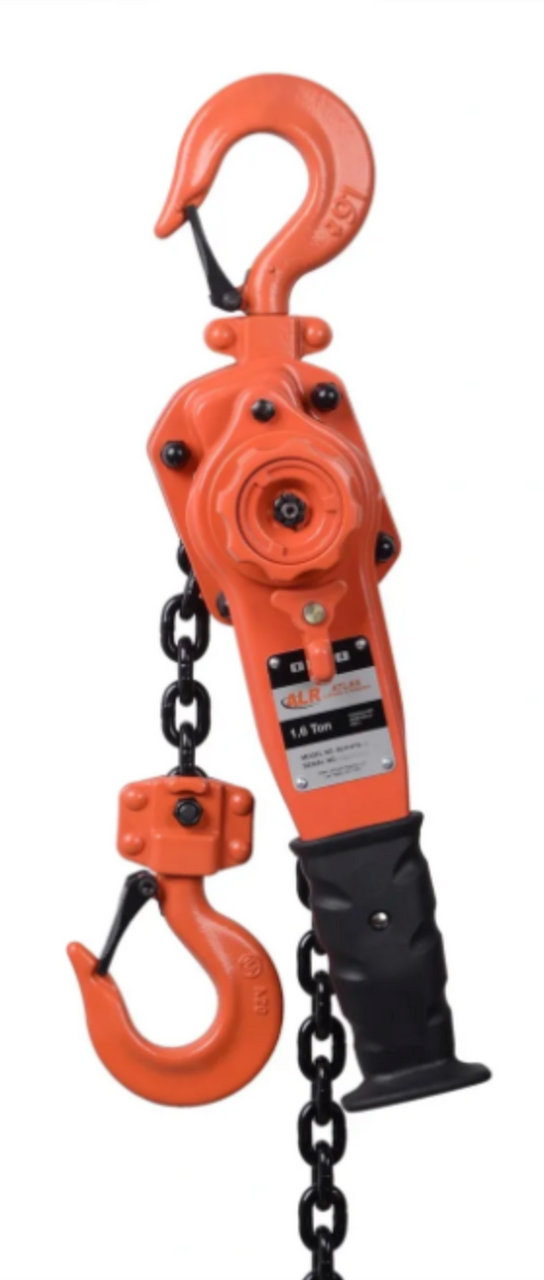

Atlas Lifting and Rigging ALH-016-20-SH Lever Hoist with Ship Hooks
The ALH-016-20-SH is designed for extended-reach lifting in demanding rigging environments where secure, wide-mouth hook connections are needed. With a 1.5-ton (3,000 lbs) capacity and an extended 20-foot lift height, this model is equipped with forged ship hooks that allow for easy attachment to structural beams, anchor points, and non-standard rigging locations.
Built to perform under rugged conditions, the hoist features a durable steel body, heat-treated alloy steel load chain, and a reliable manual lifting mechanism. It’s a go-to solution for marine, offshore, and industrial fieldwork where versatility and strength are essential.
Key Features:
- 1.5-Ton Load Capacity: Suitable for general lifting, pulling, and tensioning applications.
- 20-Foot Lift Height: Ideal for high-clearance or elevated rigging setups.

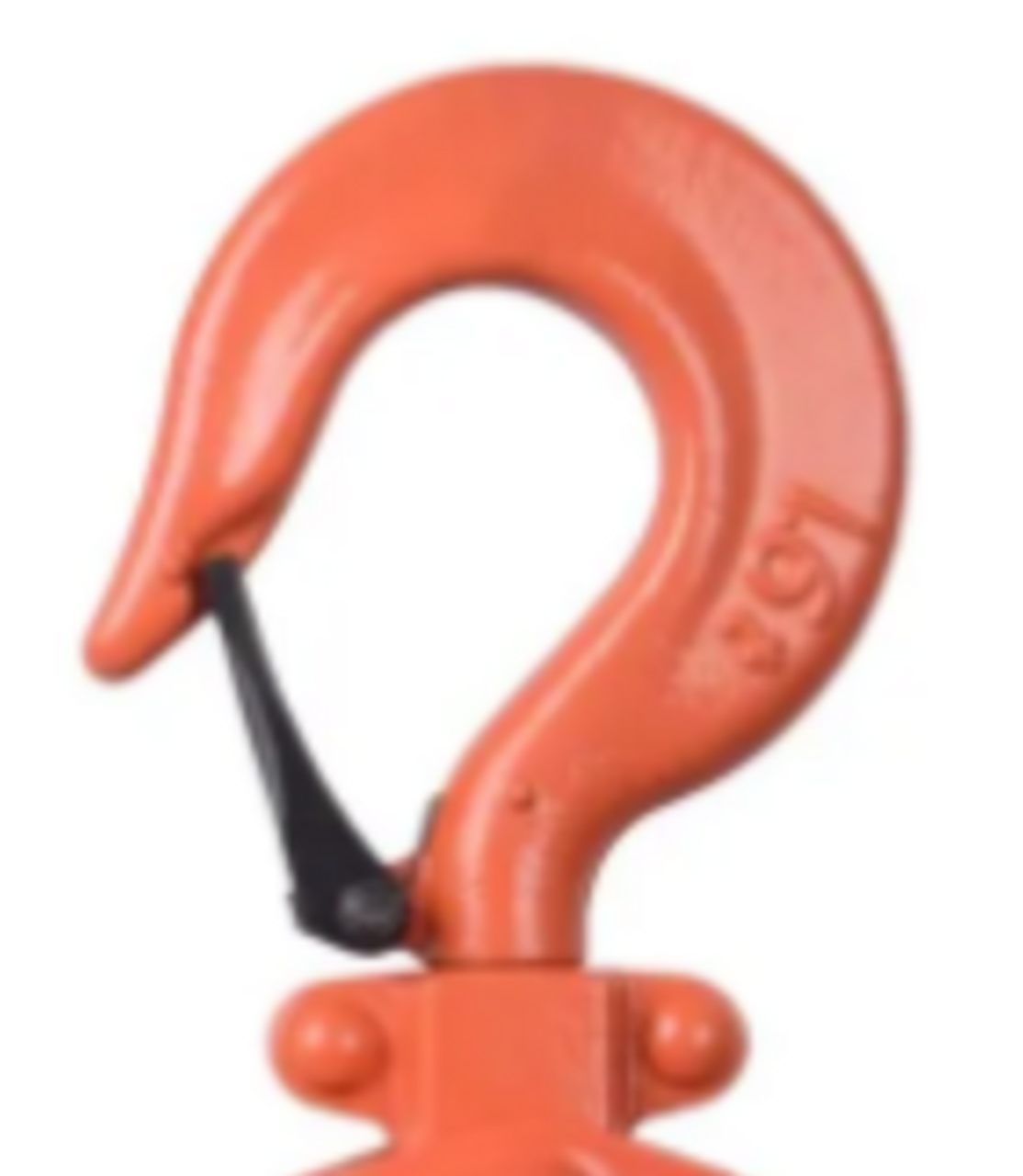

- Ship Hooks (SH): Forged wide-throat hooks designed for irregular or oversized attachment points.

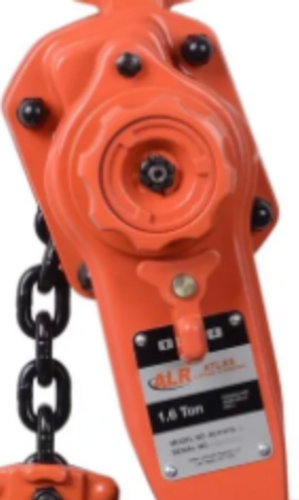

- Rugged Steel Housing: Withstands harsh job site and field conditions.
- Alloy Steel Chain: Heat-treated for strength, durability, and wear resistance.

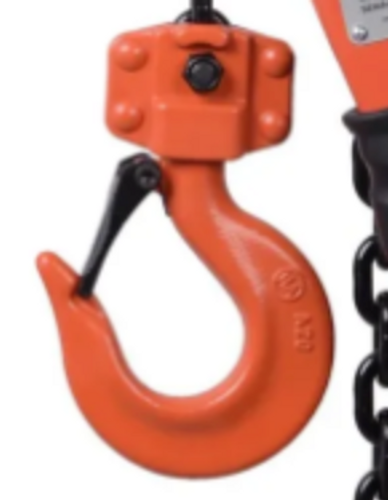

- Swivel Hook Design: Allows for better positioning and load alignment.
- Three-Position Selector Switch: Effortless control between lift, lower, and free-chain modes.
- Ergonomic Handle: Designed for comfort and efficient manual operation.
Specifications:
- Model: ALH-016-20-SH
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 20 ft (6.1 m)
- Hook Type: Forged ship hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Overload Protection: Not included
- Lever Handle Length: Approx. 14 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 44 lbs (20 kg)
The Atlas ALH-016-20-SH delivers trusted performance and versatile hook engagement for professionals working in structural, marine, or non-standard rigging applications.
