Product Overview

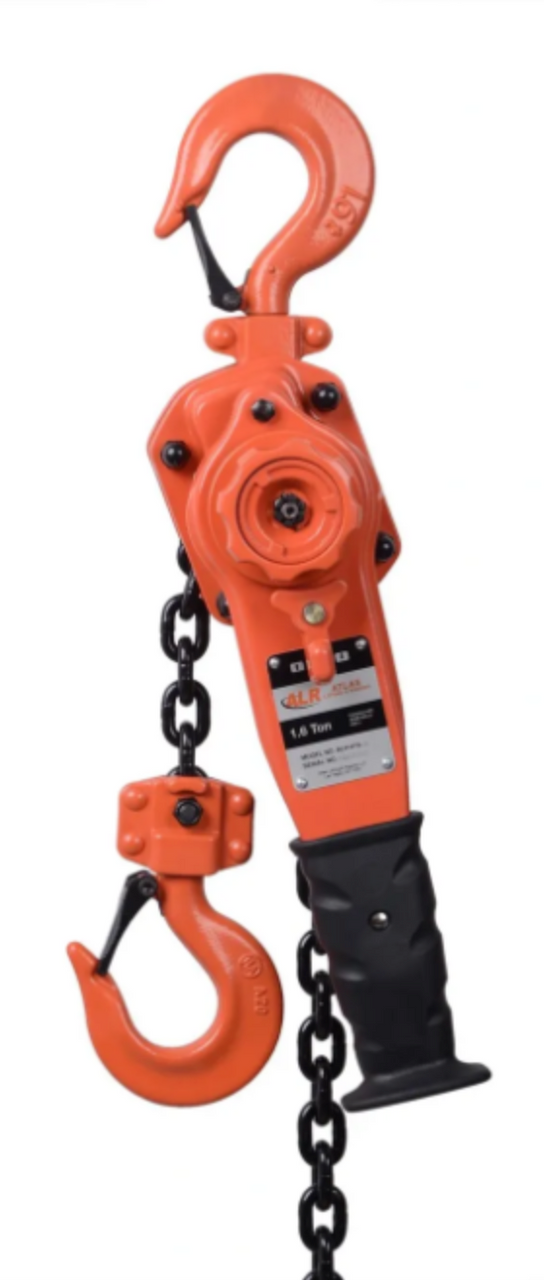

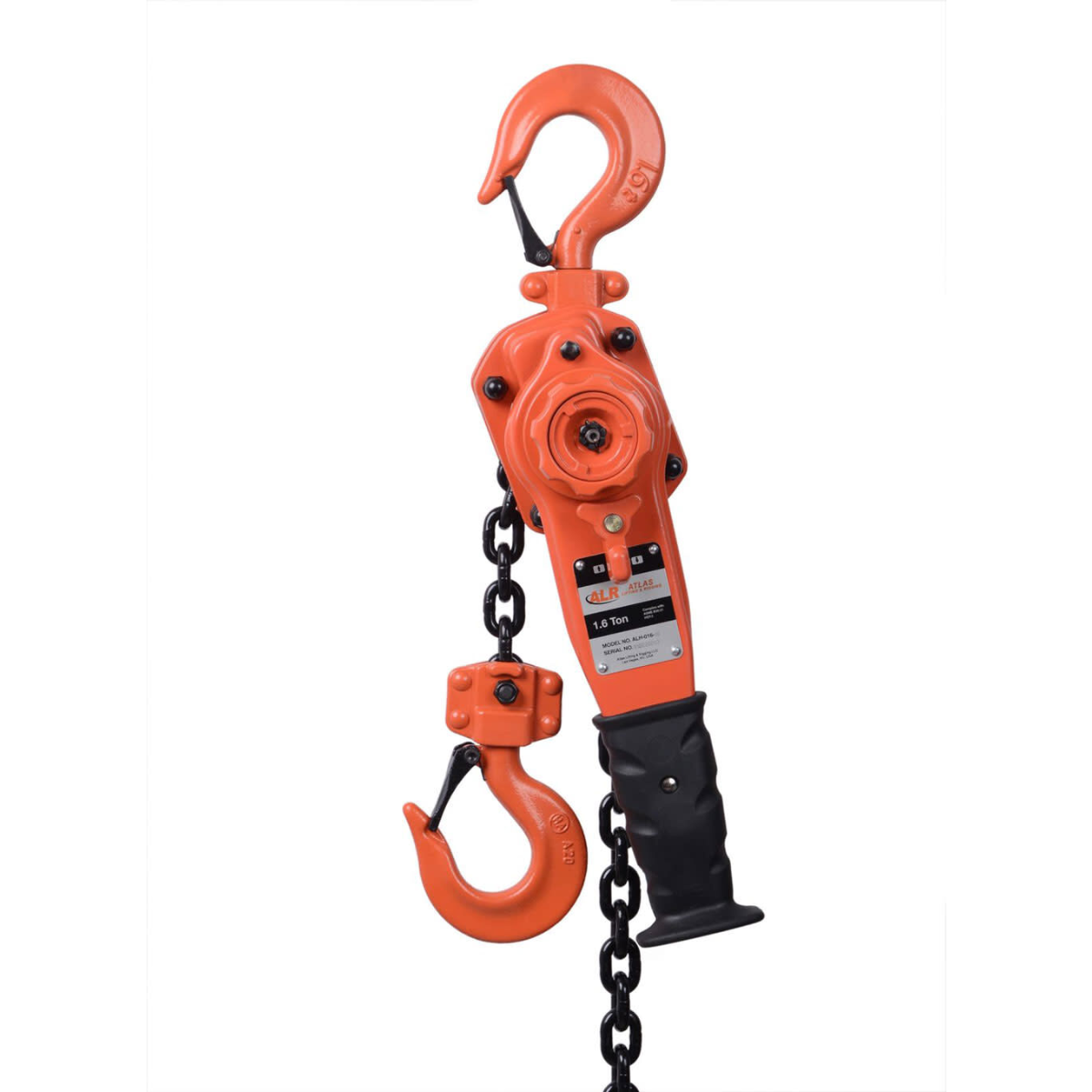

Atlas Lifting and Rigging ALH-016-30 Manual Lever Hoist
The ALH-016-30 is engineered for high-reach lifting with reliable performance and rugged construction. With a 1.5-ton (3,000 lbs) load capacity and an extended 30-foot lift height, this hoist is ideal for tall structures, remote rigging points, and overhead lifts requiring substantial vertical reach.
Built for industry with a forged steel frame and heat-treated alloy load chain, the hoist ensures dependable operation under heavy use. Swivel hooks with safety latches offer secure, flexible attachment, while the compact lever design provides easy manual control in tight or elevated work areas.
Key Features:
- 1.5-Ton Load Capacity: Strong, reliable lifting for a wide range of applications.
- 30-Foot Lift Height: Long chain length for high-clearance rigging or tall equipment lifts.

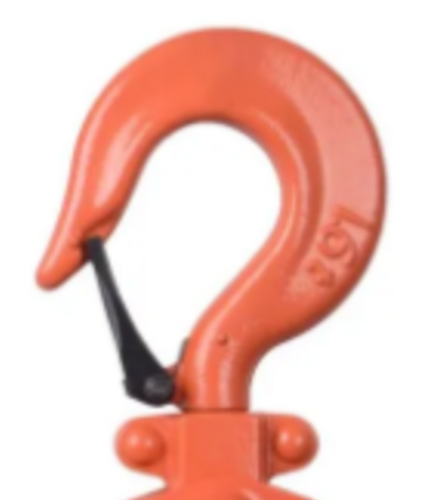

- Swivel Hooks with Safety Latches: Secure and adaptable for various anchor points.
- Durable Steel Housing: Withstands demanding work environments and jobsite abuse.
- Alloy Steel Load Chain: Heat-treated for maximum strength and wear resistance.
- Free-Chaining Mode: Allows for quick chain adjustment before tension is applied.
- Three-Position Selector: Simple operation for lifting, lowering, and neutral/free chain settings.
- Ergonomic Lever Handle: Balanced for comfort and reduced operator fatigue.
Specifications:
- Model: ALH-016-30
- Capacity: 1.5 Tons (3,000 lbs / 1,360 kg)
- Lift Height: 30 ft (9.1 m)
- Hook Type: Forged swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Overload Protection: Not included
- Lever Handle Length: Approx. 14 inches
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 54 lbs (24.5 kg)
The Atlas ALH-016-30 is a robust solution for professionals who need extended reach and consistent performance in structural, industrial, or construction applications.
