Product Overview

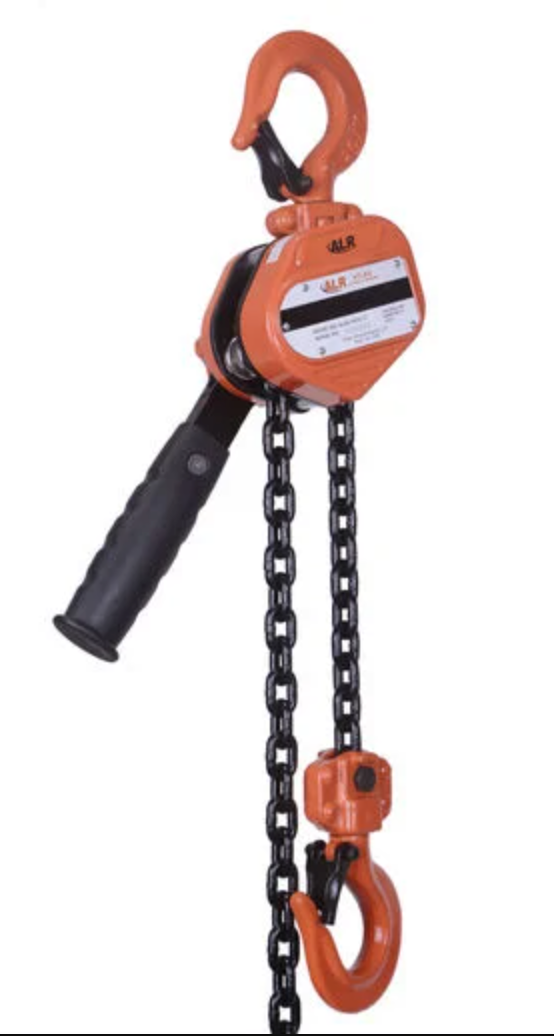

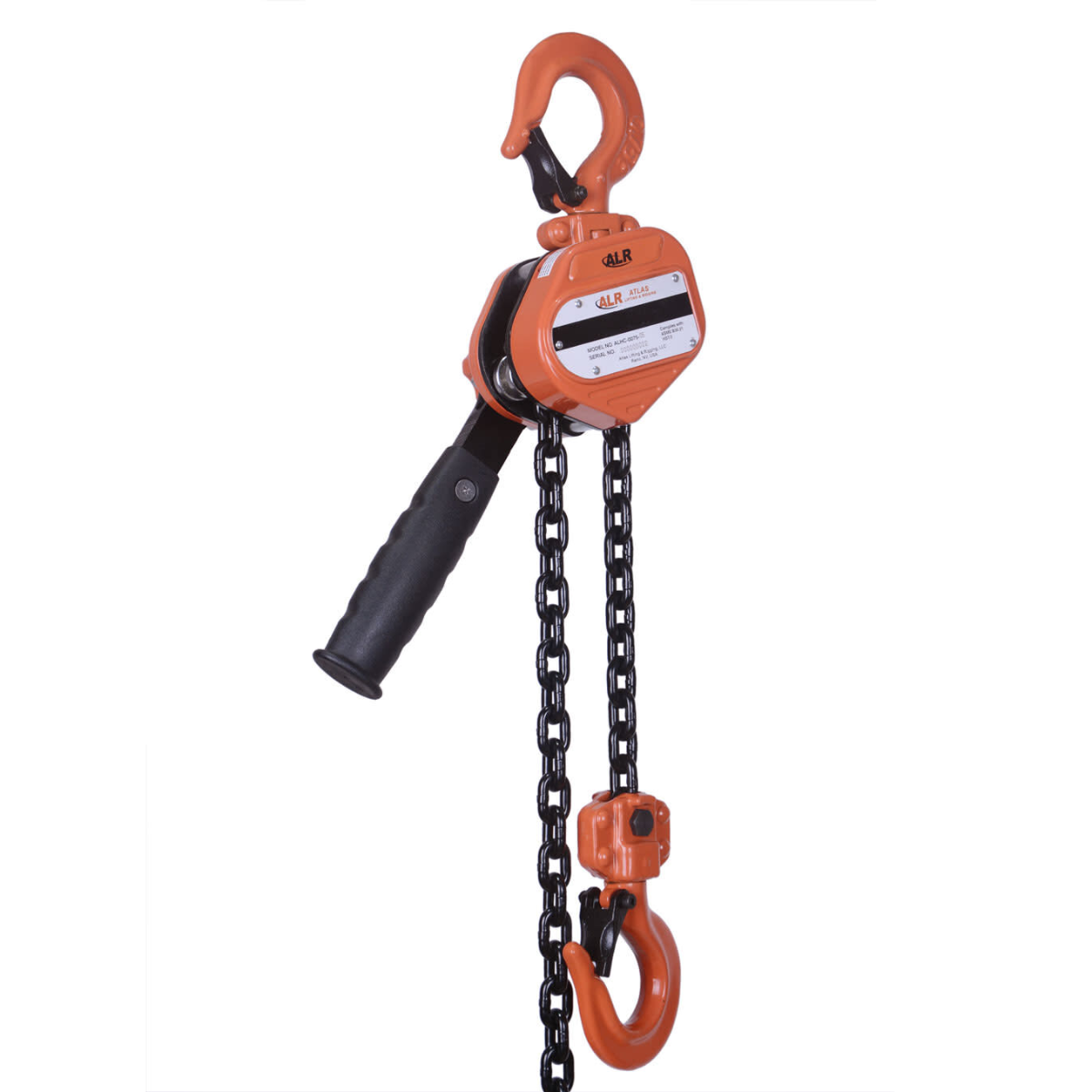

Atlas Lifting and Rigging ALHC-0050-10 Compact Lever Hoist
Designed for extended reach and rugged reliability, the ALHC-0050-10 lever hoist combines strength and precision in a lightweight, compact format. With a 0.5-ton (1,000 lbs) lifting capacity and a 10-foot lift height, this hoist provides dependable performance in light- to medium-duty applications where additional chain length is essential.
Its robust steel housing, ergonomic handle, and free-chaining function make it well-suited for rigging, field repair, and maintenance work in tight or elevated environments.
Key Features:
- 0.5-Ton Capacity: Ideal for lifting and tensioning smaller loads with reliable control.
- 10-Foot Lift Height: Provides added vertical reach for greater versatility on the job.
- Compact & Lightweight: Built for easy transport and confined space use.
- Free-Chaining Mechanism: Allows for fast, tool-free slack chain adjustment.
- Forged Alloy Swivel Hooks: Rotate freely and include safety latches for a secure connection.
- Durable Steel Construction: Designed for long-term use in industrial environments.
Specifications:
- Model: ALHC-0050-10
- Capacity: 0.5 Ton (1,000 lbs / 454 kg)
- Lift Height: 10 ft (3.0 m)
- Hook Type: Forged alloy swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Free Chaining: Yes
- Body Material: Steel
- Lever Handle Length: Approx. 9 inches
- Net Weight: Approx. 12.9 lbs (5.8 kg)
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
The Atlas ALHC-0050-10 delivers strength, safety, and versatility in a reliable and portable design — ideal for lifting, pulling, or securing loads where extended lift and compact size are critical.
