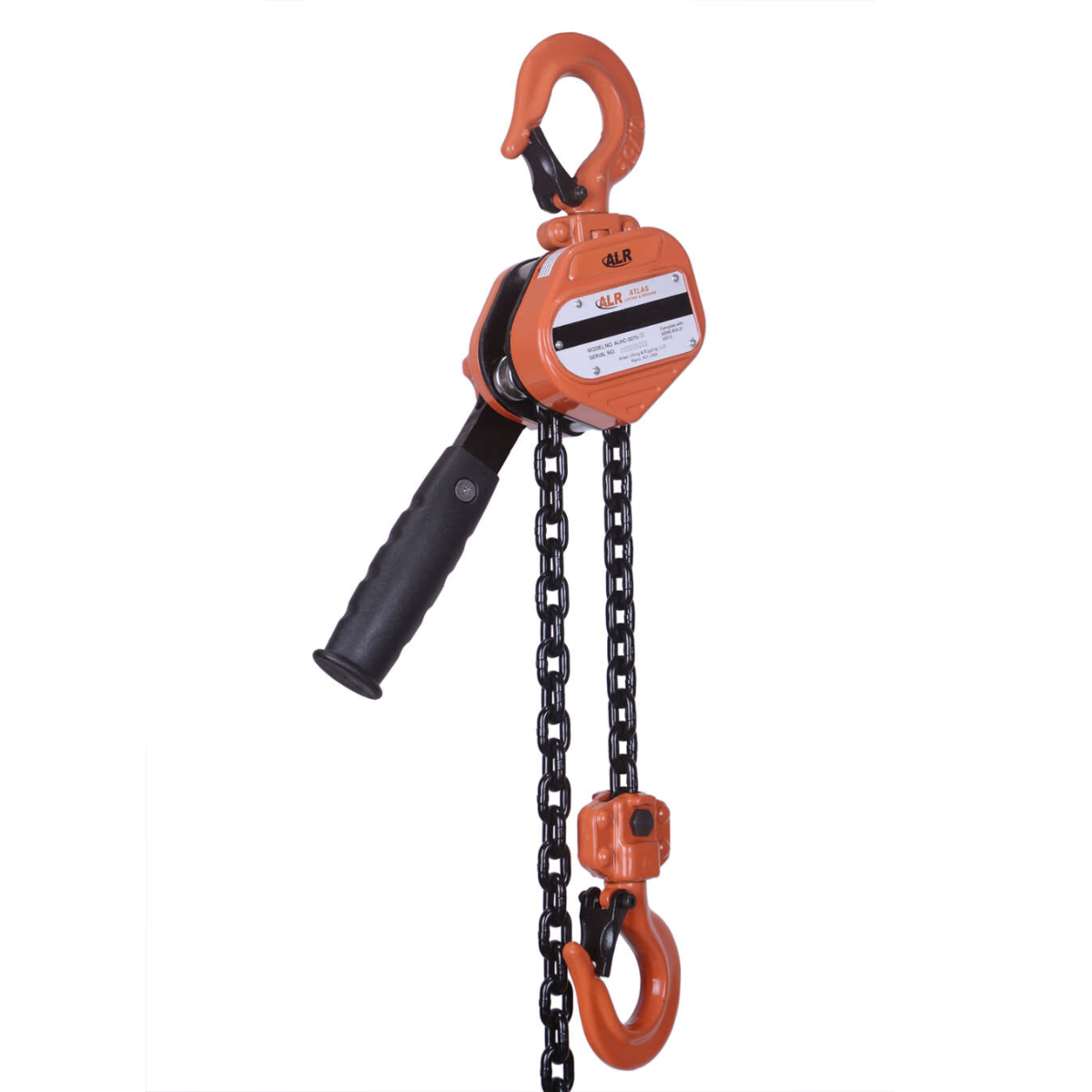

Atlas Lifting and Rigging ALHC-0025-10 Compact Lever Hoist

The ALHC-0025-10 lever hoist combines ultra-compact design with extended lifting reach, offering a 0.25-ton (500 lbs) capacity and a 10-foot lift height. Engineered for portability and precision, this hoist is ideal for tight spaces, overhead tasks, or environments where control and light weight are essential—such as HVAC installation, equipment setup, and rigging in confined industrial areas.

Despite its small size, the hoist is built with durable steel housing, forged alloy swivel hooks, and a heat-treated alloy steel chain. The sleek lever and free-chaining capability make it easy to operate and position.

Key Features:

• 0.25-Ton Capacity: Lightweight lifting solution for precise positioning and pulling.
• 10-Foot Lift Height: The extended chain length provides greater vertical flexibility.
• Compact Design: Designed for tight spaces and toolkits.
• Free-Chaining Feature: Allows quick slack chain adjustment for faster setup.
• Forged Swivel Hooks with Safety Latches: Secure, 360° rotating attachment points.
• Rugged Construction: Steel body and alloy components withstand demanding environments.
• Smooth, Ergonomic Lever: Designed for efficient, controlled operation.

Specifications:

• Model: ALHC-0025-10
• Capacity: 0.25 Ton (500 lbs / 227 kg)
• Lift Height: 10 ft (3.0 m)
• Hook Type: Forged alloy swivel hooks with safety latches
• Load Chain: Heat-treated alloy steel
• Free Chaining: Yes
• Body Material: Steel housing
• Lever Handle Length: Approx. 6 inches
• Net Weight: Approx. 5.5 lbs (2.5 kg)
• Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)

The Atlas ALHC-0025-10 compact lever hoist is ideal for professionals who require extended reach in a small, reliable lifting device. Its long chain length and durable construction make it a versatile addition to any rigging toolkit.
