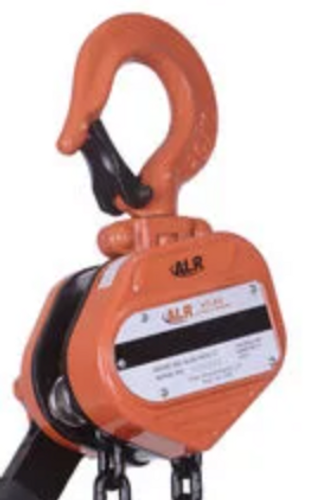

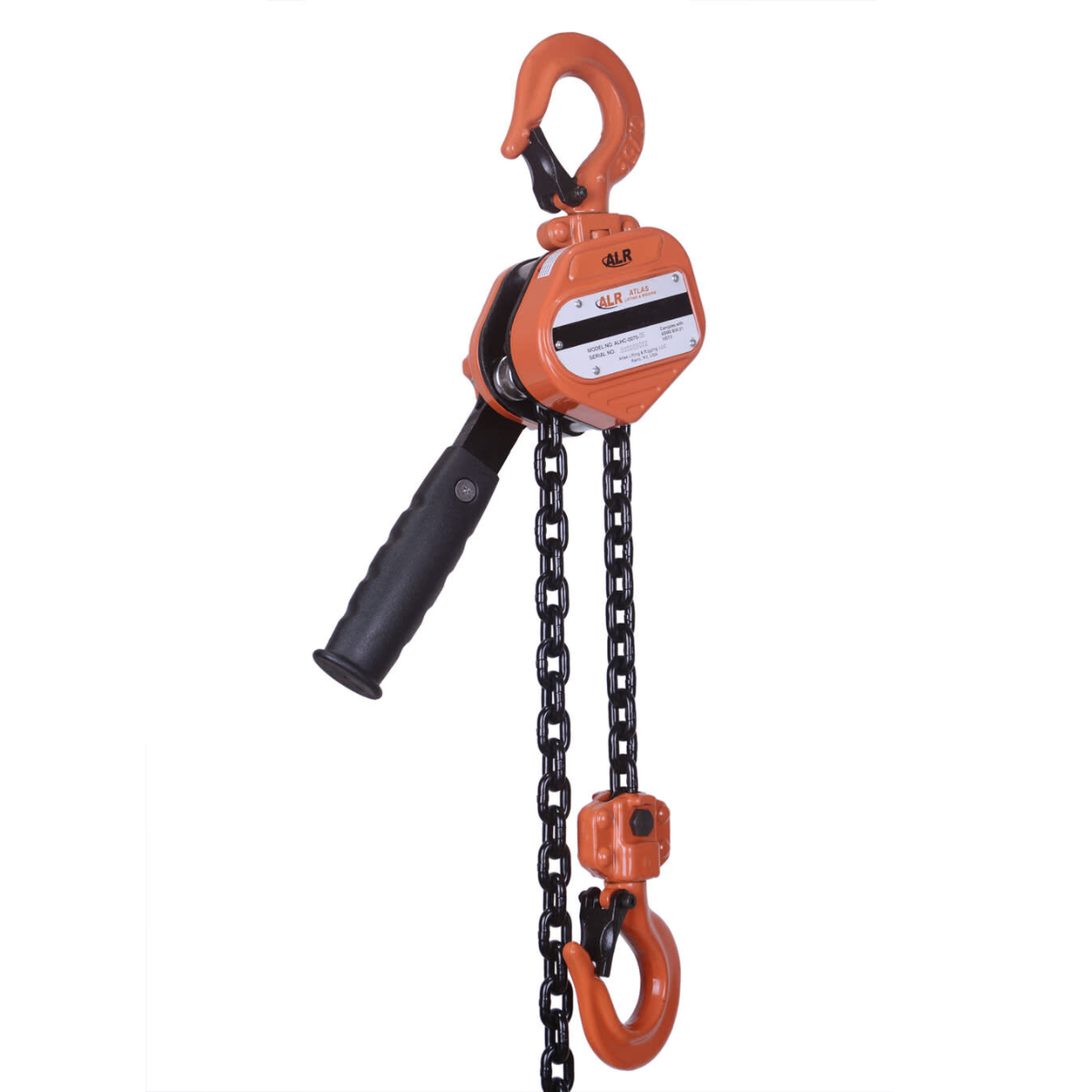

Atlas Lifting and Rigging ALHC-0025-05 Compact Lever Hoist
The ALHC-0025-05 compact lever hoist is engineered for precision lifting, pulling, and tensioning in tight or confined spaces. With a 0.25-ton (500 lbs) working load limit and a 5-foot lift height, it is ideal for low-capacity, high-control tasks such as positioning machinery, maintenance applications, and rigging in overhead spaces.
Built for industry with lightweight yet durable materials, this compact hoist features a smooth-operating gear system, forged swivel hooks, and a user-friendly handle for effortless control. Its small form factor and easy portability make it a perfect fit for toolboxes, service trucks, and on-the-go job sites.
Key Features:
- 0.25-Ton Capacity: Ideal for precision lifting, adjustment, and light-duty rigging.
- 5-Foot Lift Height: Standard chain length for general-purpose applications.
- Compact & Lightweight: Easy to handle and transport; suitable for overhead or space-limited tasks.
- Free-Chaining Feature: Rapid chain positioning for efficient setup.
- Forged Swivel Hooks with Safety Latches: Rotating hooks provide secure, versatile connection points.
- Ergonomic Lever Handle: Designed for smooth, controlled operation with minimal effort.
- Durable Construction: All-steel body and high-strength alloy chain for consistent, long-term performance.
Specifications:
- Model: ALHC-0025-05
- Capacity: 0.25 Ton (500 lbs / 227 kg)
- Lift Height: 5 ft (1.5 m)
- Hook Type: Forged alloy swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Free Chaining: Yes
- Body Material: Steel housing
- Lever Handle Length: Approx. 6 inches
- Net Weight: Approx. 4.4 lbs (2 kg)
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
The Atlas ALHC-0025-05 is the go-to choice for professionals needing a reliable, compact lever hoist that delivers performance in confined or lightweight applications.
