Product Overview

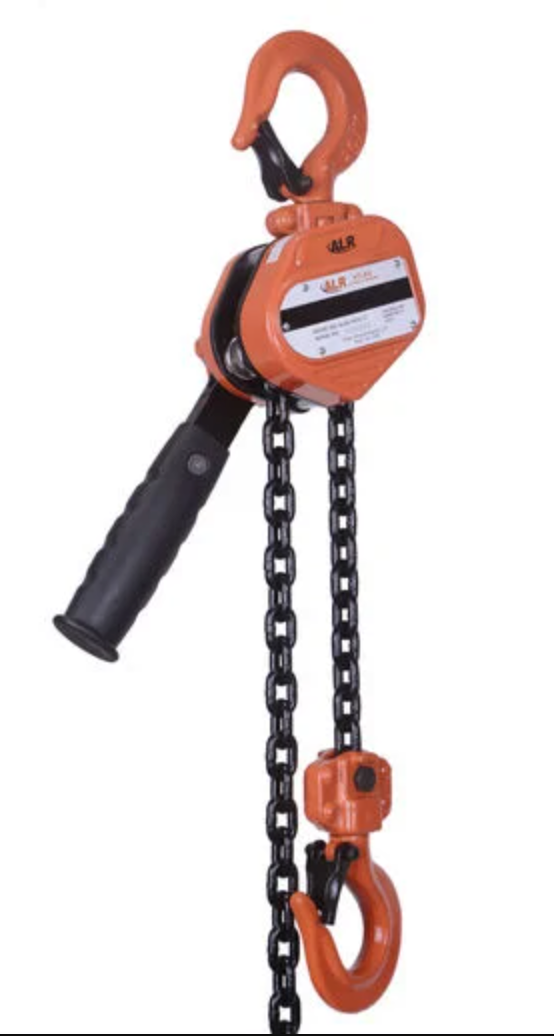

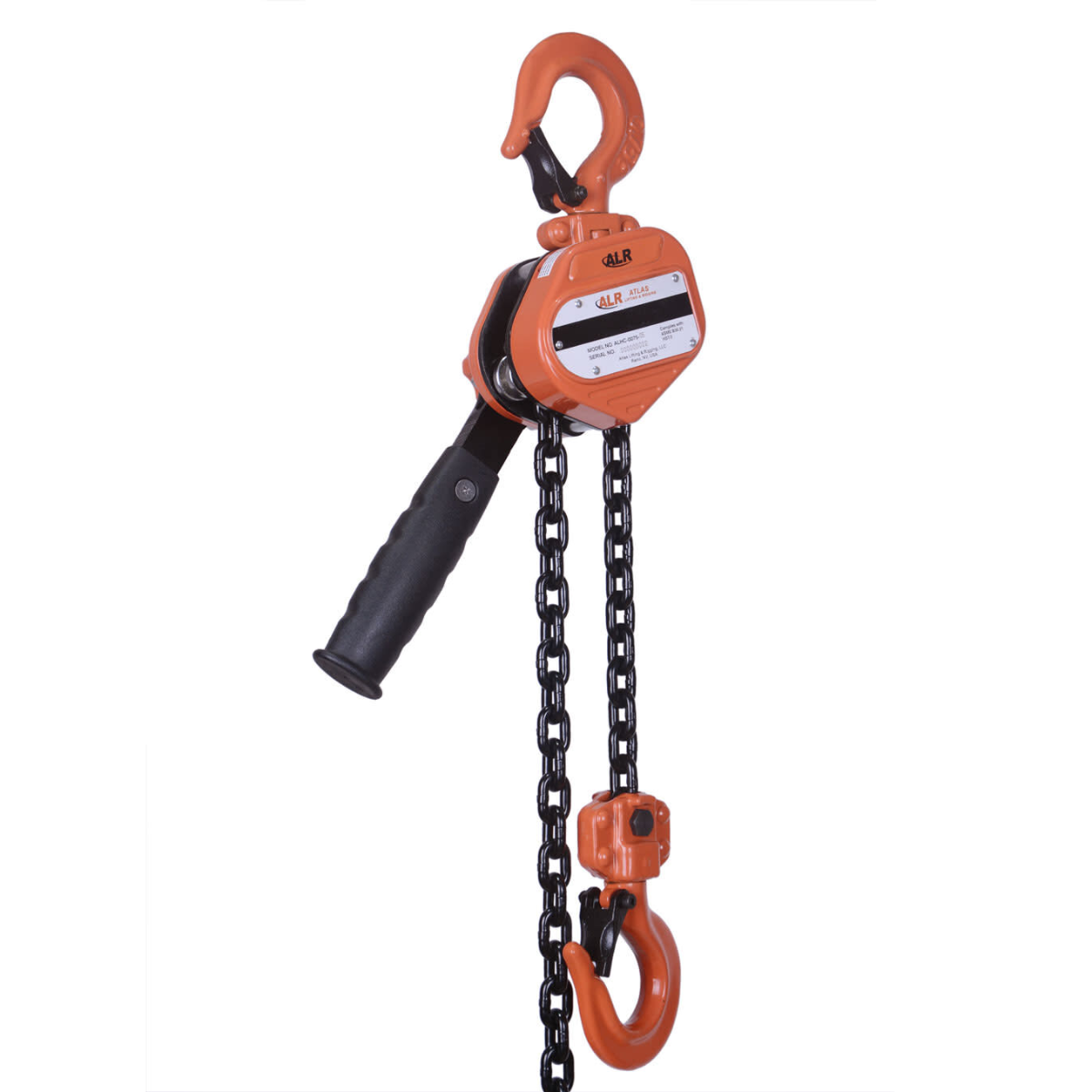

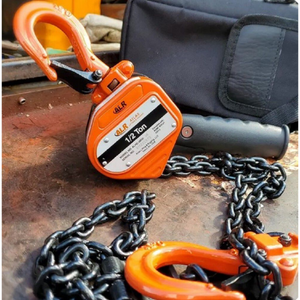

Atlas Lifting and Rigging ALHC-0050-15 Compact Lever Hoist
Engineered for durability and long-reach versatility, the ALHC-0050-15 compact lever hoist offers a balance of lifting power and portability. With a 0.5-ton (1,000 lbs) lifting capacity and a 15-foot lift height, this hoist is built to handle extended vertical applications without sacrificing ease of use.
Ideal for rigging, maintenance, and material handling tasks, this hoist features a hardened steel body, sleek lever, and secure swivel hooks. Its free-chaining function ensures quick, smooth chain adjustment to minimize setup time.
Key Features:
- 0.5-Ton Capacity: Supports small to mid-sized loads with control and stability.
- 15-Foot Lift Height: Increased chain reach for more demanding overhead jobs.
- Compact Design: Lightweight for portability while maintaining structural strength.
- Free-Chaining Operation: Easily take up or release slack chain without load tension.
- Forged Swivel Hooks with Safety Latches: Ensure secure and flexible load handling.
- Steel Housing: Built tough for field and industrial use.
Specifications:
- Model: ALHC-0050-15
- Capacity: 0.5 Ton (1,000 lbs / 454 kg)
- Lift Height: 15 ft (4.6 m)
- Hook Type: Forged alloy swivel hooks with safety latches
- Load Chain: Heat-treated alloy steel
- Free Chaining: Yes
- Body Material: Steel
- Lever Handle Length: Approx. 9 inches
- Net Weight: Approx. 15.4 lbs (7.0 kg)
- Operating Temperature Range: -40°F to 140°F (-40°C to 60°C)
The Atlas ALHC-0050-15 is an ideal solution when extended reach and compact form are essential. Dependable, efficient, and field-proven—this hoist is ready for demanding applications.
