Product Overview

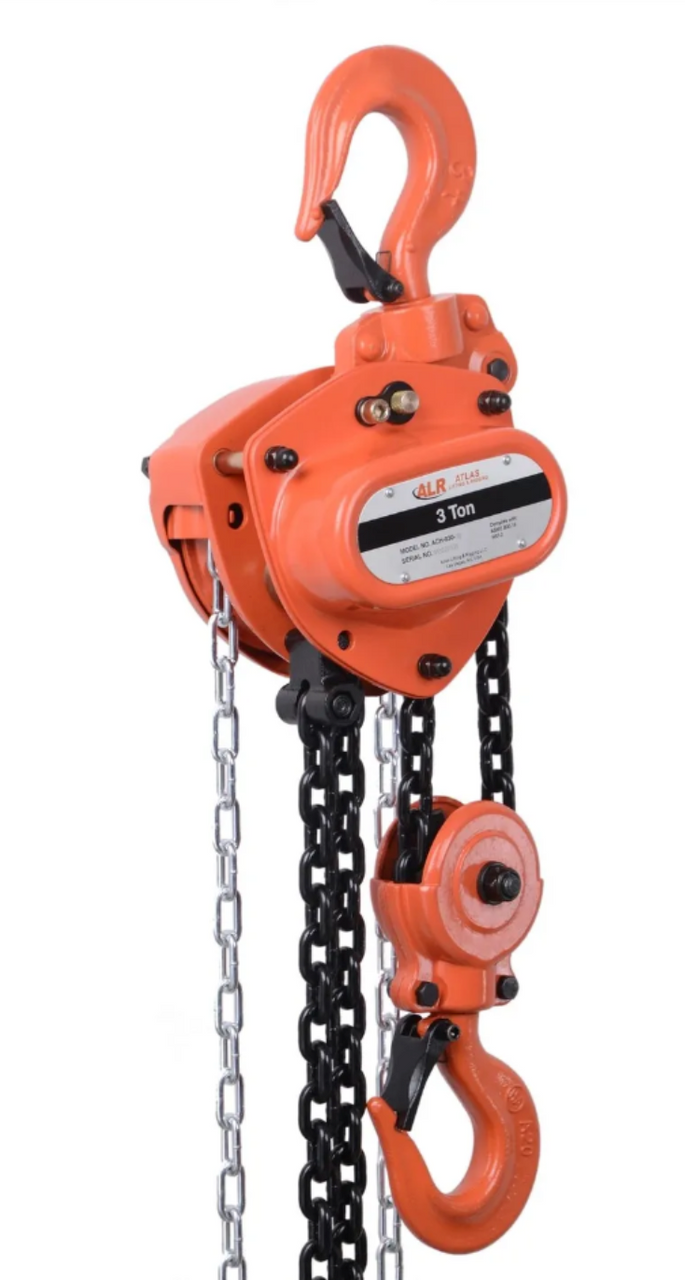

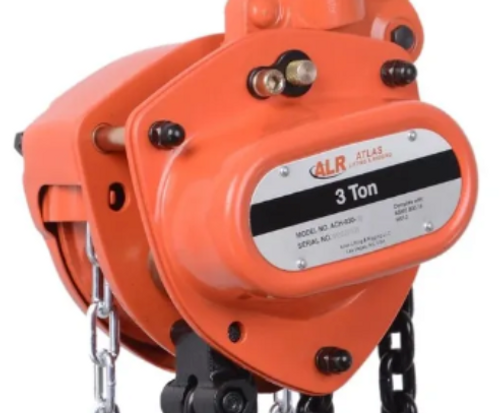

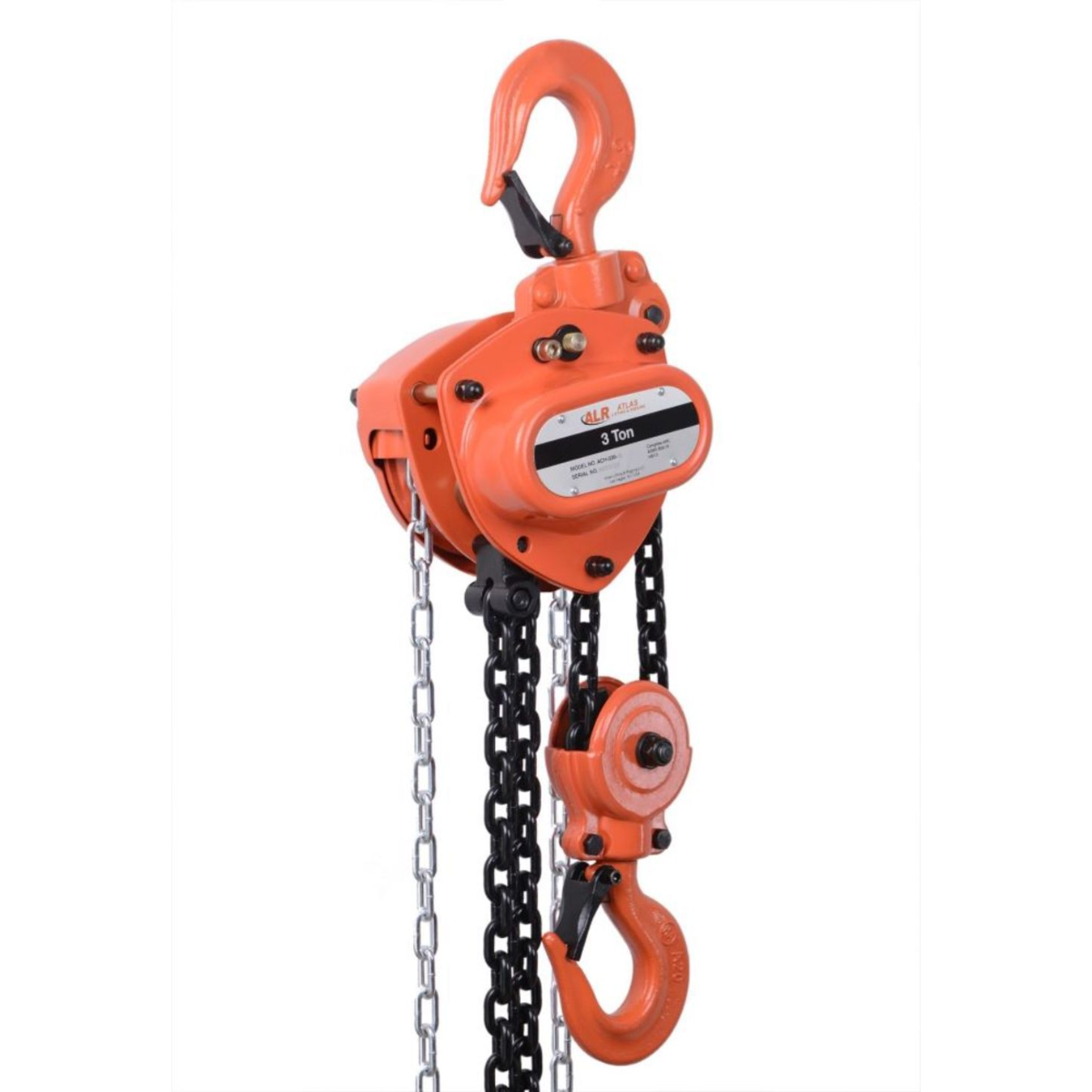

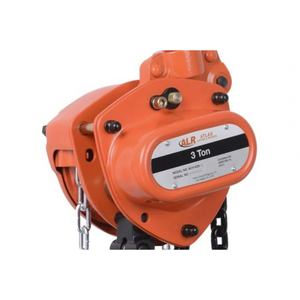

Atlas Lifting and Rigging ACH-030-20 Manual Chain Hoist
The ACH-030-20 manual chain hoist is purpose-built for high-lift applications that require uncompromising strength and reliable operation. With a 3-ton (6,000 lbs) lifting capacity and an extended 20-foot lift height, this hoist is ideal for vertical rigging jobs in construction, industrial maintenance, and heavy equipment handling.
Engineered for durability, it features rugged steel housing, a high-grade alloy steel chain, and a Weston-style mechanical brake for smooth, secure load control. Its ergonomic hand chain design ensures consistent, low-effort lifting, even at maximum reach.
Key Features:
- 3-Ton Lifting Capacity: Handles large loads with ease and safety.
- 20-Foot Lift Height: Ideal for high-clearance projects or deep-lift scenarios.
- Heavy-Duty Steel Housing: Built to endure rough environments and long-term use.
- Weston-Style Mechanical Brake: Provides controlled lifting and positive load holding.
- Grade 80 Load Chain: Premium alloy steel chain for maximum strength and durability.
- Swivel Hooks with Safety Latches: Help maintain secure and stable load attachment.
- Ergonomic Hand Chain Operation: Smooth pull for operator comfort over extended lifts.
Specifications:
- Model: ACH-030-20
- Capacity: 3 Ton (6,000 lbs / 2,722 kg)
- Lift Height: 20 ft (6 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 18–20 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 72–78 lbs
The Atlas ACH-030-20 offers extended reach and high-load reliability in a tough, easy-to-operate package—perfect for professional-grade lifting where height and power matter most.
