Product Overview

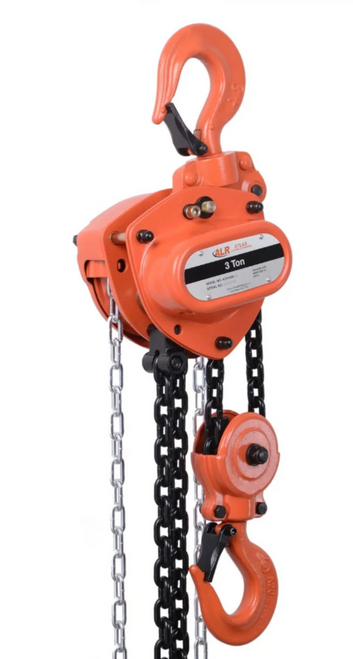

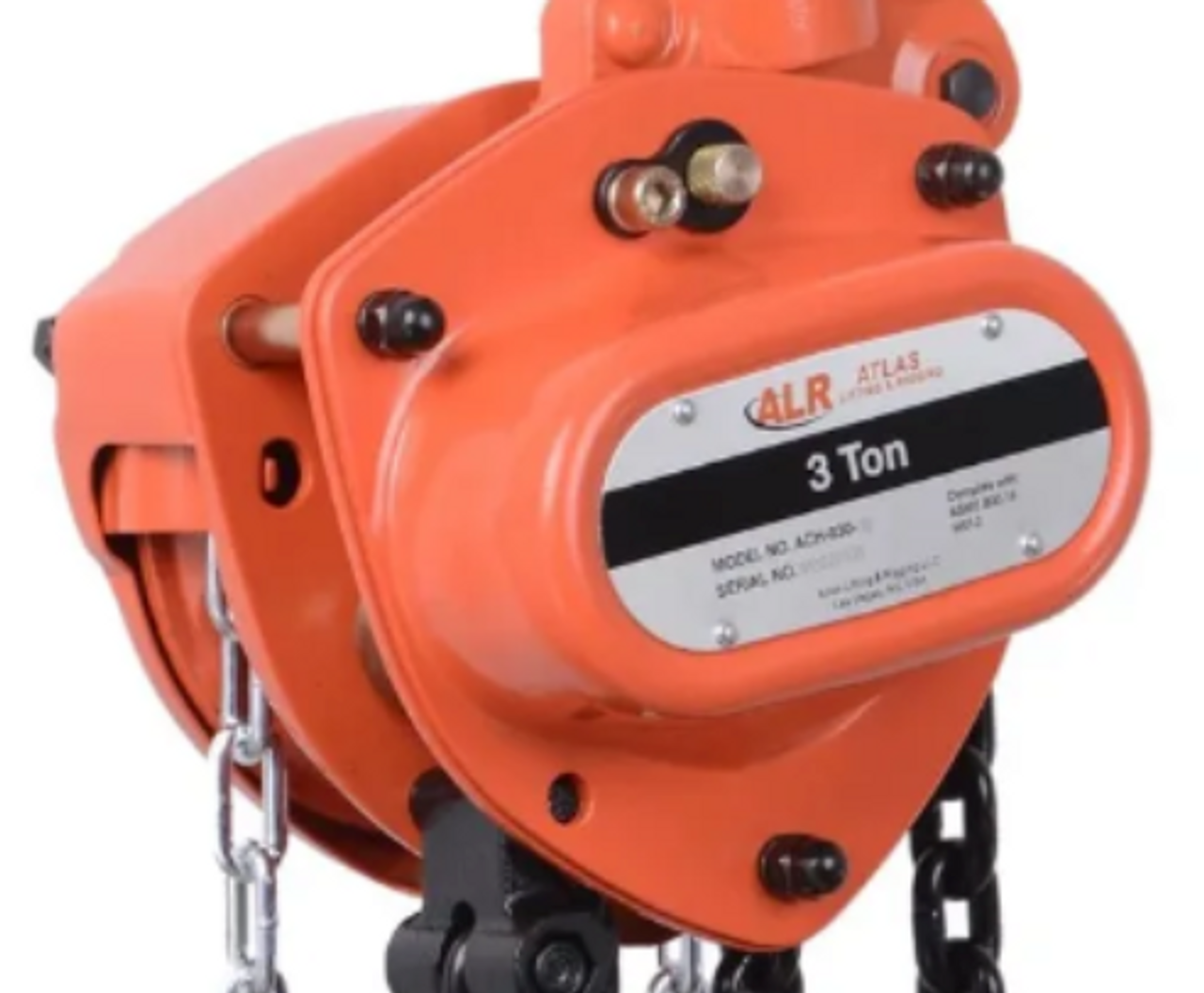

Atlas Lifting and Rigging ACH-030-10 Manual Chain Hoist
The ACH-030-10 manual chain hoist is designed to deliver heavy-duty lifting performance with a 3-ton (6,000 lbs) capacity and a 10-foot lift height. Built for demanding industrial, construction, and rigging applications, this hoist offers dependable strength, durability, and precise control in a compact, rugged package.
Featuring a robust steel frame, a reliable Weston-style mechanical brake, and a high-strength Grade 80 alloy steel load chain, the ACH-030-10 ensures smooth, safe operation under heavy loads. Its ergonomic hand chain design reduces operator fatigue, making it an excellent choice for frequent use.
Key Features:
- 3-Ton Load Capacity: Handles heavier equipment and materials with ease.
- 10-Foot Lift Height: Ideal for standard vertical lifting needs.
- Heavy-Duty Steel Construction: Withstands harsh job site conditions.
- Weston-Style Mechanical Brake: Ensures secure load holding and control.
- Ergonomic Hand Chain Operation: Smooth and comfortable for efficient lifting.
- Swivel Hooks with Safety Latches: Provide secure rigging and prevent chain twisting.
- Sealed Gearbox and Brake Enclosure: Protect internal components from dirt and debris.
Specifications:
- Model: ACH-030-10
- Capacity: 3 Ton (6,000 lbs / 2,722 kg)
- Lift Height: 10 ft (3 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 18–20 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 50–55 lbs
The Atlas ACH-030-10 offers the power and precision required for heavier lifting tasks, combining durability with user-friendly operation to help complete the job safely and efficiently.
