Product Overview

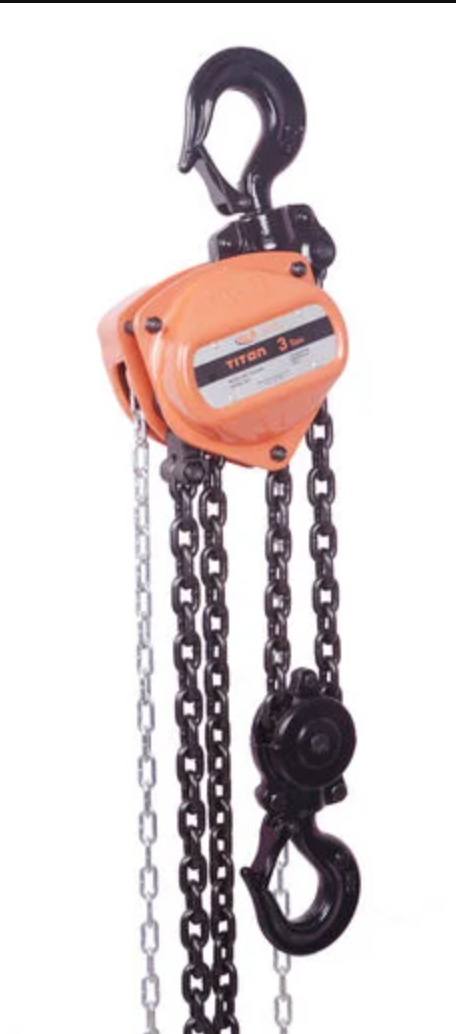

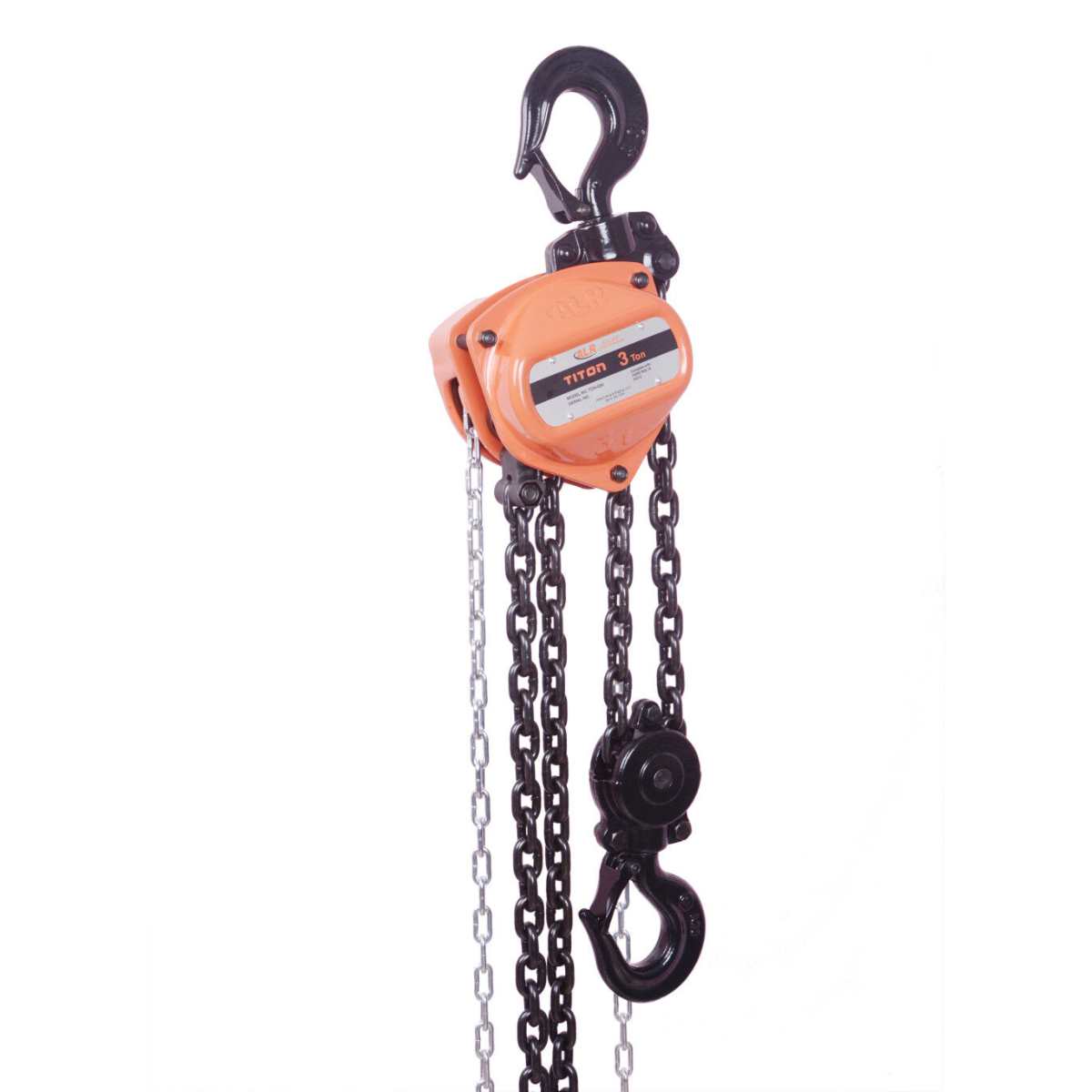

Atlas Lifting and Rigging Titon TCH-030-15 Manual Chain Hoist – 3 Ton Capacity, 15 ft Lift
The TCH-030-15 Manual Chain Hoist by Atlas Lifting and Rigging is built for lifting professionals who require greater reach with uncompromising strength and safety. With a 3-ton (6,000 lb) lifting capacity and an extended 15-foot lift height, this hoist is ideal for taller structures, elevated installations, or scenarios that demand more vertical range.
Crafted with a rugged steel body and Grade 80 alloy load chain, this hoist is engineered for reliability in harsh working environments. Precision gearing ensures smooth operation and efficiency, while forged swivel hooks with safety latches secure loads under tension, allowing for dynamic rigging flexibility.
Key Features:
- 3 Ton (6,000 lb) Capacity: Supports demanding lifting needs across industrial and commercial environments.
- 15 ft Lift Height: Offers enhanced reach for higher lift requirements without sacrificing performance.
- Durable Steel Housing: Built to withstand impacts, wear, and demanding job site conditions.
- Premium Grade 80 Load Chain: High-tensile alloy chain resists stretching and wear.
- Manual Chain Drive: Smooth and efficient hand chain operation reduces user fatigue.
- Swivel Hooks with Safety Latches: Allow safe, secure connections and flexible rigging angles.
- Protective Finish: Coated to protect against rust and corrosion in outdoor or indoor use.
Specifications:
- Model: TCH-030-15
- Capacity: 3 Ton (6,000 lbs / 2,722 kg)
- Lift Height: 15 feet (4.57 meters)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: Approx. 10 mm
- Hand Chain Pull (Full Load): Approx. 85 lbs
- Hooks: Forged swivel type with safety latches
- Finish: Corrosion-resistant industrial coating
- Net Weight: Approx. 62 lbs (28.1 kg)
The Atlas TCH-030-15 combines lifting strength, extended reach, and proven durability—making it an essential tool for professionals in construction, manufacturing, and heavy equipment handling.
