Product Overview

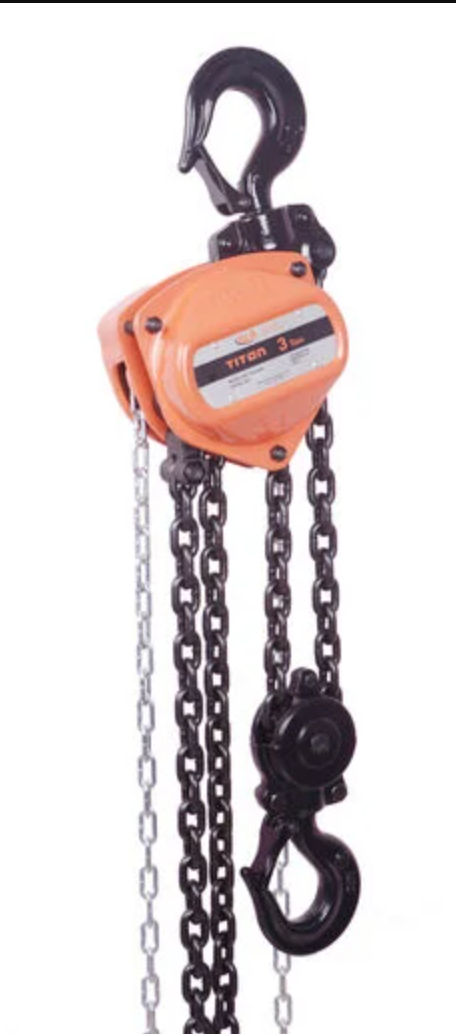

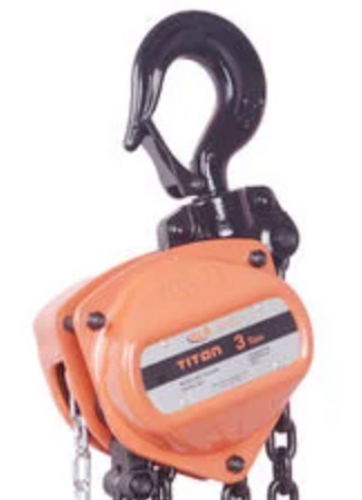

Atlas Lifting and Rigging Titon TCH-030-20 Manual Chain Hoist – 3 Ton Capacity, 20 ft Lift
The TCH-030-20 Manual Chain Hoist is designed for demanding lifting applications that require extended vertical reach and heavy-duty performance. With a 3-ton (6,000 lb) load capacity and a 20-foot lift height, this hoist is ideal for tall structure assembly, rigging operations, and industrial maintenance work.
Constructed with a reinforced steel housing and Grade 80 alloy steel load chain, the TCH-030-20 delivers uncompromising reliability and long service life. It features precision-machined gearing for smooth, controlled lifting and forged swivel hooks with safety latches to ensure secure load engagement and flexible rigging.
Key Features:
- 3 Ton (6,000 lb) Capacity: Built to handle substantial industrial lifting tasks.
- 20 ft Lift Height: Ideal for high-lift applications and overhead workspaces.
- Heavy-Duty Steel Frame: Withstands harsh jobsite conditions and daily use.
- High-Strength Grade 80 Load Chain: Provides superior resistance to wear and deformation.
- Smooth Hand Chain Operation: Reduces operator fatigue with efficient mechanical advantage.
- Swivel Hooks with Latches: Enhance safety and allow for dynamic load positioning.
- Protective Coating: Guards against rust and corrosion in harsh environments.
Specifications:
- Model: TCH-030-20
- Capacity: 3 Ton (6,000 lbs / 2,722 kg)
- Lift Height: 20 feet (6.10 meters)
- Load Chain: Grade 80 alloy steel
- Chain Diameter: Approx. 10 mm
- Hand Chain Pull (Full Load): Approx. 85 lbs
- Hooks: Forged swivel type with safety latches
- Finish: Industrial-grade corrosion-resistant coating
- Net Weight: Approx. 71 lbs (32.2 kg)
The Atlas TCH-030-20 is a high-capacity, long-lift chain hoist that delivers the strength, control, and durability professionals rely on for safe and efficient overhead lifting.
