Product Overview

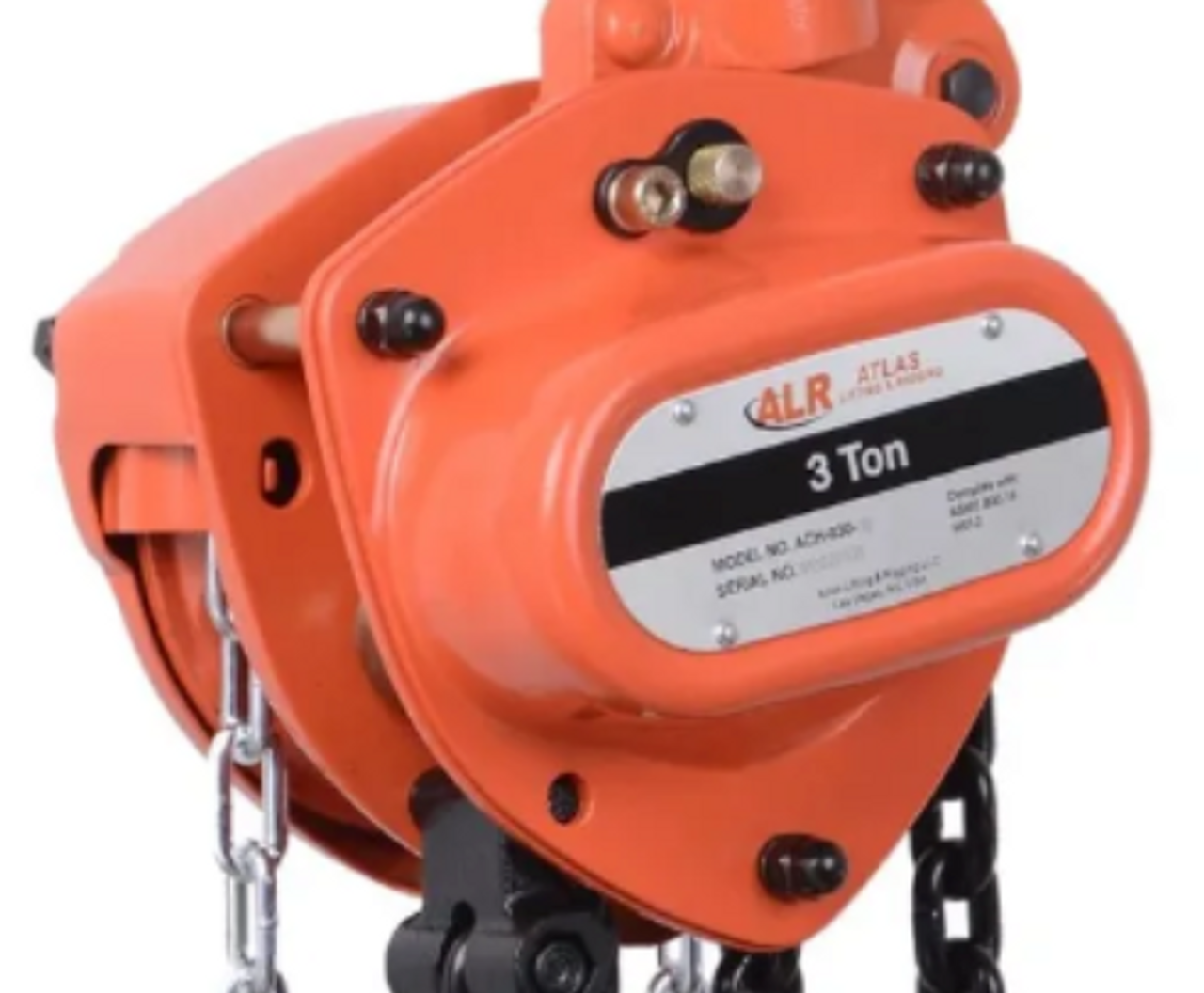

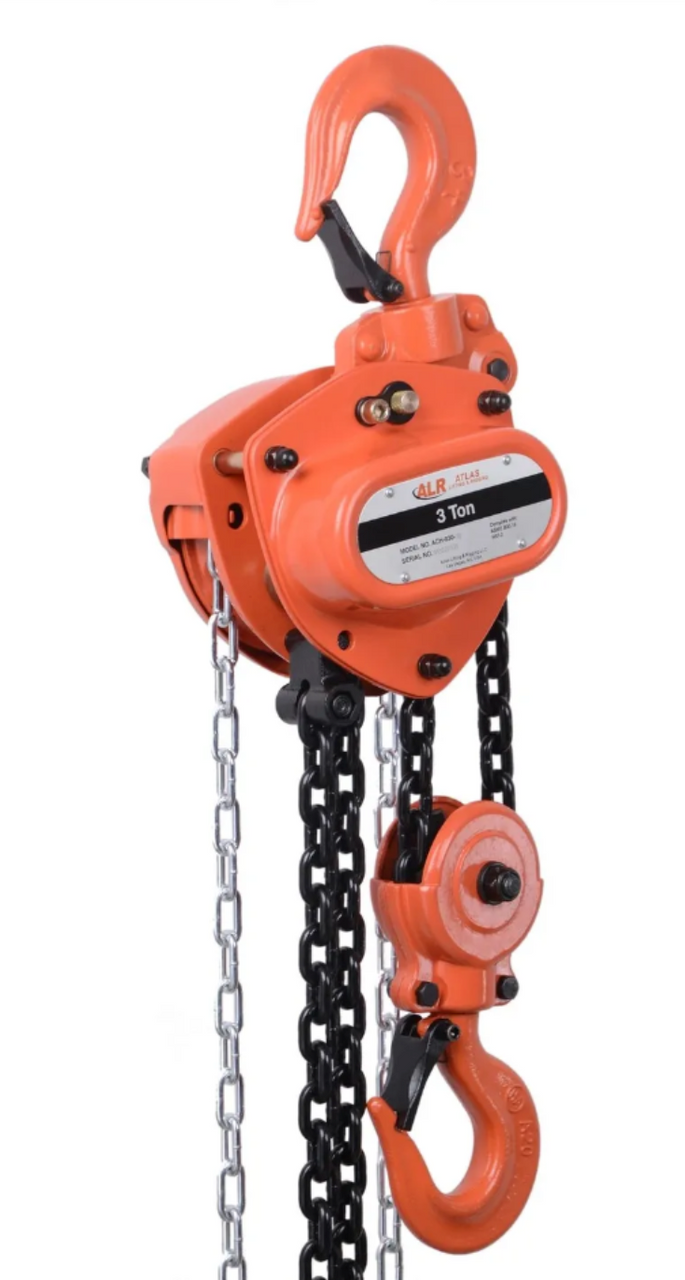

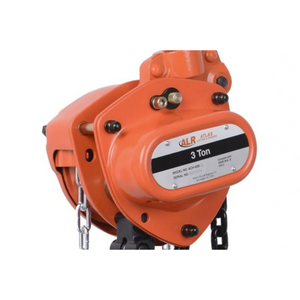

Atlas Lifting and Rigging ACH-030-30 Manual Chain Hoist
Built for demanding vertical lift operations, the ACH-030-30 manual chain hoist from Atlas Lifting and Rigging offers robust performance with extended reach. Featuring a 3-ton (6,000 lbs) lifting capacity and a generous 30-foot lift height, this hoist is the go-to solution for jobs requiring exceptional clearance and control.
Engineered with a durable steel frame, Grade 80 alloy steel load chain, and a Weston-style mechanical brake system, this hoist delivers smooth and secure operation—even under full load. Whether on the job site or in a plant, the ACH-030-30 provides reliability and safety where it counts.
Key Features:
- 3-Ton Lifting Capacity: Designed for heavy equipment, rigging, and overhead lifts.
- 30-Foot Lift Height: Ideal for high-clearance or deep-lift applications.
- Heavy-Duty Steel Housing: Rugged design for industrial durability.
- Weston-Style Mechanical Brake: Offers secure load control and positive holding power.
- Grade 80 Alloy Load Chain: High-strength and corrosion-resistant.
- Forged Swivel Hooks with Safety Latches: Ensure safe, flexible rigging and minimize chain twist.
- Ergonomic Hand Chain Operation: Smooth pull for efficient lifting with reduced operator fatigue.
Specifications:
- Model: ACH-030-30
- Capacity: 3 Ton (6,000 lbs / 2,722 kg)
- Lift Height: 30 ft (9 m)
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 18–20 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 92–98 lbs
The Atlas ACH-030-30 is designed to handle demanding, tall-lift jobs with ease, offering outstanding reliability and smooth operation for a range of industrial and construction applications.
