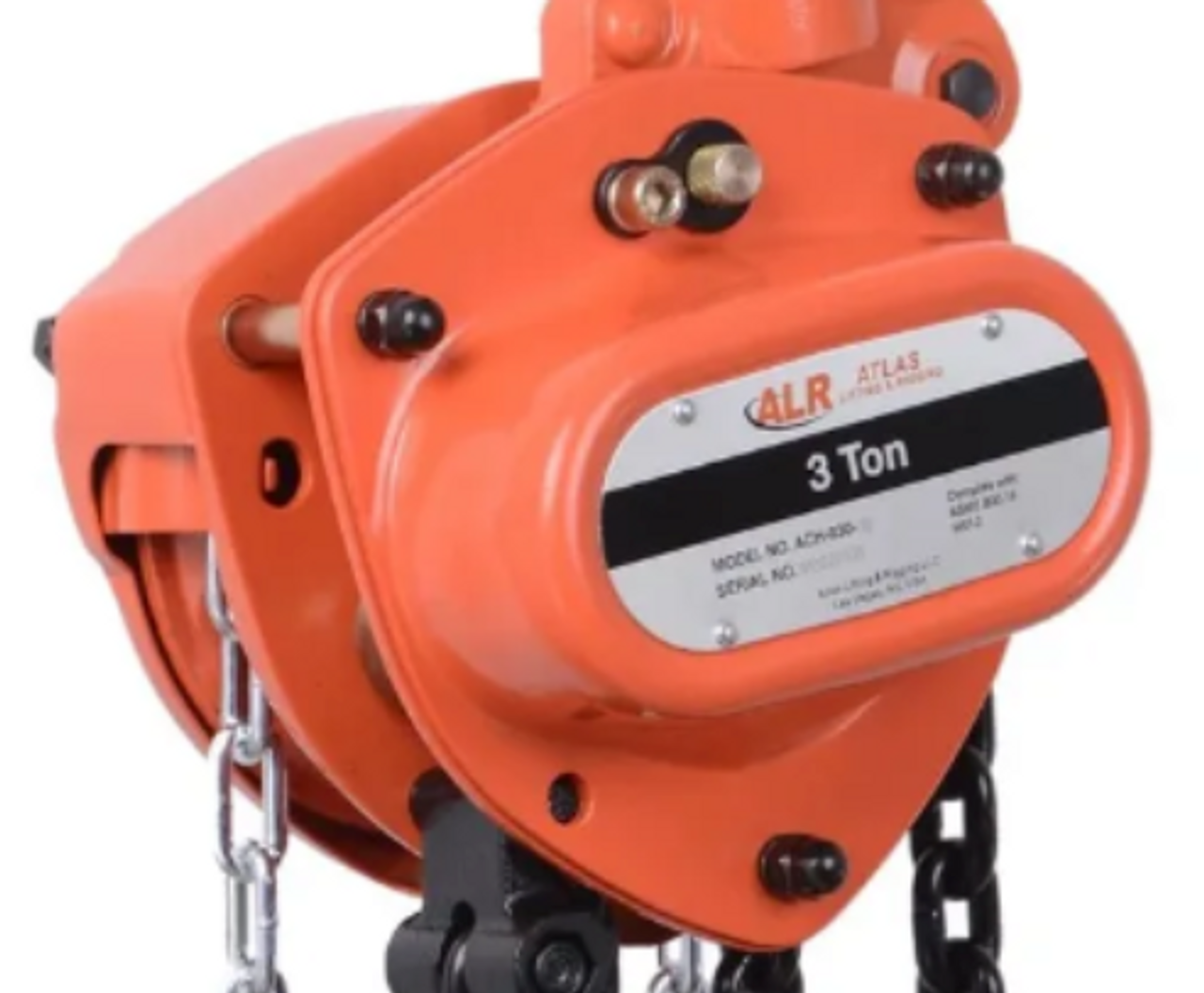

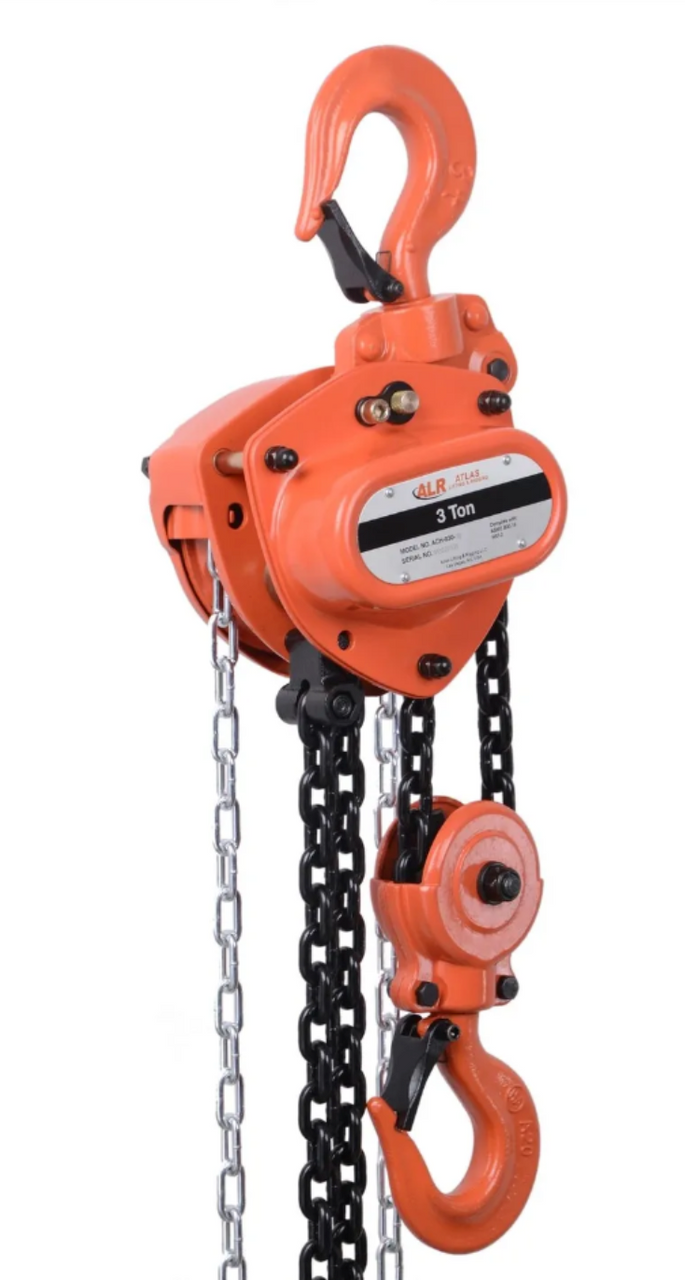

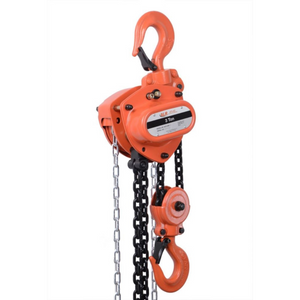

Atlas Lifting and Rigging ACH 3 Ton Chain Hoist 20 Ft. Lift with Overload Protection

Write a Review
$1,042.19
SKU: ACH-030-20-OP
Availability: In stock
Weight: 75.68 LBS
Shipping: Calculated at Checkout
Adding to cart… The item has been added

Atlas Lifting and Rigging ACH-030-20-OP Manual Chain Hoist with Overload Protection

The ACH-030-20-OP delivers dependable heavy-lift performance with the added safety of built-in overload protection. With a 3-ton (6,000 lbs) load capacity and a 20-foot lift height, this hoist is ideal for applications requiring extended reach and consistent, controlled operation.

Its integrated mechanical overload clutch prevents lifting beyond rated capacity, helping to protect operators, equipment, and loads. A rugged steel housing, precision-machined gearing, Weston-style brake, and alloy steel load chain make this hoist a long-lasting solution for demanding industrial and construction environments.

Key Features:

  • 3-Ton Capacity with Overload Protection: Mechanical clutch halts lifting when the safe load limit is exceeded.
  • 20-foot Lift Height: Accommodates tall structures and deep lifting tasks.
  • Rugged Steel Body: Built for high performance in job sites and industrial use.
  • Weston-Style Mechanical Brake: Provides reliable control and load holding.
  • Grade 80 Load Chain: Premium strength alloy chain with corrosion-resistant finish.
  • Swivel Hooks with Safety Latches: Allow safe, flexible, and secure rigging.
  • Sealed Gear and Brake Housing: Protects components from debris, moisture, and wear.

Specifications:

  • Model: ACH-030-20-OP
  • Capacity: 3 Ton (6,000 lbs / 2,722 kg)
  • Lift Height: 20 ft (6 m)
  • Overload Protection: Integrated mechanical slip clutch
  • Load Chain: Grade 80 alloy steel, black oxide finish
  • Hand Chain: Zinc-plated steel
  • Brake Type: Weston-style mechanical load brake
  • Hook Type: Forged steel swivel hooks with safety latches
  • Headroom: Approx. 18–20 inches
  • Operating Temperature: -40°F to 140°F (-40°C to 60°C)
  • Net Weight: Approx. 74–80 lbs

The Atlas ACH-030-20-OP is engineered for high-clearance, high-capacity lifting where safety and strength are essential. It’s the ideal solution for professionals who need extended lift range and overload protection in one dependable unit.
