Product Overview

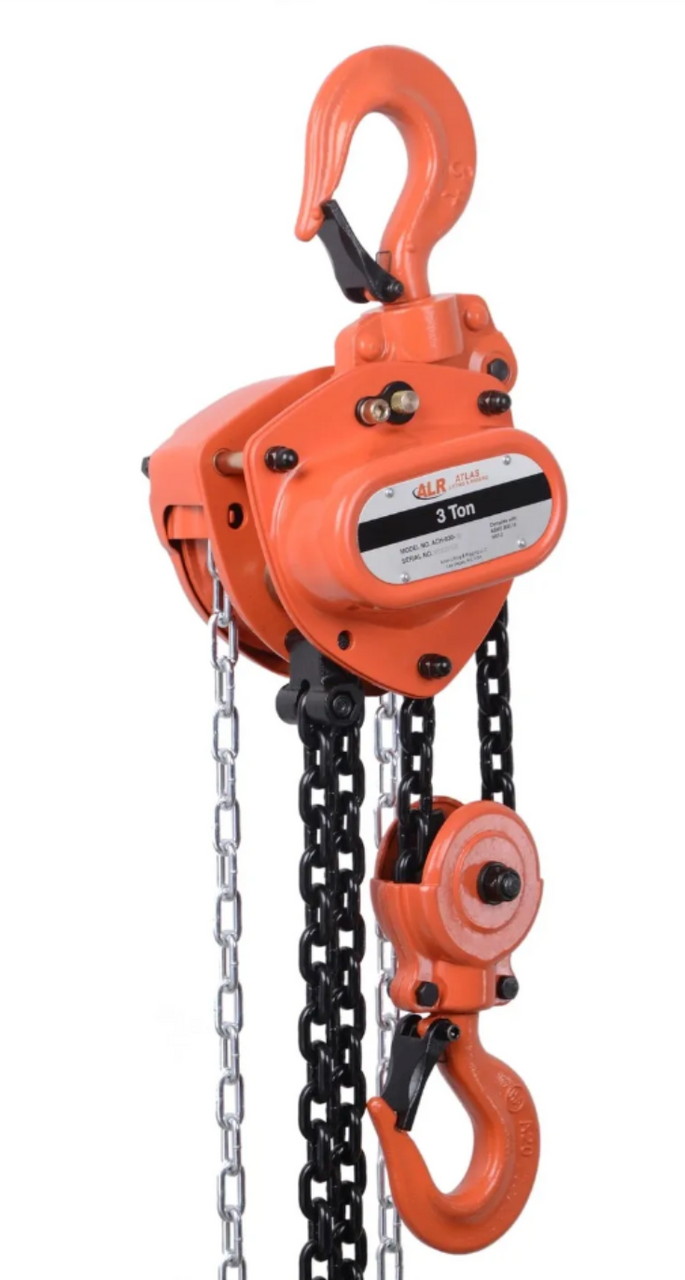

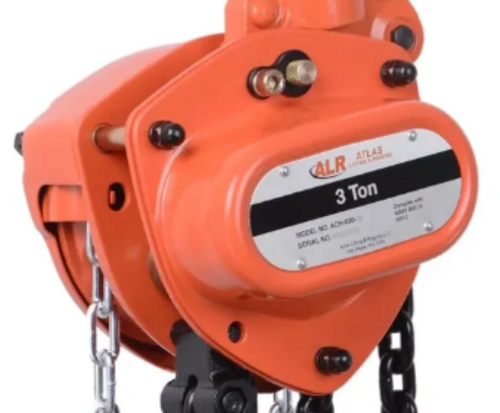

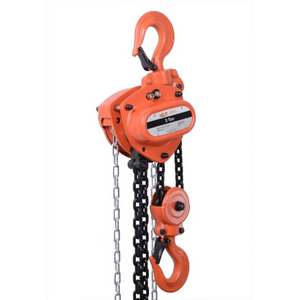

Atlas Lifting and Rigging ACH-030-30-OP Manual Chain Hoist with Overload Protection
Designed for safety, reach, and durability, the ACH-030-30-OP manual chain hoist delivers powerful performance in high-clearance lifting scenarios. With a 3-ton (6,000 lbs) rated capacity and an extended 30-foot lift height, this model combines industrial-grade strength with integrated mechanical overload protection for enhanced operator and load safety.
The built-in slip clutch prevents lifting beyond the hoist’s rated capacity, helping to reduce the risk of equipment damage or operator injury. Its forged steel body, Weston-style brake, and precision-machined gearing offer smooth, reliable control under heavy loads.
Key Features:
- 3-Ton Capacity with Overload Protection: Prevents over-lifting by engaging a mechanical clutch when capacity is exceeded.
- 30-Foot Lift Height: Ideal for tall structures, elevated platforms, or deep-lift operations.
- Rugged Steel Construction: Built to perform in demanding industrial conditions.
- Weston-Style Mechanical Brake: Ensures dependable load control and secure holding.
- Grade 80 Alloy Steel Load Chain: Engineered for strength, durability, and corrosion resistance.
- Swivel Hooks with Safety Latches: Forged steel hooks allow safe, flexible, and stable connections.
- Sealed Gear Housing: Protects internal components from contaminants and wear.
Specifications:
- Model: ACH-030-30-OP
- Capacity: 3 Ton (6,000 lbs / 2,722 kg)
- Lift Height: 30 ft (9 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 18–20 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 94–100 lbs
The Atlas ACH-030-30-OP is the ideal hoist for extended-reach lifting where safety cannot be compromised. Built to handle the extreme tasks with confidence, it’s a trusted choice for professionals who demand both performance and protection.
