Product Overview

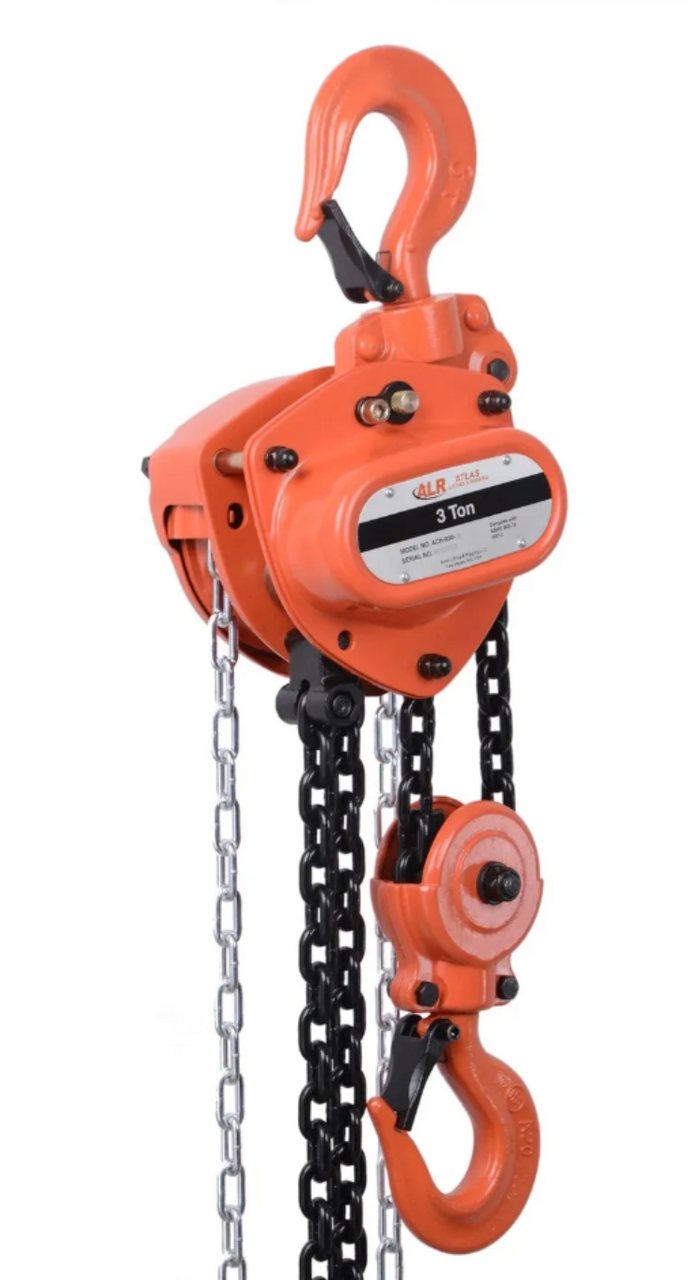

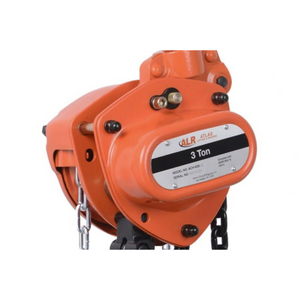

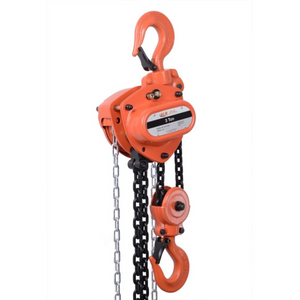

Atlas Lifting and Rigging ACH-030-10-OP Manual Chain Hoist with Overload Protection
The ACH-030-10-OP manual chain hoist delivers rugged lifting power with advanced safety features for high-demand job sites. With a 3-ton (6,000 lbs) load capacity, a 10-foot lift height, and integrated mechanical overload protection, this hoist is engineered for both performance and protection.
The built-in overload clutch disengages the lifting mechanism when the rated capacity is exceeded, safeguarding against excessive loads and minimizing risk to operators and equipment. A forged steel frame, Weston-style brake system, and high-grade alloy chain provide long-lasting durability and smooth control during every lift.
Key Features:
- 3-Ton Capacity with Overload Protection: A mechanical slip clutch prevents lifting beyond the rated capacity.
- 10-Foot Lift Height: Ideal for general overhead lifting and material handling tasks.
- Rugged Steel Housing: Built to withstand impact and corrosion in industrial environments.
- Weston-Style Mechanical Brake: Ensures secure and controlled load handling.
- Ergonomic Hand Chain Pull: Reduces operator effort for comfortable, efficient lifting.
- Swivel Hooks with Safety Latches: Allow for safe and flexible rigging setups.
- Sealed Internal Components: Keep out dust and debris for reduced maintenance.
Specifications:
- Model: ACH-030-10-OP
- Capacity: 3 Ton (6,000 lbs / 2,722 kg)
- Lift Height: 10 ft (3 m)
- Overload Protection: Integrated mechanical slip clutch
- Load Chain: Grade 80 alloy steel, black oxide finish
- Hand Chain: Zinc-plated steel
- Brake Type: Weston-style mechanical load brake
- Hook Type: Forged steel swivel hooks with safety latches
- Headroom: Approx. 18–20 inches
- Operating Temperature: -40°F to 140°F (-40°C to 60°C)
- Net Weight: Approx. 52–58 lbs
The Atlas ACH-030-10-OP is a top choice for professionals seeking reliable lifting performance without compromising safety. Whether you're working in industrial maintenance, construction, or rigging, this hoist offers the strength and confidence to get the job done right.
