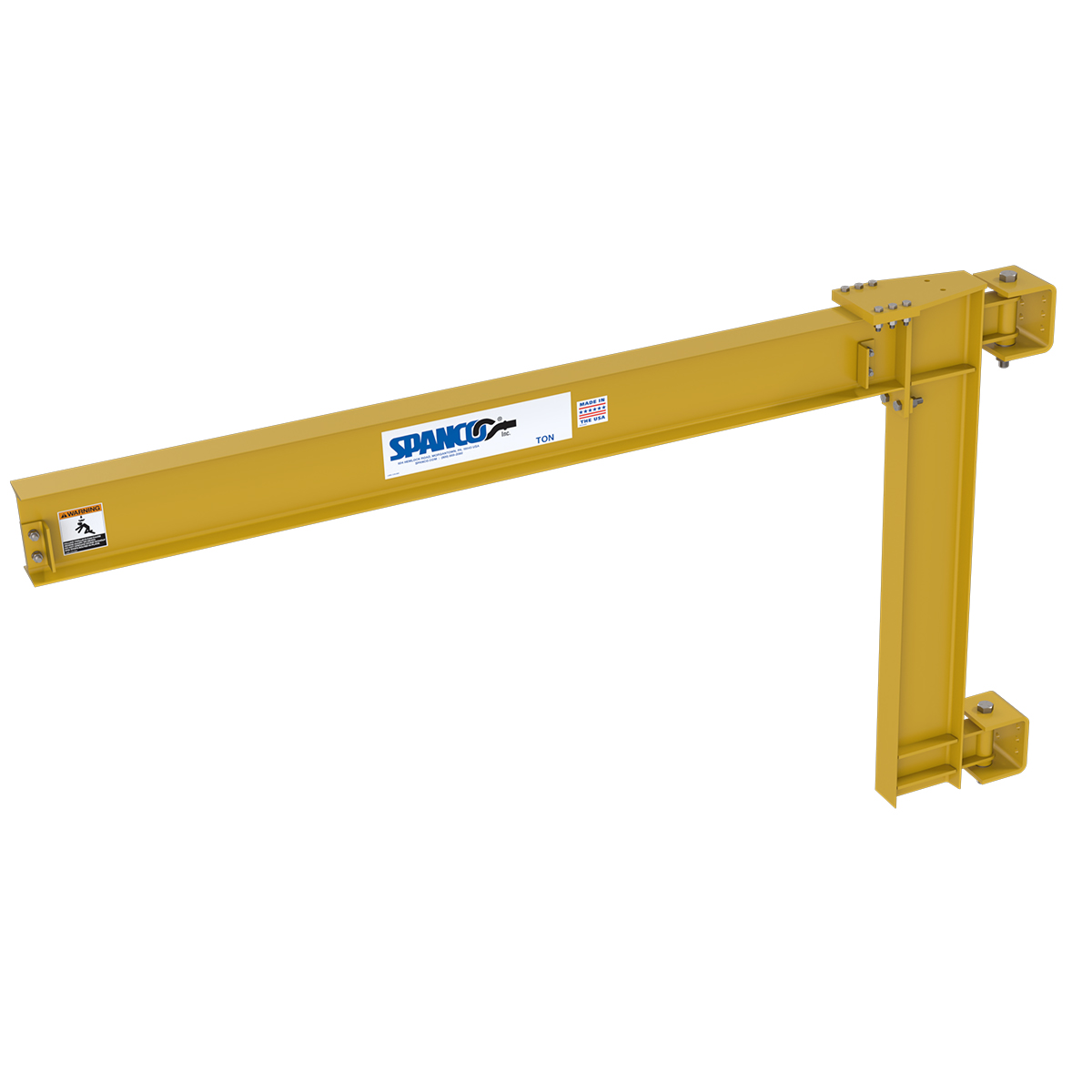

JIB, WALL CANTILEVER, Bridge Capacity: 500 lbs, Span: 8' - 0'', Clear Span: 6' - 7'', Support Bracket Centers: 4'-0", Beam Size: S6 x12.5#, Flange Width: 3-3/8", Thrust/Pull: 1340 lbs, 300-025-08 SPANCO

Product Overview

JIB, WALL CANTILEVER 1/4 TON (INDOOR):

• Capacity: The jib has a capacity of 500 lbs, making it suitable for moderate lifting tasks in indoor environments.

• Span: It spans 8 feet, providing adequate coverage within the workspace.

• Clear Span: With a clear span of 6 feet and 7 inches, it offers ample space for maneuvering and lifting operations.

• Support Bracket Centers: The support bracket centers are positioned at intervals of 4 feet, ensuring stability and structural integrity.

• Beam Size: Constructed with an S6 x 12.5# beam, the jib is engineered to withstand the specified load capacity.

• Flange Width: The flange width measures 3-3/8 inches, contributing to the structural strength and stability of the jib.

• Thrust/Pull: It can handle a thrust/pull force of up to 1340 lbs, ensuring reliable performance during lifting operations.

• Coating & Painting: Finished with a spray of yellow paint, the jib is protected against corrosion and adds visibility to the workspace.

JIB, WALL CANTILEVER 1/4 TON (INDOOR)
Capacity: 500 lbs
Span: 8' - 0''
Clear Span: 6' - 7''
Support Bracket Centers: 4'-0"
Beam Size: S6 x12.5#
Flange Width: 3-3/8"
Thrust/Pull: 1340 lbs
Coating & Painting: PAINT, SPRAY YELLOW
