Product Overview

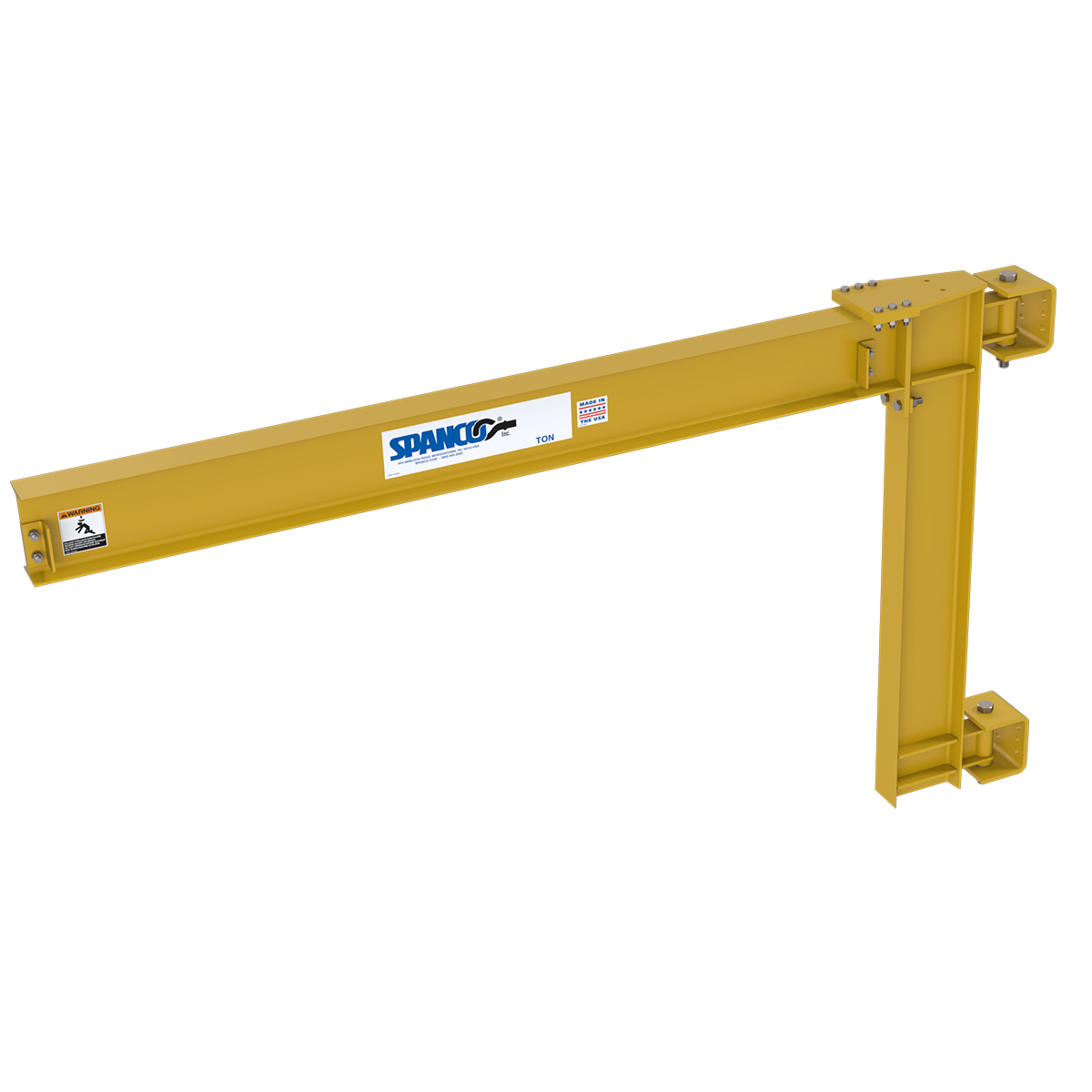

JIB, WALL CANTILEVER 1/4 TON (INDOOR):
-
Capacity: This jib is capable of handling loads of up to 500 lbs, making it suitable for various light to moderate lifting tasks in indoor environments.
-
Span: With a span of 18 feet, this jib provides extensive coverage across the workspace, allowing for efficient material handling and maneuverability.
-
Clear Span: Offering a clear span of 16 feet and 5 inches, there's ample room for moving loads without obstruction, enhancing productivity and safety.
-
Support Bracket Centers: The support bracket centers are spaced at intervals of 4 feet, ensuring stable mounting and even distribution of loads for safe lifting operations.
-
Beam Size: Constructed with an S8 x 18.4# beam, the jib offers robust support and structural integrity to handle the specified load capacity effectively.
-
Flange Width: The flange width measures 4 inches, contributing to the jib's overall stability and strength, ensuring reliable performance during lifting tasks.
-
Thrust/Pull: Capable of withstanding a thrust/pull force of up to 3740 lbs, this jib ensures secure and stable lifting operations, providing safety and peace of mind.
-
Coating & Painting: Finished with a spray of yellow paint, the jib is protected against corrosion and provides high visibility in the indoor environment, enhancing safety and durability.

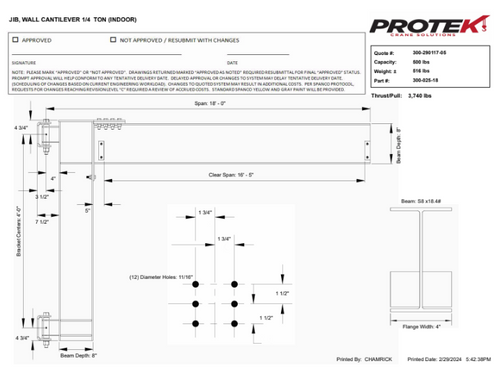

JIB, WALL CANTILEVER 1/4 TON (INDOOR)
Capacity: 500 lbs
Span: 18' - 0''
Clear Span: 16' - 5''
Support Bracket Centers: 4'-0"
Beam Size: S8 x18.4#
Flange Width: 4"
Thrust/Pull: 3740 lbs
Coating & Painting: PAINT, SPRAY YELLOW
