Product Overview

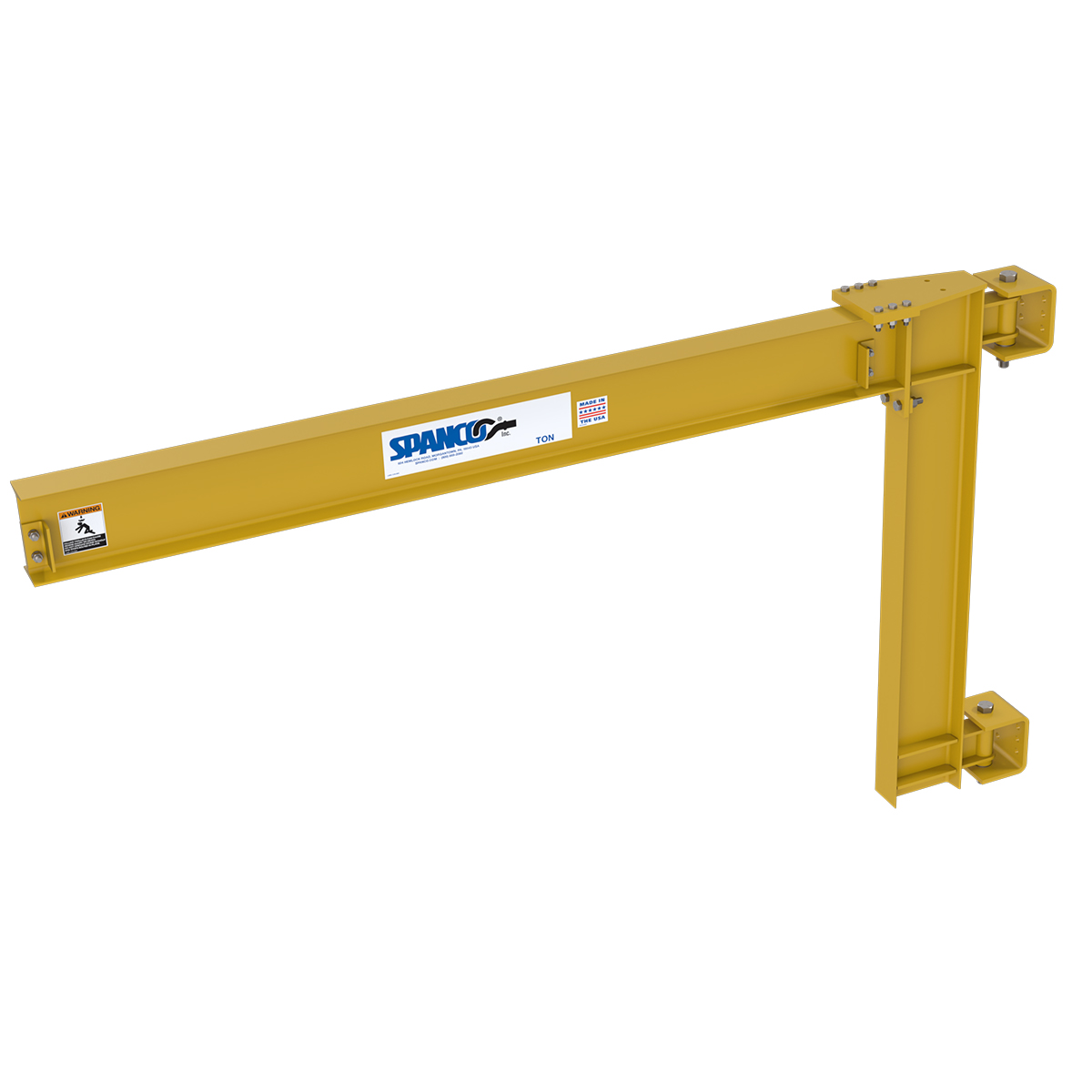

JIB, WALL CANTILEVER 1/4 TON (INDOOR)
-
Capacity: The jib crane has a lifting capacity of 500 lbs, making it suitable for light to medium-duty lifting tasks within indoor environments.
-
Span: This wall-mounted jib crane has a span of 20 feet, providing extensive coverage for lifting and maneuvering loads across a wide area.
-
Clear Span: With a clear span of 18 feet and 3 inches, the crane offers ample space for unobstructed movement of materials, ensuring efficient workflow and versatility in handling various loads.
-
Support Bracket Centers: The support brackets are positioned at intervals of 4 feet, ensuring stable support and structural integrity throughout the crane's operation.
-
Beam Size: The crane features a W10 x 30# steel beam, known for its robustness and load-bearing capacity, ensuring reliable performance during lifting operations.
-
Flange Width: The flange width of the beam is 5-3/4 inches, providing stability and structural support to the crane assembly, enhancing safety and durability.
-
Thrust/Pull: With a thrust/pull capacity of 4620 lbs, the jib crane can withstand significant forces, ensuring stability and safety during lifting and maneuvering tasks.
-
Coating & Painting: The crane is coated with yellow spray paint, offering corrosion resistance and high visibility for enhanced safety within indoor environments.
JIB, WALL CANTILEVER 1/4 TON (INDOOR)
Capacity: 500 lbs
Span: 20' - 0''
Clear Span: 18' - 3''
Support Bracket Centers: 4'-0"
Beam Size: W10 x30#
Flange Width: 5-3/4"
Thrust/Pull: 4620 lbs
Coating & Painting: PAINT, SPRAY YELLOW
