Product Overview

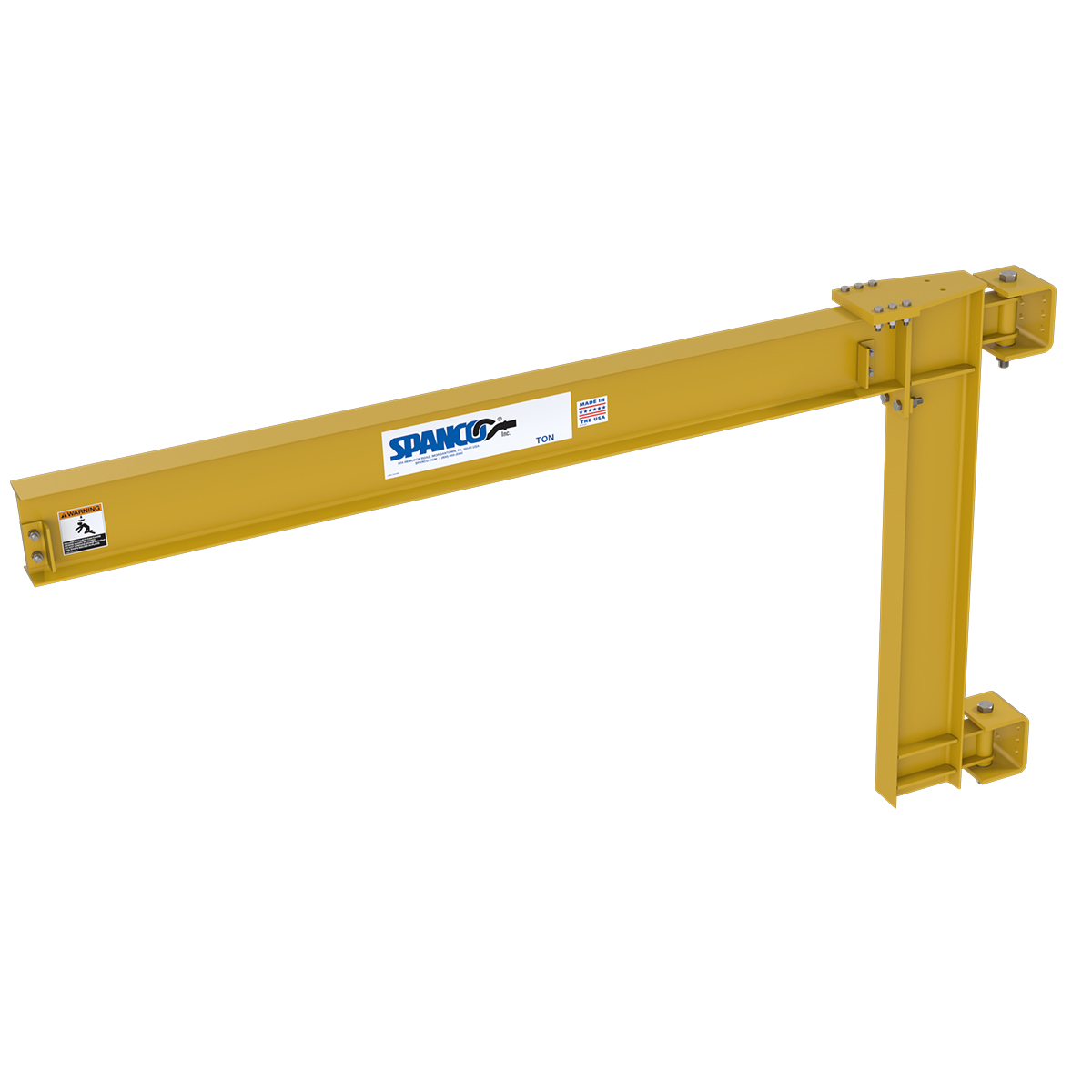

JIB, WALL CANTILEVER 1/4 TON (INDOOR):
-
Capacity: The jib has a capacity of 500 lbs, suitable for handling light to moderate loads in indoor settings.
-
Span: It spans 12 feet, providing a considerable coverage area for lifting operations within the workspace.
-
Clear Span: With a clear span of 10 feet and 7 inches, there is ample space for maneuvering and positioning loads effectively.
-
Support Bracket Centers: The support bracket centers are positioned at intervals of 4 feet, ensuring stable and secure installation.
-
Beam Size: Constructed with an S6 x 12.5# beam, the jib is designed to withstand the specified load capacity while maintaining structural integrity.
-
Flange Width: The flange width measures 3-3/8 inches, contributing to the overall stability and strength of the jib.
-
Thrust/Pull: Capable of handling a thrust/pull force of up to 2160 lbs, the jib ensures reliable performance and safety during lifting operations.
-
Coating & Painting: Finished with a spray of yellow paint, the jib is protected against corrosion and provides enhanced visibility in the workspace, ensuring safety and durability.
JIB, WALL CANTILEVER 1/4 TON (INDOOR)
Capacity: 500 lbs
Span: 12' - 0''
Clear Span: 10' - 7''
Support Bracket Centers: 4'-0"
Beam Size: S6 x12.5#
Flange Width: 3-3/8"
Thrust/Pull: 2160 lbs
Coating & Painting: PAINT, SPRAY YELLOW
