  • 300-025-14
  • 300-025-14

    • JIB, WALL CANTILEVER, Bridge Capacity: 500 lbs, Span: 14' - 0'', Clear Span: 12' - 5'', Support Bracket Centers: 4'-0", Beam Size: S8 x18.4#, Flange Width: 4", Thrust/Pull: 2590 lbs, 300-025-14 SPANCO

    SPANCO

    MSRP: $3,877.00
    $3,198.53
    (You save $678.47 )
    (No reviews yet) Write a Review
    SKU:
    300-025-14
    Weight:
    433.00 LBS
    Shipping:
    Calculated at Checkout
    Adding to cart… category.add_cart_announcement
    asdfadsfa

    Product Overview

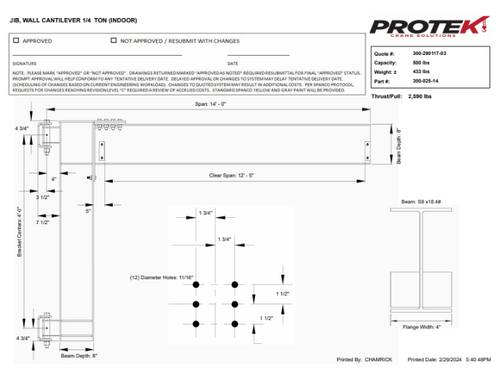

    JIB, WALL CANTILEVER 1/4 TON (INDOOR)

    • Capacity: This wall-mounted jib crane has a maximum lifting capacity of 500 lbs, making it suitable for light to medium-duty lifting applications within indoor settings.

    • Span: The jib crane has a span of 14 feet, providing a wide reach for lifting and maneuvering loads within the designated area.

    • Clear Span: With a clear span of 12 feet and 5 inches, this crane offers ample space for unhindered movement of materials, ensuring efficient workflow.

    • Support Bracket Centers: The support brackets are spaced at intervals of 4 feet, providing stable support and ensuring the structural integrity of the crane.

    • Beam Size: The beam of the jib crane is constructed from S8 x 18.4# steel, offering strength and durability to withstand the loads during lifting operations.

    • Flange Width: The flange width of the beam is 4 inches, providing stability and ensuring proper alignment of the crane components.

    • Thrust/Pull: The jib crane can withstand a thrust or pull force of up to 2590 lbs, ensuring stability and safety during lifting and maneuvering of loads.

    • Coating & Painting: The crane is coated with yellow spray paint, providing corrosion resistance and enhancing visibility for safety purposes within the indoor environment.

    JIB, WALL CANTILEVER 1/4 TON (INDOOR)
    Capacity: 500 lbs
    Span: 14' - 0''
    Clear Span: 12' - 5''
    Support Bracket Centers: 4'-0"
    Beam Size: S8 x18.4#
    Flange Width: 4"
    Thrust/Pull: 2590 lbs
    Coating & Painting: PAINT, SPRAY YELLOW
