FOUNDATIONLESS JIB, BASE PLATE MOUNTED 600 SERIES 1000 LBS (INDOOR) Capacity: 1000 lbs , Span: 12' - 0'' , Clear Span: 10' -6'' , Height Under Boom: 12' - 0'', Total Height: 12' - 8'' , 600-1208-1212 Spanco

Product Overview

• Capacity: It's got your back with a lifting capacity of 1000 lbs, handling your indoor lifting tasks like a champ.

• Span: With a span of 12 feet, it covers a good amount of ground, making sure you can reach where you need to.

• Clear Span: Offering a clear span of 10 feet 6 inches, there's plenty of space underneath for moving things around without any obstacles.

• Height Under Boom: The height under the boom is on hold for now, so it'll be just right for whatever you need to lift.

• Beam Size: Built sturdy with an S8 x 18.4# beam, it provides solid support for your lifting jobs.

• Flange Width: The 4-inch flange width ensures everything stays securely in place while you work, keeping things stable and safe.

• Mast Diameter: With a mast diameter of 12 inches, it's built to handle whatever you throw at it, providing stability and reliability.

• Total Height: Standing tall at 12 feet 8 inches, it fits right into your indoor space while still giving you plenty of room to maneuver.

• Overturning Moment: Engineered to handle external forces, it's got an overturning moment of 227000 in-lbs, ensuring it stays steady during your lifting tasks.

• Anchor Bolt Load: With an anchor bolt load of 4400 lbs, it stays firmly anchored to the ground, keeping everything safe and secure.

• Coating & Painting: Finished with a vibrant yellow spray paint coating, not only does it look good, but it also adds a layer of protection against corrosion, so it'll last for the long haul.

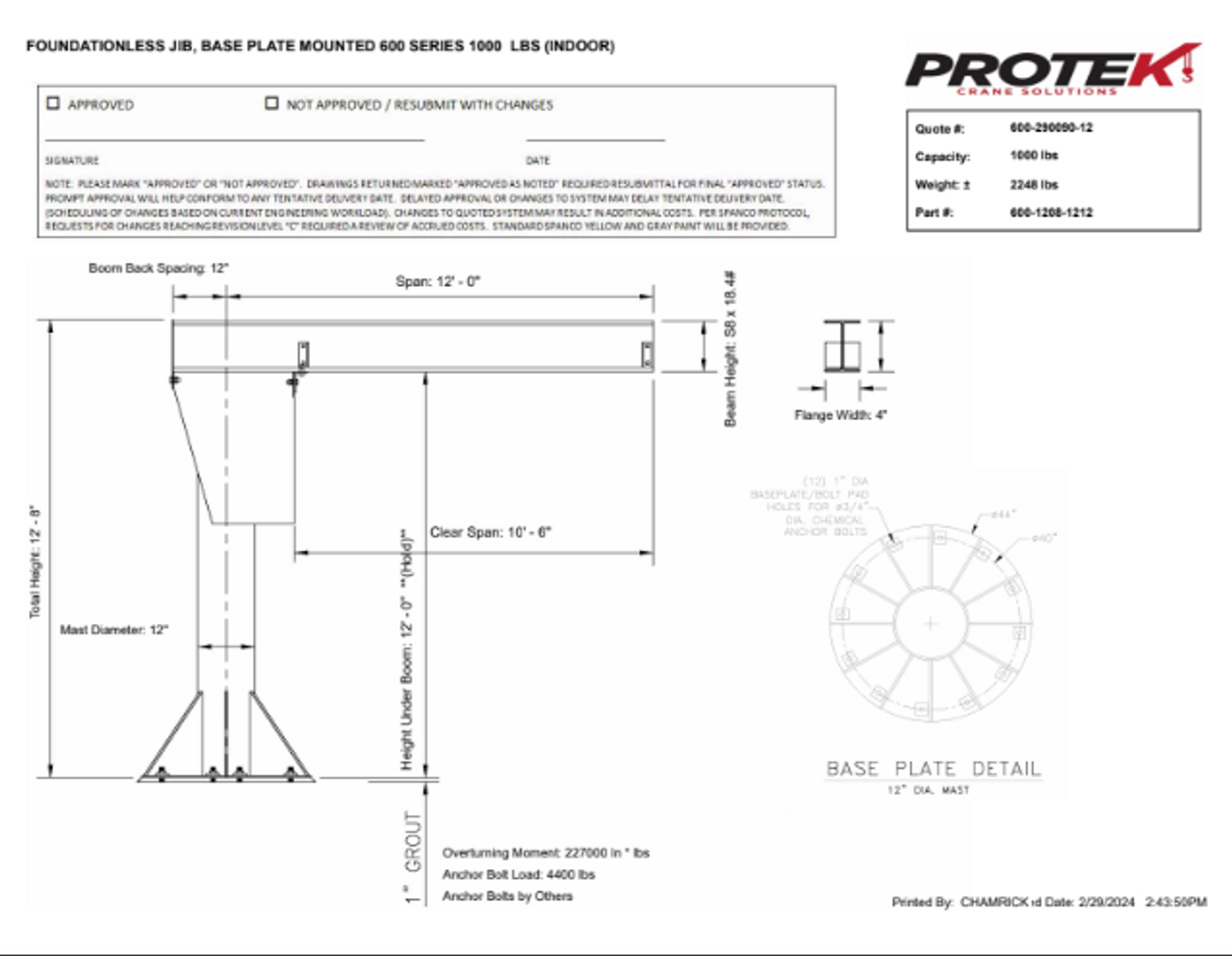

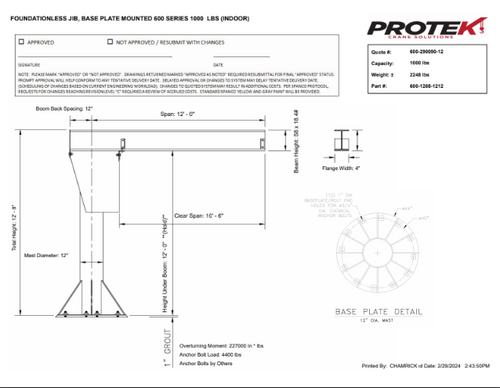

FOUNDATIONLESS JIB, BASE PLATE MOUNTED 600 SERIES 1000 LBS (INDOOR)
Capacity: 1000 lbs
Span: 12' - 0''
Clear Span: 10' - 6''
Height Under Boom: 12' - 0''
Beam Size: S8 x 18.4#
Flange Width: 4"
Mast Diameter: 12''
Total Height: 12' -8''
Overturning Moment: 227000 In * lbs
Anchor Bolt Load: 4400 lbs
Coating & Painting: PAINT, SPRAY YELLOW
