Product Overview
- Type: Foundationless Jib, Base Plate Mounted 600 Series
- Capacity: With a capacity of 1000 lbs, this jib is designed for indoor use, offering reliable lifting support for moderate loads.
- Span: The jib has a span of 10 feet, providing extensive coverage and flexibility for lifting operations within its range.
- Clear Span: Featuring a clear span of 8 feet 6 inches, this jib ensures unobstructed movement of loads during lifting tasks.
- Height Under Boom: The height under the boom is 12 feet, allowing ample vertical clearance for lifting loads to the desired elevation.
- Beam Size: Constructed with an S8 x 18.4# beam, the jib offers structural stability and strength to handle the specified load capacity.
- Flange Width: The beam has a flange width of 4 inches, contributing to its load-bearing capacity and overall durability.
- Mast Diameter: The mast diameter is 12 inches, providing robust support and stability for the jib assembly.
- Total Height: The total height of the jib, including the mast and boom, is 12 feet 8 inches, ensuring sufficient elevation for lifting tasks.
- Overturning Moment: Designed to withstand an overturning moment of 186,000 in-lbs, this jib ensures structural integrity and safety during operation.
- Anchor Bolt Load: The anchor bolt load is rated at 4400 lbs, ensuring secure attachment and stability when mounted to the base plate.
- Coating & Painting: Coated with yellow spray paint, this jib offers corrosion resistance and high visibility, enhancing safety and aesthetics in indoor environments.

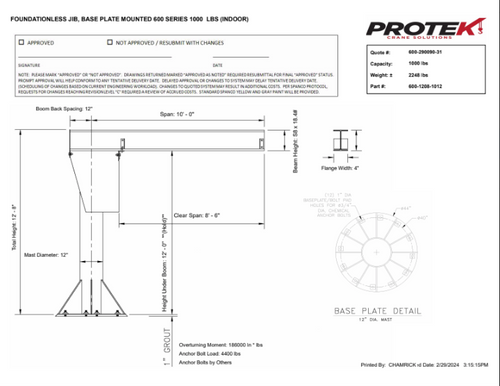

FOUNDATIONLESS JIB, BASE PLATE MOUNTED 600 SERIES 1000 LBS (INDOOR)
Capacity: 1000 lbs
Span: 10' - 0''
Clear Span: 8' - 6''
Height Under Boom: 12' - 0''
Beam Size: S8 x 18.4#
Flange Width: 4"
Mast Diameter: 12''
Total Height: 12' - 8''
Overturning Moment: 186000 In * lbs
Anchor Bolt Load: 4400 lbs
Coating & Painting: PAINT, SPRAY YELLOW
