Product Overview

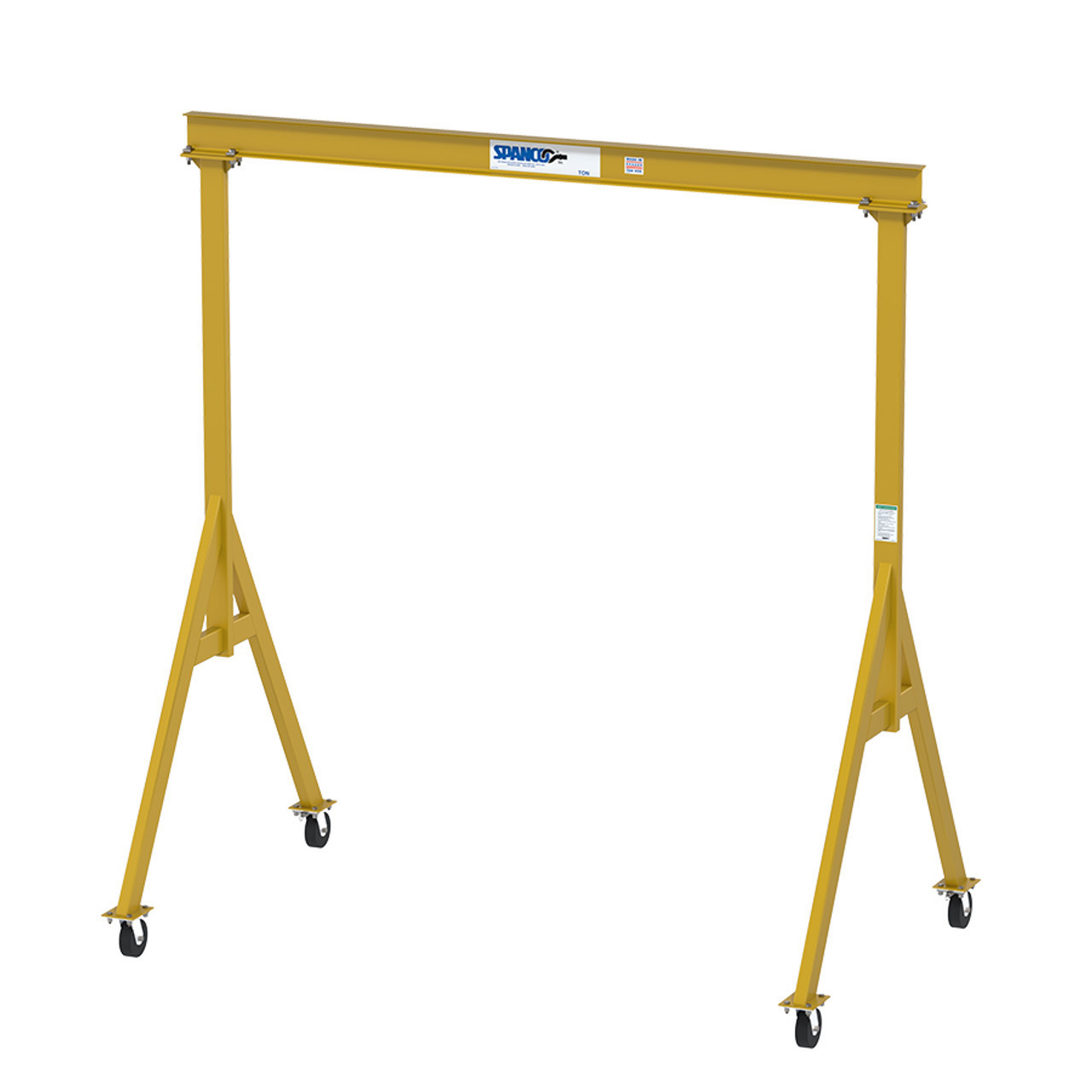

Gantry Crane - A Series Steel Fixed Height
With a lifting capacity of 5 tons and a clear span of 8' 7", this fixed height steel gantry crane offers an economical solution for portable heavy lifting. Its design provides the flexibility to be relocated between workstations as needed or easily rolled out of the way when not in use.
The A-Series gantry crane features vertical leg supports without brace legs under the I-beam, maximizing the clear span available for your maintenance, assembly, or materials transfer applications. This optimized design enhances workspace efficiency and ensures unobstructed maneuverability.
Equipped with smooth rolling, non-marking polyurethane wheels, the crane ensures seamless movement across various surfaces. The 8'' Polyurethane Tread Casters with four-position swivel locks contribute to the crane's stability and security during lifting operations.
Specifications:
- Height Adjustment Type: Steel Fixed Height
- Capacity: 10,000 lbs (5 tons)
- Overall Span: 10'-0''
- Clear Span: 8'-7''
- Height Under Beam: 15' - 10''
- Wheel Tread: 6' - 6''
- Beam Size: S10X25.4#
- Flange Width: 4-5/8"
- Casters: 8'' Polyurethane Tread with 4 Position Swivel Locks
- Coating & Painting: Yellow Spray Paint
Choose the A Series Steel Fixed Height Gantry Crane for a reliable and cost-effective solution for your heavy lifting needs. Contact us for more details or to discuss customization options based on your specific requirements.
