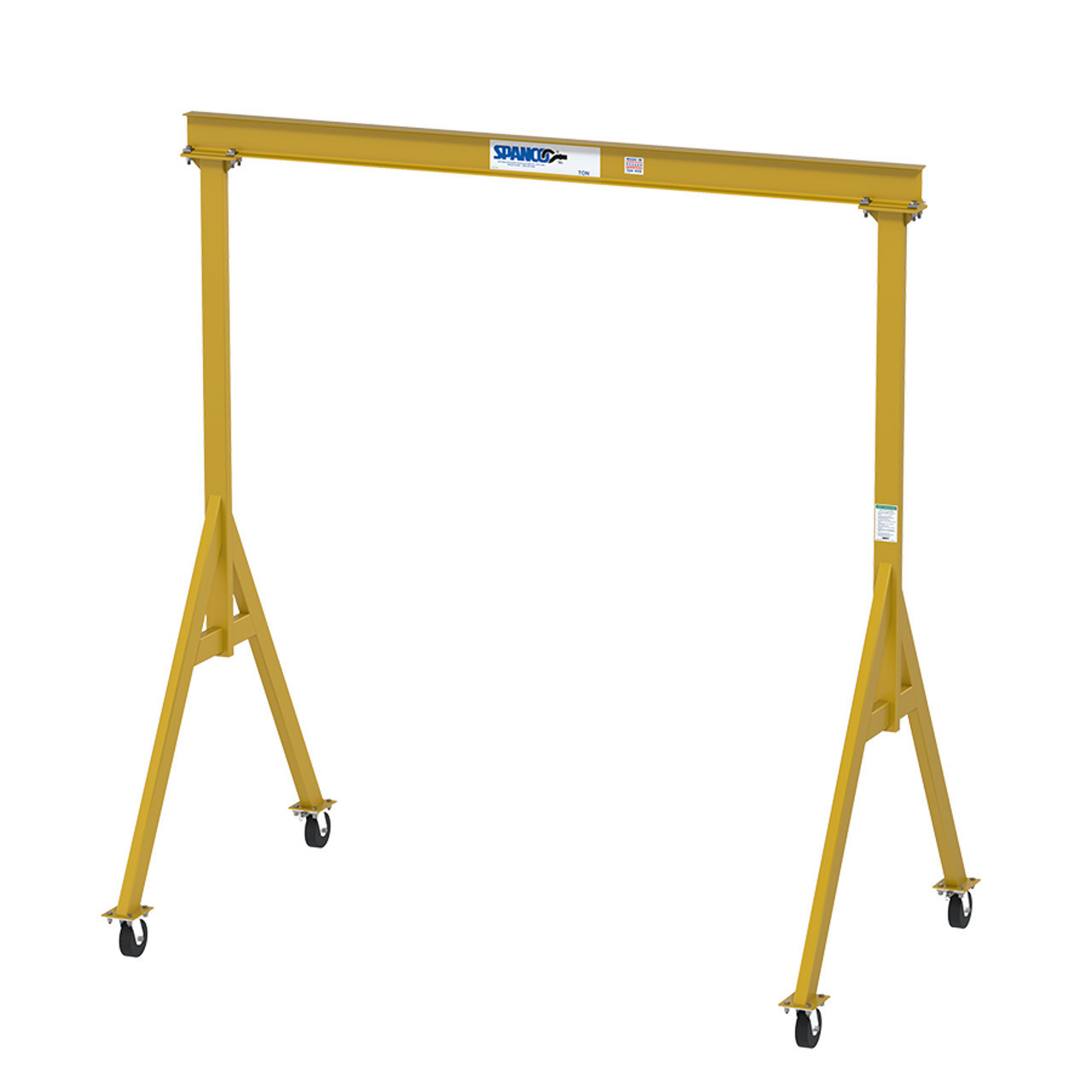

7F1016 GANTRY 7.5 TON 10' SPAN 16' HIGHT A SERIES STEEL FIXED HEIGHT SPANCO

Product Overview

With a capacity of 7.5 tons and a clear span of 8' 7", this fixed height steel gantry crane is an economical solution for portable heavy lifting. It gives you the flexibility to relocate it between workstations as needed or roll it out of the way entirely when you're not using it. The A-Series gantry crane uses vertical leg supports without brace legs under the I-beam; this maximizes the clear span available for your maintenance, assembly, or materials transfer application. Smooth rolling, non-marking polyurethane wheels have four-position swivel locks to hold the crane in position during lifting operations.

Product: Gantry - A Series Steel Fixed Height

• Height Adjustment Type: Steel Fixed Height
• Capacity: 15,000 lbs
• Overall Span: 10'-0''
• Clear Span: 8'-7''
• Height Under Beam: 16' - 0''
• Wheel Tread: 6' - 6''
• Beam Size: S12X31.8#
• Flange Width: 5"
• Overall Height: 17' - 0''
• Casters: 12'' Polyurethane Tread with 4 Position Swivel Locks
• Coating & Painting: Yellow Spray Paint

Key Features and Benefits:

1. High Load Capacity: With a robust design and a capacity of 15,000 lbs, the Gantry - A Series Steel Fixed Height ensures efficient handling of heavy loads in various industrial applications.
2. Compact Design: The gantry's overall span of 10'-0'' and clear span of 8'-7'' make it well-suited for operations where space efficiency is crucial.
3. Versatile Height Adjustment: The steel fixed height with a height under the beam of 16' - 0'' provides versatility for different material handling needs.
4. Durable Construction: Built with a sturdy S12X31.8# beam and a 5" flange width, this gantry crane is designed to withstand the rigors of demanding work environments.
5. Smooth Mobility: Equipped with 12'' Polyurethane Tread Casters featuring 4 Position Swivel Locks, the gantry crane ensures precise movement and positioning.
6. Safety Assurance: The bright yellow spray paint coating enhances visibility, contributing to a safer working environment. This gantry crane adheres to high safety standards.

Choose the Gantry - A Series Steel Fixed Height for a reliable and durable solution that meets your material handling requirements. Feel free to contact us for further details or customization options tailored to your specific needs.
