1ALU2010 GANTRY CRANE - 1 TON, 20' SPAN, A SERIES ALUMINUM ADJUSTABLE HEIGHT Min: 8' - 11'' Max: 11' - 5'' SPANCO

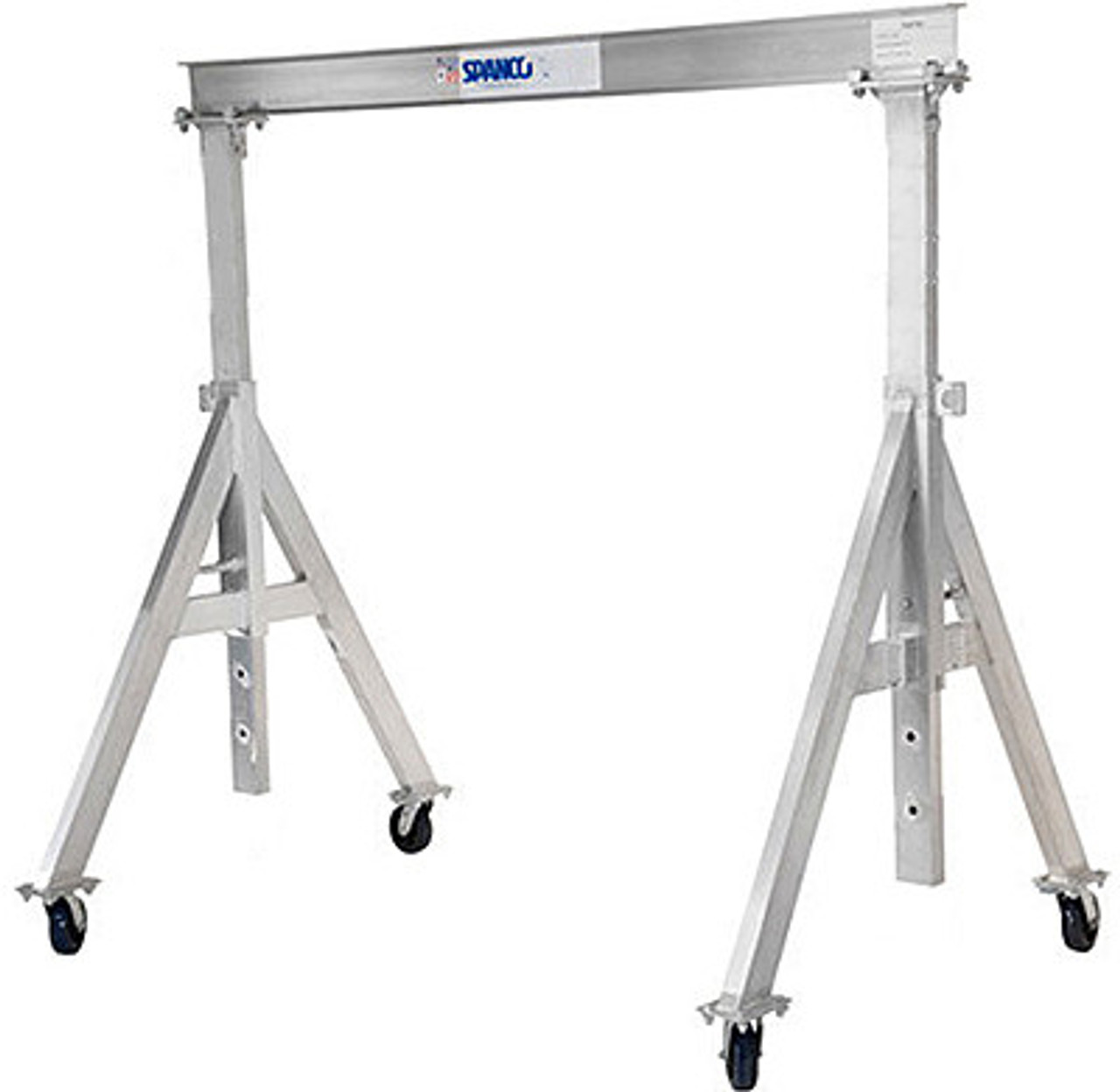

Introducing the Spanco 1ALU2010 Aluminum Gantry Crane – Elevate Your Lifting Experience:

Unlock the pinnacle of lifting efficiency with the Spanco 1ALU2010 Aluminum Gantry Crane, a masterfully designed solution built for the seamless lifting and transportation of loads weighing up to 2,000 lbs. This lightweight and corrosion-resistant crane redefine mobility, allowing one or two operators to effortlessly assemble, disassemble, and move the equipment, catering to those seeking a highly mobile overhead lifting solution.

Key Features:

1. Adaptable Height Adjustment: Precision meets flexibility with the height adjustment mechanism operating in 6-inch increments, offering an under-beam height range of 7’10” to 10’4". The optional height adjustment kit, equipped with spring-loaded steel locking pins, ensures a secure setup, automatically engaging at height positioning holes.

2. Compact Transport: Experience unparalleled versatility with an adjustable span feature that allows the crane to be efficiently shortened for easy transport in narrow spaces, offering a blend of agility and efficiency.

3. Enhanced Floor Protection: Equipped with 4-position, swivel-lock casters featuring mold-on polyurethane wheels, the crane prioritizes floor protection during operation, reducing the risk of damage and ensuring a smooth lifting experience.

4. Industry Standards Compliance: Rest assured in the knowledge that the Spanco 1ALU2010 Aluminum Gantry Crane meets OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards, delivering safety, reliability, and adherence to the highest industry benchmarks.

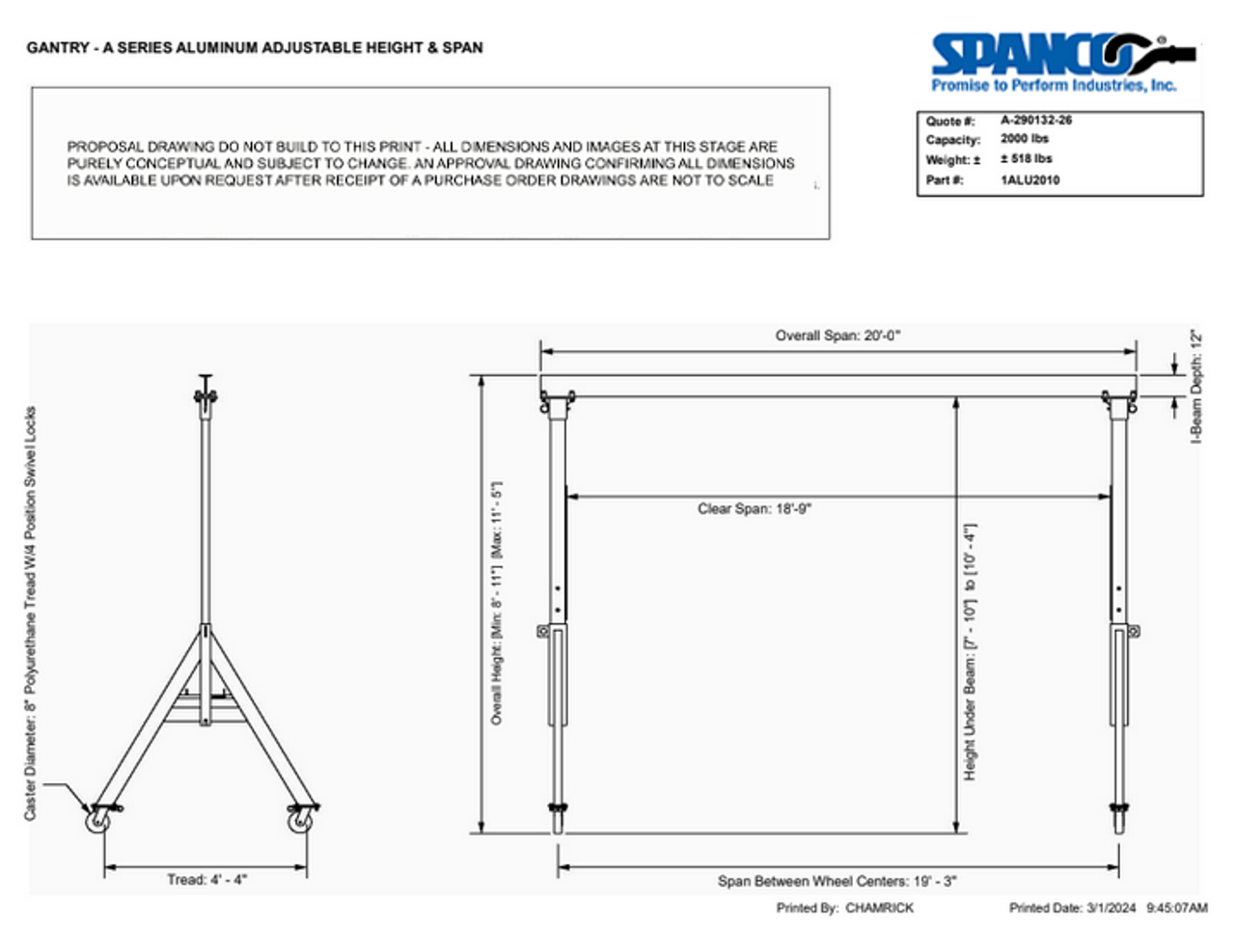

Technical Specifications:

• Capacity: 2000 lbs
• Overall Span: 20'-0''
• Clear Span: 18'-9''
• Height Under Beam: 7' - 10'' to 10' - 4''
• Overall Height: Min: 8' - 11'' Max: 11' - 5''
• Wheel Tread: 4' - 4''
• Beam Size: ALU12X10.99#
• Flange Width: 5"
• Casters: 8'' Polyurethane Tread W/4 Position Swivel Locks
• Coating & Painting: Aluminum

Elevate your lifting operations with the Spanco 1ALU2010 Aluminum Gantry Crane, where innovation, efficiency, and compliance converge for a superior lifting experience.
