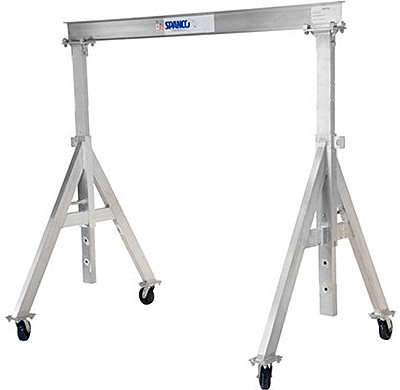

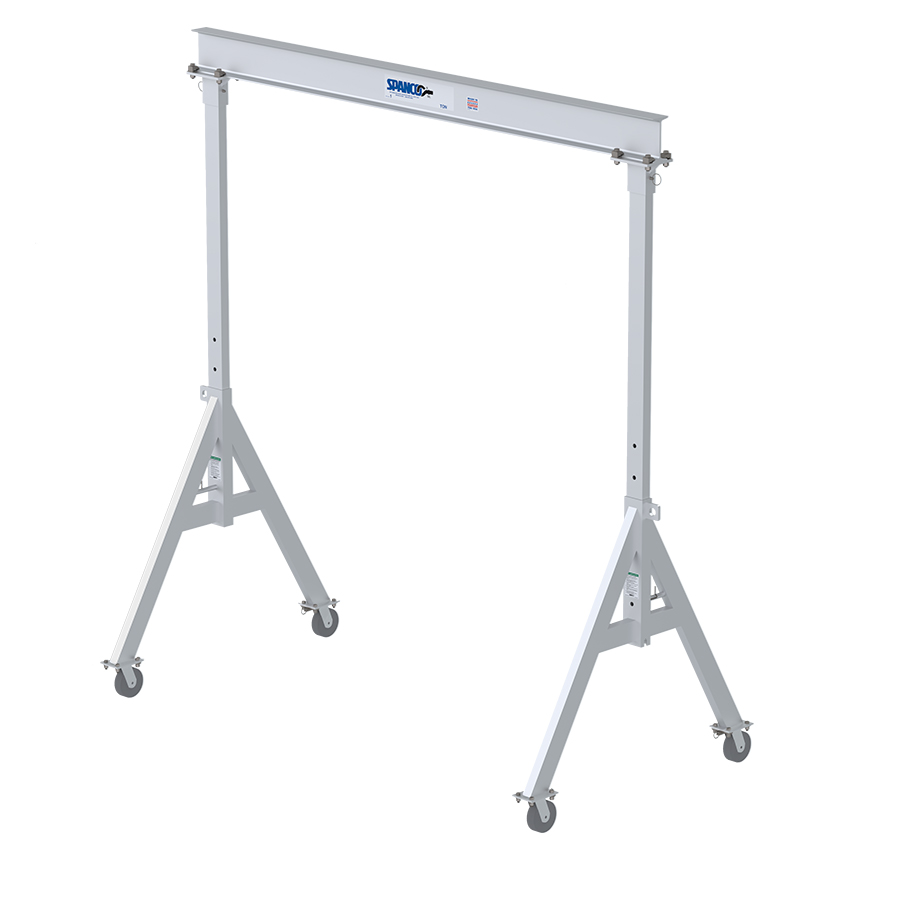

1ALU1010 GANTRY CRANE - 1 TON, 10' SPAN, A SERIES ALUMINUM ADJUSTABLE HEIGHT Min: 8' - 3'' Max: 10' - 9'' SPANCO

Elevate Your Operations with the Spanco 1ALU1010 Aluminum Gantry Crane – A Lightweight, Mobile, and Corrosion-Resistant Solution:

1ALU1010 GANTRY - A Series Aluminum Adjustable Height & Span

Professional Features:

1. Lightweight and Durable:

   • Crafted with high-quality aluminum, the crane offers a lightweight yet durable solution for lifting and transporting loads up to 2,000 lbs.
   • Ideal for operators seeking mobility without compromising strength.

2. Effortless Assembly and Mobility:

   • Designed to be assembled, disassembled, and moved by one or two workers, providing a highly mobile solution for overhead lifting equipment.

3. Precision Height Adjustments:

   • Height adjusts in 6-inch increments, allowing operators precise control over lifting operations.
   • Under-beam height ranges from 7'7" to 10'1", catering to a variety of lifting needs.

4. Optional Height Adjustment Kit:

   • Features spring-loaded steel locking pins that automatically engage at height positioning holes, ensuring a secure and stable lifting experience.

5. Adaptable Span Technology:

   • Adjustable span allows the crane to be shortened for transport in narrow spaces, providing versatility in various operational environments.

6. Enhanced Floor Protection:

   • Equipped with 4-position, swivel-lock casters featuring mold-on polyurethane wheels, ensuring improved floor protection during operation.

7. Compliance with Industry Standards:

   • Meets OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards, ensuring adherence to industry benchmarks for safety and performance.

Technical Specifications:

• Capacity: 2000 lbs
• Overall Span: 10'-0''
• Clear Span: 8'-10''
• Height Under Beam: 7' - 7'' to 10' - 1''
• Overall Height: Min: 8' - 3'' Max: 10' - 9''
• Wheel Tread: 4' - 6''
• Beam Size: ALU8X6.35#
• Flange Width: 4"
• Casters: 6'' Polyurethane Tread W/4 Position Swivel Locks
• Coating & Painting: Aluminum

Summary: The Spanco 1ALU1010 Aluminum Gantry Crane offers a perfect balance of mobility, strength, and precision. With features like adjustable height, an optional height adjustment kit, and compliance with industry standards, it stands as a versatile and reliable solution for professionals. Experience the convenience of highly mobile overhead lifting equipment with the 1ALU1010 – your gateway to efficient and secure lifting operations.
