Product Overview

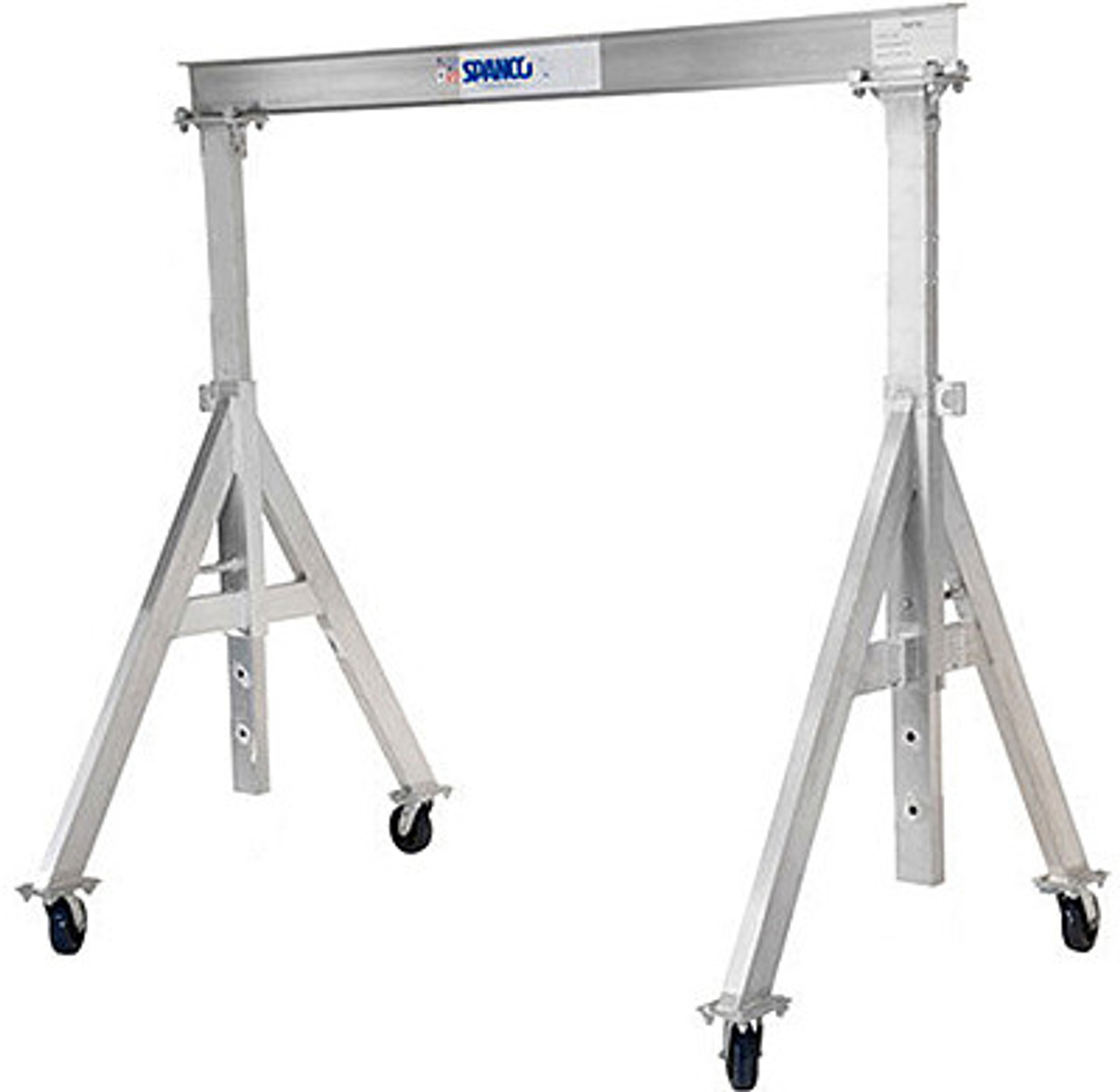

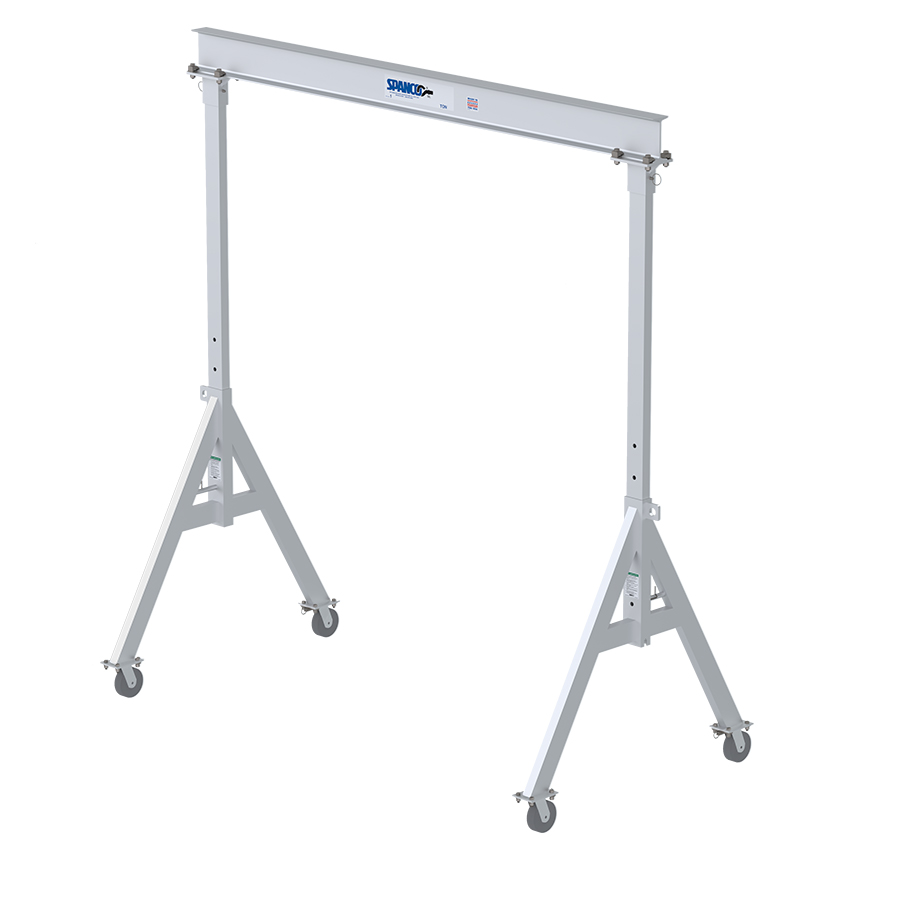

Elevate Your Lifting Operations with the Spanco 1ALU0810 Aluminum Gantry Crane: A Mobile, Lightweight, and Corrosion-Resistant Solution
1ALU0810 GANTRY - A Series Aluminum Adjustable Height & Span
Key Features:
-
Lightweight and Corrosion-Resistant Construction:
- Crafted from high-quality aluminum, the crane provides a lightweight yet robust solution for lifting and transporting loads up to 2,000 lbs.
- Corrosion-resistant design ensures longevity, even in challenging environments.
-
Effortless Assembly and Mobility:
- Designed for easy assembly, disassembly, and movement by one or two workers, catering to operators requiring highly mobile overhead lifting equipment.
-
Precise Height Adjustments:
- Height adjusts in 6-inch increments, providing operators with precise control over lifting operations.
- Under-beam height ranges from 7'7" to 10'1", offering versatility in various lifting scenarios.
-
Optional Height Adjustment Kit:
- Equipped with a height adjustment kit featuring spring-loaded steel locking pins that automatically engage when reaching height positioning holes.
- Ensures a secure and stable lifting experience.
-
Adaptable Span Technology:
- Adjustable span allows the crane to be shortened, facilitating transport in narrow spaces and enhancing overall operational flexibility.
-
Enhanced Floor Protection:
- Standard with 4-position, swivel-lock casters featuring mold-on polyurethane wheels for improved floor protection during crane movement.
-
Industry-Compliant Design:
- Meets OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards, ensuring adherence to industry safety and performance benchmarks.
Technical Specifications:
- Capacity: 2000 lbs
- Overall Span: 8'-0''
- Clear Span: 6'-10''
- Height Under Beam: 7' - 7'' to 10' - 1''
- Overall Height: Min: 8' - 1'' Max: 10' - 7''
- Wheel Tread: 4' - 6''
- Beam Size: ALU6X4.3#
- Flange Width: 3-3/8"
- Casters: 6'' Polyurethane Tread W/4 Position Swivel Locks
- Coating & Painting: Aluminum
Summary: The Spanco 1ALU0810 Aluminum Gantry Crane is the pinnacle of mobility and precision. With features like adjustable height, an optional adjustment kit, and compliance with industry standards, it stands as a reliable solution for professionals seeking secure and efficient overhead lifting equipment. Experience the freedom of movement without compromising on strength with the 1ALU0810.
