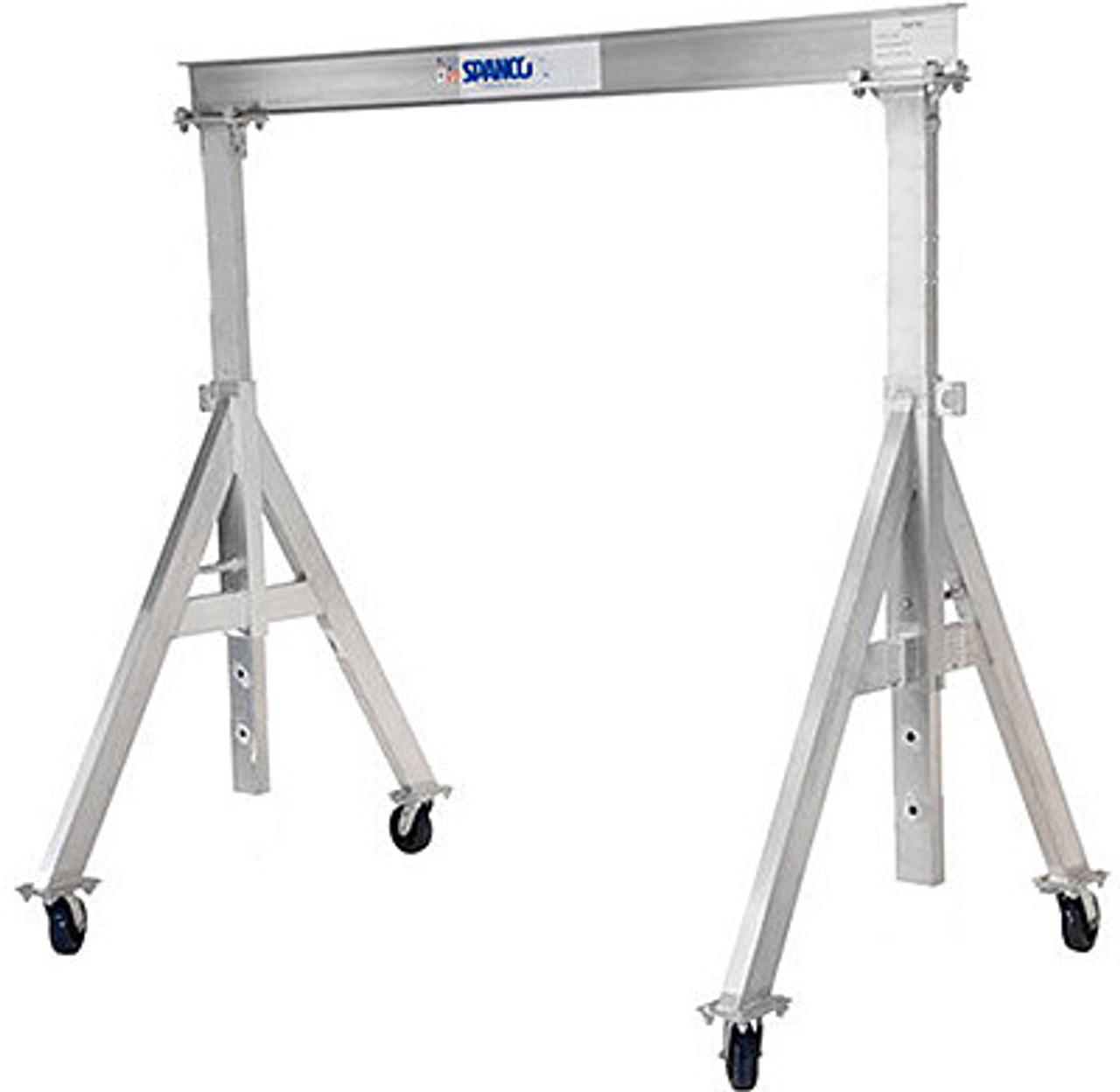

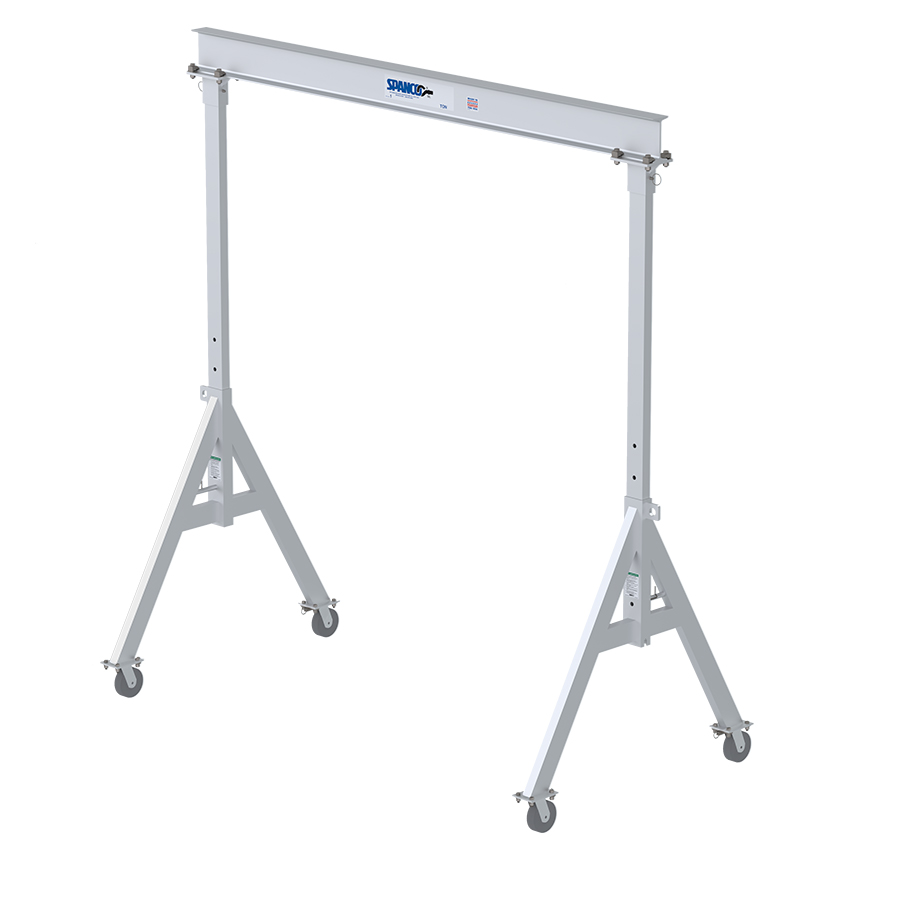

1ALU0808 GANTRY CRANE - 1 TON, 8' SPAN, A SERIES ALUMINUM ADJUSTABLE HEIGHT Min: 6' - 1'' Max: 8' - 7'' SPANCO

Elevate Your Lifting Operations with the Enhanced Spanco 1ALU0808 Aluminum Gantry Crane - Setting the Standard for Mobility and Efficiency:

Key Features:

1. Lightweight and Corrosion-Resistant Design:

   • Crafted from high-quality materials, the Spanco 1ALU0808 Aluminum Gantry Crane combines a lightweight structure with superior corrosion resistance.
   • Ideal for lifting and transporting loads weighing up to 2,000 lbs.

2. Effortless Assembly and Mobility:

   • Designed for convenience the 1ALU0808, one or two operators can easily assemble, disassemble, and move the crane.
   • Perfect for applications requiring high mobility in overhead lifting operations.

3. Precision Height Adjustment:

   • Height adjustment in 6-inch increments ensures precise control over the lifting process.
   • Under-beam height ranges from 5’7” to 8’1” for versatile applications.
   • Optional height adjustment kit features spring-loaded steel locking pins that automatically engage at height positioning holes.

4. Adaptable Span Technology:

   • The crane features an adjustable span, allowing easy shortening for transport in narrow spaces.
   • Enhances adaptability to various operational environments.

5. Enhanced Floor Protection:

   • Equipped with 4-position, swivel-lock casters featuring mold-on polyurethane wheels.
   • Prioritizes floor protection during operation, ensuring a smooth lifting experience and minimizing the risk of floor damage.

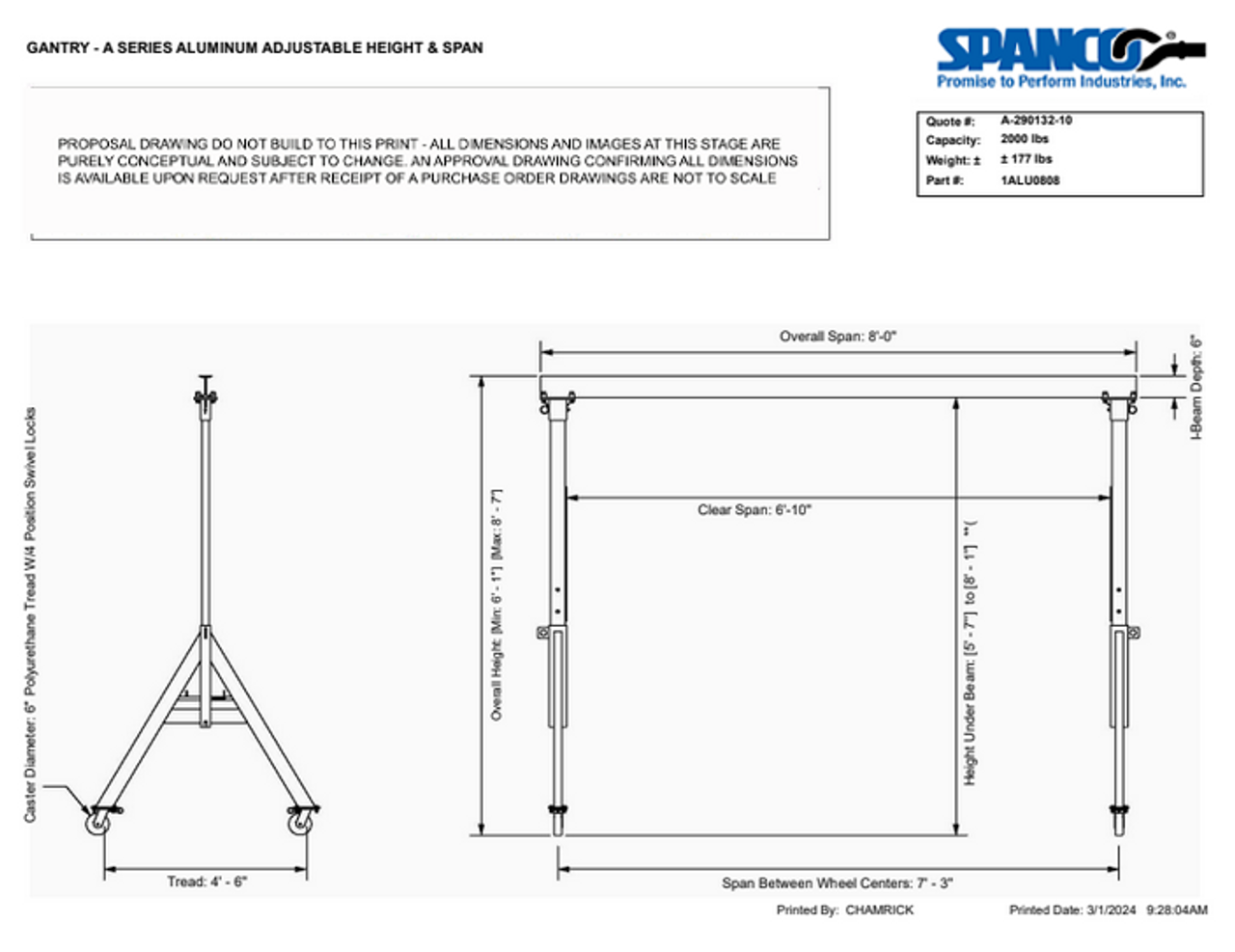

Technical Specifications:

• Capacity: 2000 lbs
• Overall Span: 8'-0''
• Clear Span: 6'-10''
• Height Under Beam: 5' - 7'' to 8' - 1''
• Overall Height: Min: 6' - 1'' Max: 8' - 7''
• Wheel Tread: 4' - 6''
• Beam Size: ALU6X4.3#
• Flange Width: 3-3/8"
• Casters: 6'' Polyurethane Tread W/4 Position Swivel Locks
• Coating & Painting: Aluminum

Compliance Standards:

• Meets OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards.

The Spanco 1ALU0808 Aluminum Gantry Crane is a versatile and efficient solution for your lifting needs. Whether you require ease of assembly, precise height adjustments, or adaptability in various environments, this crane delivers unmatched performance. Prioritizing both mobility and floor protection, it is the go-to choice for operators seeking top-tier lifting equipment. Elevate your operations with the unmatched efficiency of the Spanco 1ALU0808 Aluminum Gantry Crane.
