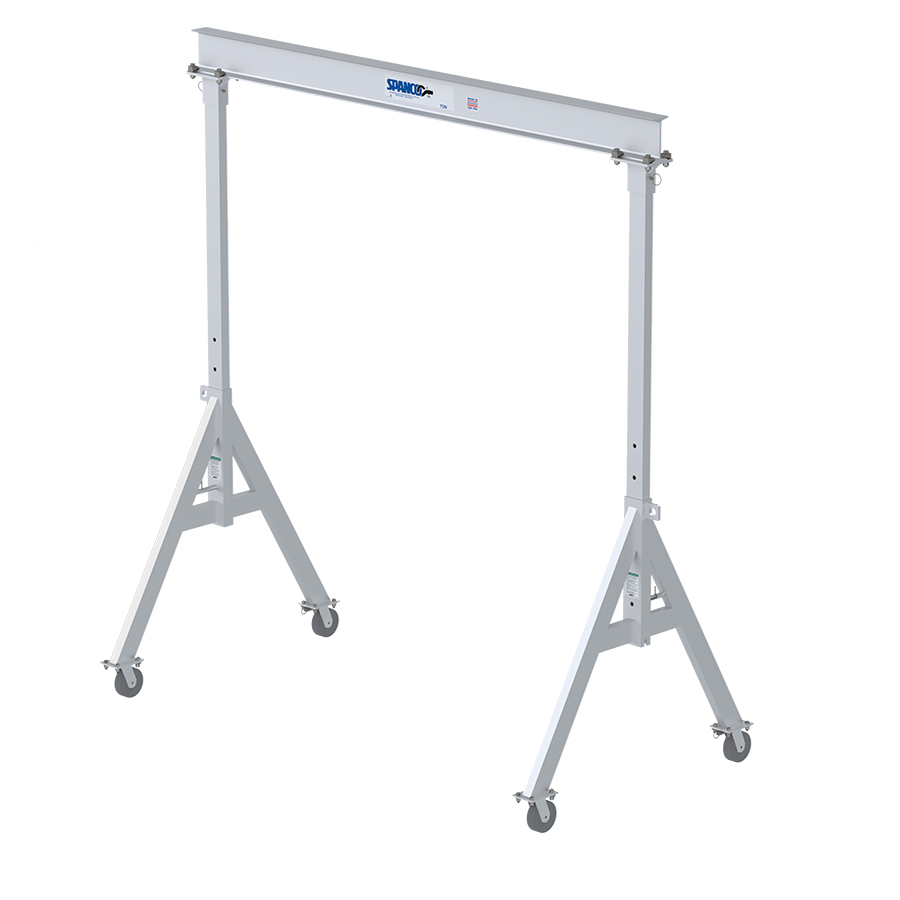

1ALU1210 GANTRY CRANE - 1 TON, 12' SPAN, A SERIES ALUMINUM ADJUSTABLE HEIGHT Min: 8' - 3'' Max: 10' - 9'' SPANCO

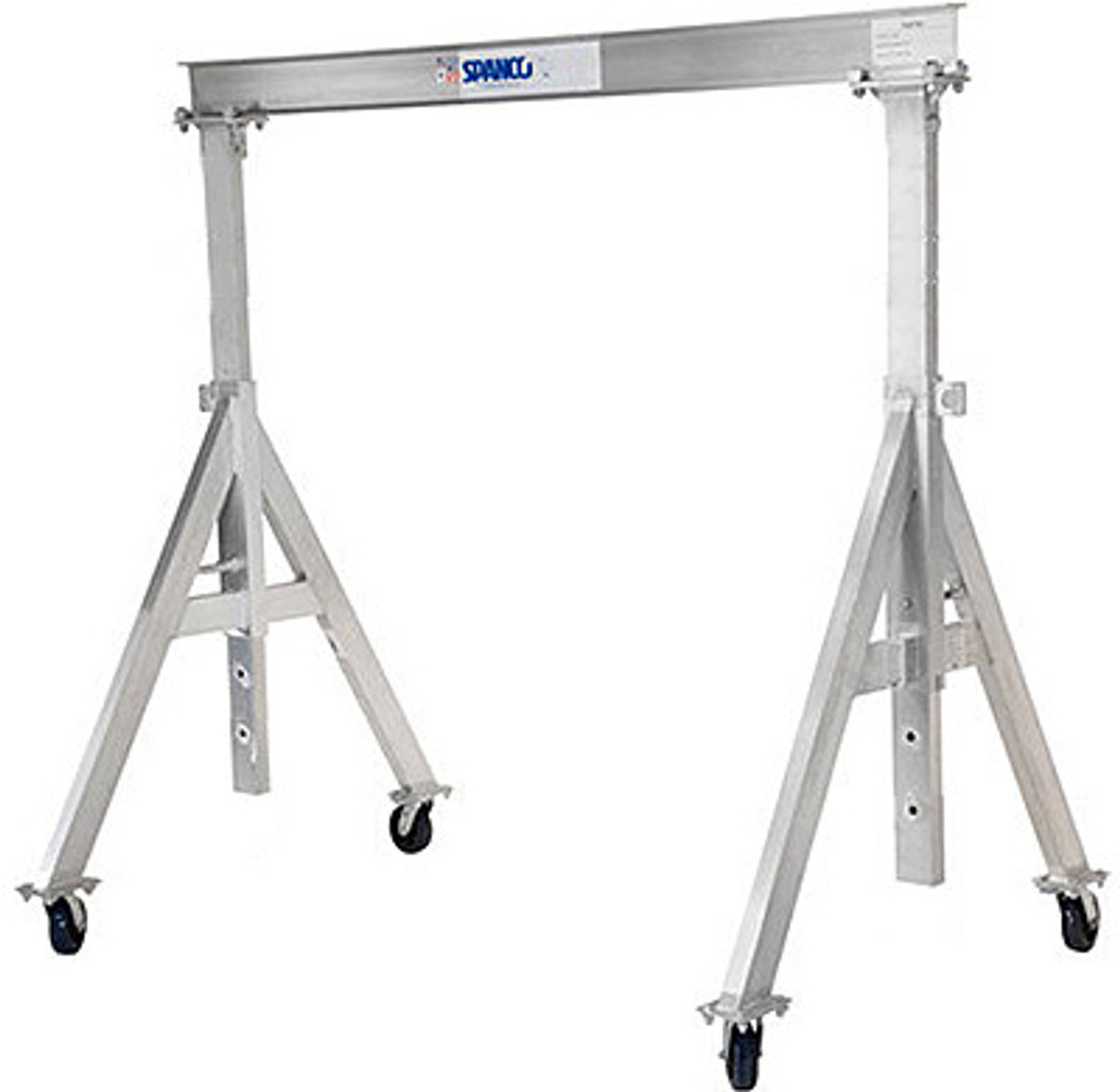

Introducing the Spanco 1ALU1210 Aluminum Gantry Crane - Your Ultimate Solution for Lightweight Efficiency:

Embrace unmatched efficiency in lifting and transporting operations with the state-of-the-art Spanco 1ALU1210 Aluminum Gantry Crane. Engineered to be lightweight yet robust, this crane is a corrosion-resistant powerhouse capable of effortlessly handling loads up to 2,000 lbs. Designed with the needs of highly mobile overhead lifting operators in mind, the 1ALU1210 combines technological innovation with user-friendly features for unparalleled performance.

Key Features:

1. Lightweight and Corrosion-Resistant: Crafted from high-quality materials, the crane provides a lightweight solution without compromising on durability. Its corrosion-resistant properties ensure a longer lifespan, making it suitable for a variety of environments.

2. Effortless Assembly and Mobility: Designed to cater to the demands of dynamic operations, the crane allows one or two operators to easily assemble, disassemble, and move the equipment. This feature is particularly beneficial for those seeking high mobility in their lifting operations.

3. Precision Height Adjustment: The height adjustment mechanism operates with precision in 6-inch increments, offering an under-beam height range of 7’7” to 10’1". The optional height adjustment kit, equipped with spring-loaded steel locking pins, ensures a secure setup by automatically engaging when height positioning holes are reached.

4. Adaptive Span Technology: The crane features an adjustable span, allowing for efficient shortening to facilitate transport in narrow spaces. This adaptability ensures smooth navigation through various operational environments.

5. Enhanced Floor Protection: Equipped with 4-position, swivel-lock casters featuring mold-on polyurethane wheels, the crane prioritizes floor protection during operation. This not only guarantees a smooth lifting experience but also minimizes the risk of floor damage.

Technical Specifications:

• Capacity: 2000 lbs
• Overall Span: 12'-0''
• Clear Span: 10'-10''
• Height Under Beam: 7' - 7'' to 10' - 1''
• Overall Height: Min: 8' - 3'' Max: 10' - 9''
• Wheel Tread: 4' - 6''
• Beam Size: ALU8X6.35#
• Flange Width: 4"
• Casters: 6'' Polyurethane Tread W/4 Position Swivel Locks
• Coating & Painting: Aluminum

Experience the future of lifting technology with the Spanco 1ALU1210 Aluminum Gantry Crane - where lightweight design meets uncompromised performance for a superior lifting experience.
