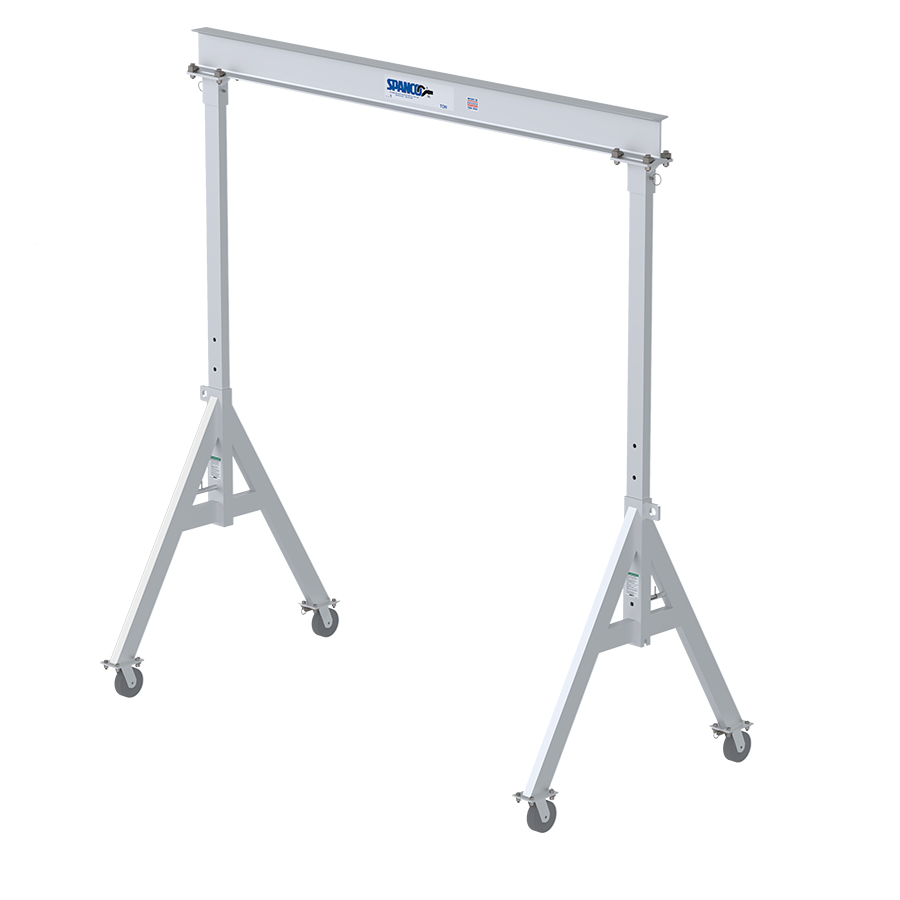

1ALU1512 GANTRY CRANE - 1 TON, 15' SPAN, A SERIES ALUMINUM ADJUSTABLE HEIGHT Min: 10' - 5'' Max: 12' - 11'' SPANCO

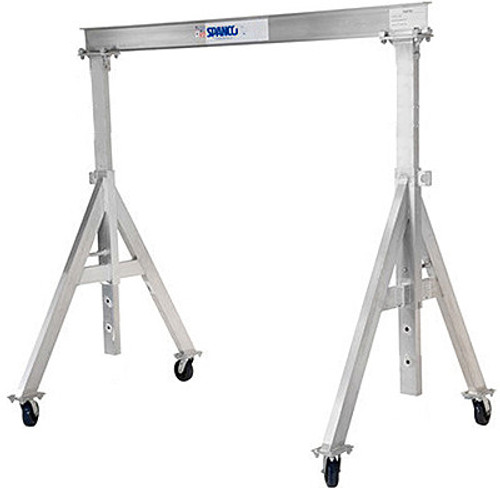

Introducing the Versatile Spanco 1ALU1512 Aluminum Gantry Crane - Setting the Standard for Lightweight Efficiency:

Unleash the power of innovation with the Spanco 1ALU1512 Aluminum Gantry Crane, a cutting-edge solution meticulously designed for the seamless lifting and transportation of loads up to 2,000 lbs. This crane stands out as a testament to lightweight efficiency, catering to the dynamic needs of operators seeking a highly mobile overhead lifting solution.

Key Features:

1. Lightweight and Corrosion-Resistant: Crafted from high-quality materials, this crane offers a lightweight yet robust design, ensuring optimal performance in lifting and transporting loads. Its corrosion-resistant properties guarantee longevity and reliability in diverse operational environments.

2. Effortless Assembly and Mobility: A beacon of convenience, this crane empowers one or two operators to effortlessly assemble, disassemble, and move the equipment. This feature caters to operators requiring high mobility in their overhead lifting operations.

3. Precision Height Adjustment: The height adjustment mechanism operates with surgical precision in 6-inch increments, providing an under-beam height range of 9’7” to 12’1". The optional height adjustment kit, equipped with spring-loaded steel locking pins, ensures a secure setup by automatically engaging when height positioning holes are reached.

4. Adaptable Span for Compact Transport: The crane's adjustable span feature allows for efficient shortening, facilitating easy transport in narrow spaces. This adaptability ensures the crane can navigate various operational environments with ease.

5. Enhanced Floor Protection: Standard with 4-position, swivel-lock casters featuring mold-on polyurethane wheels, the crane prioritizes floor protection during operation. This not only ensures a smooth lifting experience but also minimizes the risk of floor damage.

6. Stringent Standards Compliance: The Spanco 1ALU1512 Aluminum Gantry Crane adheres to industry standards, including OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74. This commitment to compliance underscores its reliability and adherence to the highest industry benchmarks.

Technical Specifications:

• Capacity: 2000 lbs
• Overall Span: 15'-0''
• Clear Span: 13'-9''
• Height Under Beam: 9' - 7'' to 12' - 1''
• Overall Height: Min: 10' - 7'' Max: 13' - 1''
• Wheel Tread: 4' - 4''
• Beam Size: ALU12X10.99#
• Flange Width: 5"
• Casters: 8'' Polyurethane Tread W/4 Position Swivel Locks
• Coating & Painting: Aluminum

Experience the next level of lifting efficiency with the Spanco 1ALU1512 Aluminum Gantry Crane, where lightweight design meets uncompromised performance for a superior lifting experience.
