Product Overview

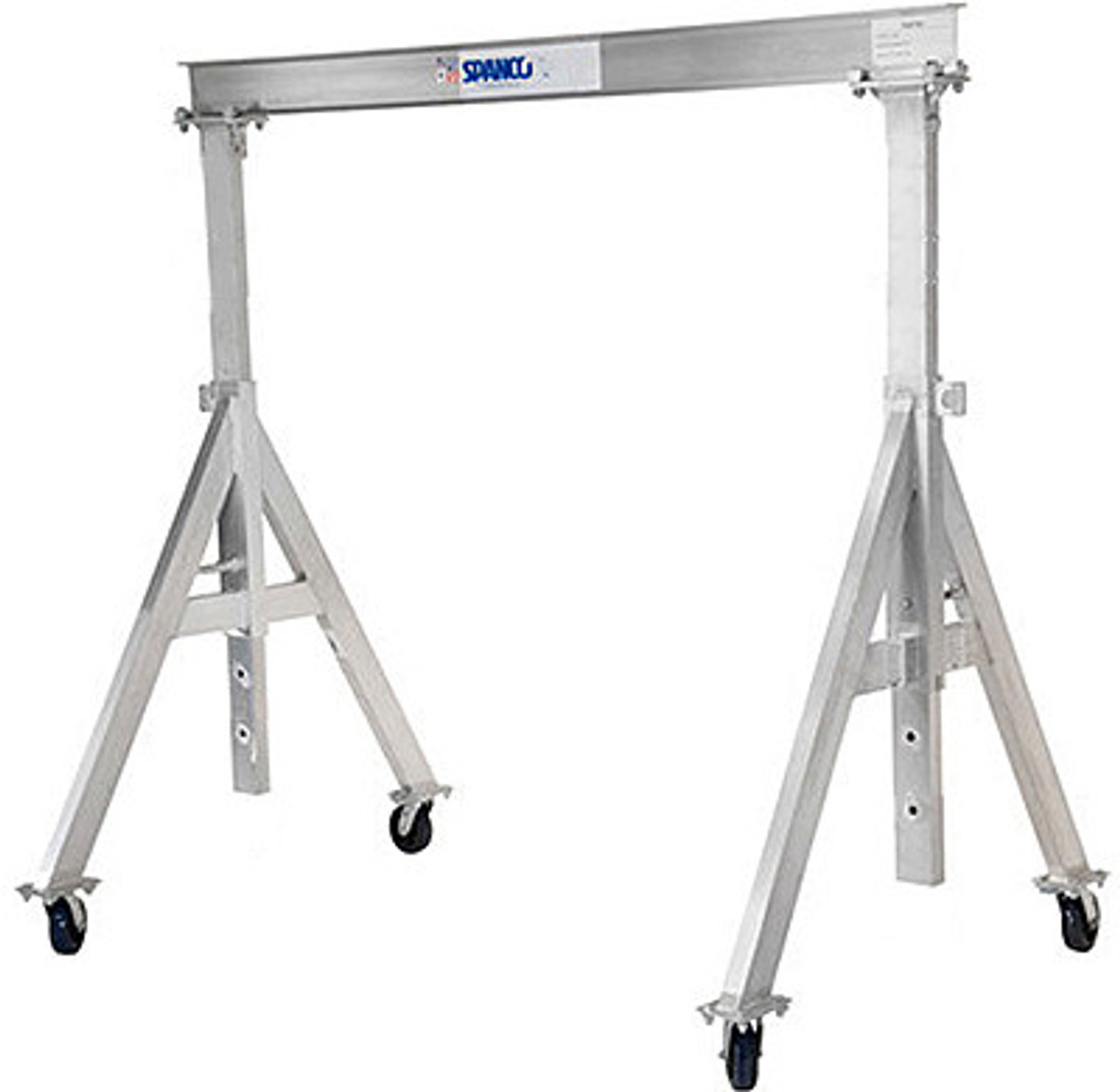

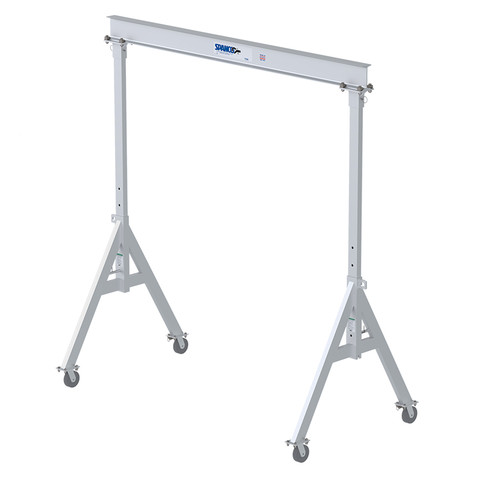

The Spanco 2ALU1512 Aluminum Gantry crane is designed to be a lightweight and corrosion-resistant solution for lifting and transporting loads up to 4,000 lbs. Its mobility is enhanced, as one or two workers can easily assemble, disassemble, and move the crane. The adjustable height, ranging from 9’10” to 12’4” in 6-inch increments, offers flexibility for various lifting scenarios.
The optional height adjustment kit includes spring-loaded steel locking pins that automatically engage at the desired height, ensuring stability during operation. Additionally, the crane features an adjustable span, allowing it to be shortened for efficient transport in narrow spaces.
Equipped with 4-position, swivel-lock casters with mold-on polyurethane wheels, the crane provides improved floor protection. The Spanco 2ALU1512 Aluminum Gantry crane complies with OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards, ensuring safety and reliability in various industrial settings.
2ALU1512 GANTRY - A SERIES ALUMINUM ADJUSTABLE HEIGHT & SPAN
Height Adjustment Type: Aluminum Adjustable Height
Capacity: 4000 lbs
Overall Span: 15'-0''
Clear Span: 13'-9''
Height Under Beam: 9' - 10'' to 12' - 4''
Overall Height: Min: 10' - 10'' Max: 13' - 4''
Wheel Tread: 4' - 4''
Beam Size: ALU12X10.99#
Flange Width: 5"
Casters: 8'' Polyurethane Tread W/4 Position Swivel Locks
Coating & Painting: Aluminum
Removeable 2-foot height extension kit included.
