Product Overview

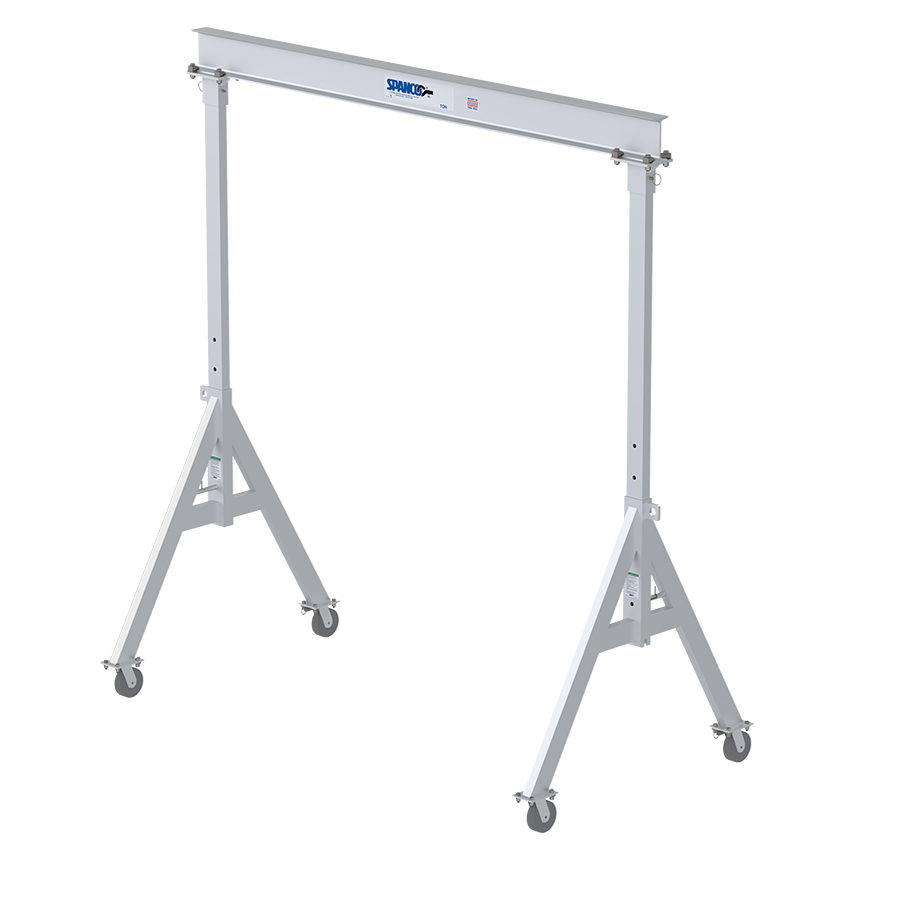

The Spanco 2ALU1212 Aluminum Gantry crane is a lightweight and corrosion-resistant solution designed for lifting and transporting loads weighing up to 4,000 lbs. Its mobility is a key feature, with the ability for one or two workers to easily assemble, disassemble, and move the crane, catering to operators in need of highly mobile overhead lifting equipment.
The crane's height adjusts in 6-inch increments, providing versatility with an under beam height range of 9’10” to 12’4". An optional height adjustment kit includes spring-loaded steel locking pins that automatically engage when height positioning holes are reached, ensuring stability during operation.
For increased adaptability in narrow spaces during transport, the crane features an adjustable span. It comes standard with 4-position, swivel-lock casters equipped with mold-on polyurethane wheels, contributing to improved floor protection.
Meeting OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards, the Spanco 2ALU1212 Aluminum Gantry crane provides a reliable and compliant lifting solution for various industrial applications.

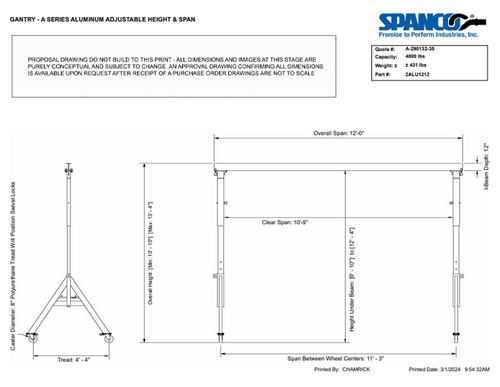

2ALU1212
GANTRY - A SERIES ALUMINUM ADJUSTABLE HEIGHT & SPAN
Height Adjustment Type: Aluminum Adjustable Height
Capacity: 4000 lbs
Overall Span: 12'-0''
Clear Span: 10'-9''
Height Under Beam: 9' - 10''to 12' - 4''
Overall Height: Min: 10' - 10'' Max: 13' - 4''
Wheel Tread: 4' - 4''
Beam Size: ALU12X10.99#
Flange Width: 5"
Casters: 8'' Polyurethane Tread W/4 Position Swivel Locks
Coating & Painting: Aluminum
Removeable 2-foot height extension kit included.
