Product Overview

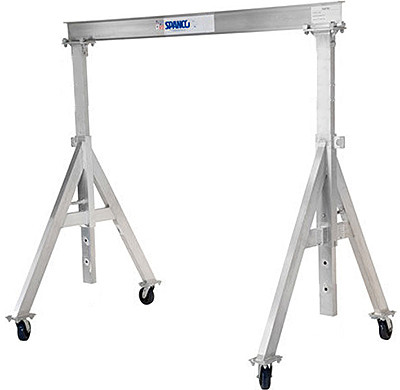

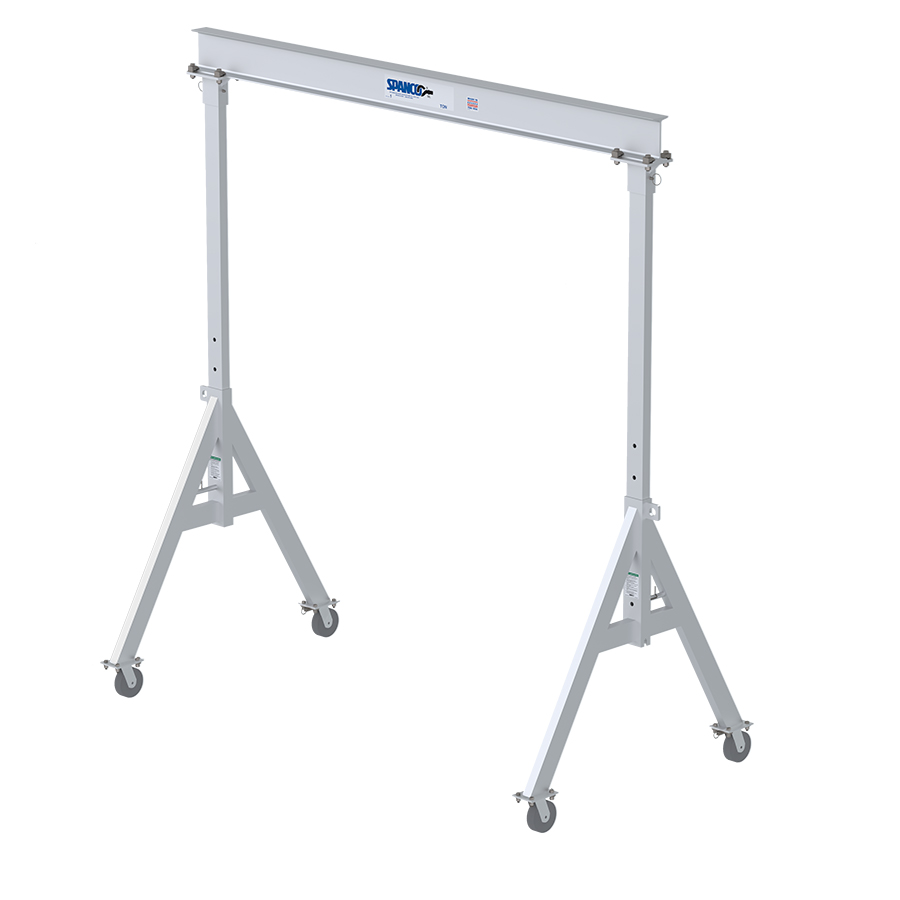

The Spanco 2ALU1208 Aluminum Gantry crane is a lightweight and corrosion-resistant solution designed for lifting and transporting loads weighing up to 4,000 lbs. Its high mobility, with the ability for one or two workers to easily assemble, disassemble, and move the crane, makes it a preferred choice for operators in need of highly mobile overhead lifting equipment.
The crane's height adjustment in 6-inch increments offers versatility, providing an under beam height range of 5’10” to 8’4". An optional height adjustment kit includes spring-loaded steel locking pins that automatically engage when height positioning holes are reached, ensuring stability during operation.
For enhanced adaptability during transport in narrow spaces, the crane features an adjustable span. It comes standard with 4-position, swivel-lock casters equipped with mold-on polyurethane wheels, contributing to improved floor protection.
Meeting OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards, the Spanco 2ALU1208 Aluminum Gantry crane provides a reliable and compliant lifting solution for various industrial applications.

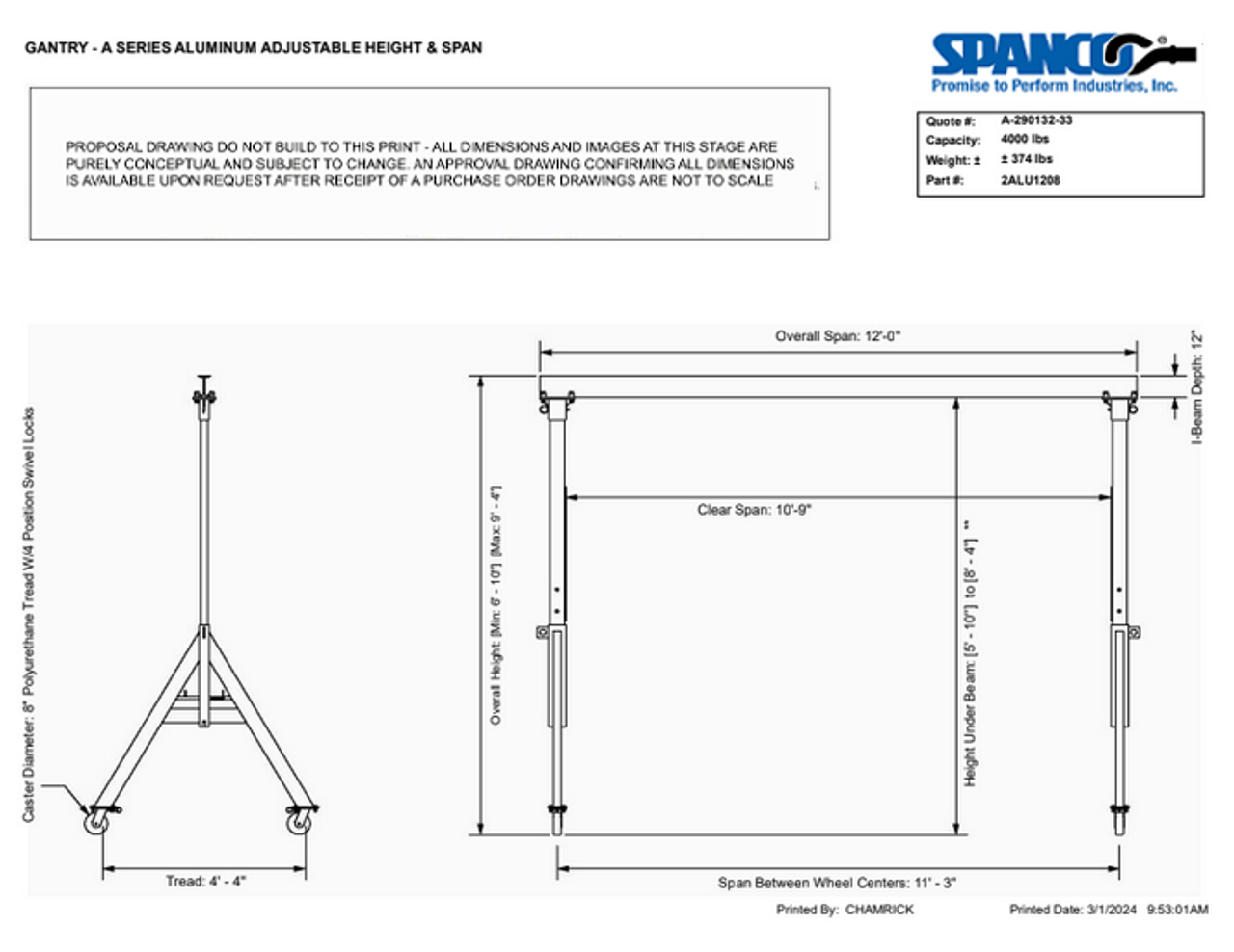

Additional Specifications:
- Model: GANTRY - A SERIES ALUMINUM ADJUSTABLE HEIGHT & SPAN
- Height Adjustment Type: Aluminum Adjustable Height
- Capacity: 4000 lbs
- Overall Span: 12'-0''
- Clear Span: 10'-9''
- Height Under Beam: 5' - 10'' to 8' - 4''
- Overall Height: Min: 6' - 10'' Max: 9' - 4''
- Wheel Tread: 4' - 4''
- Beam Size: ALU12X10.99#
- Flange Width: 5"
- Casters: 8'' Polyurethane Tread W/4 Position Swivel Locks
- Coating & Painting: Aluminum
