Product Overview

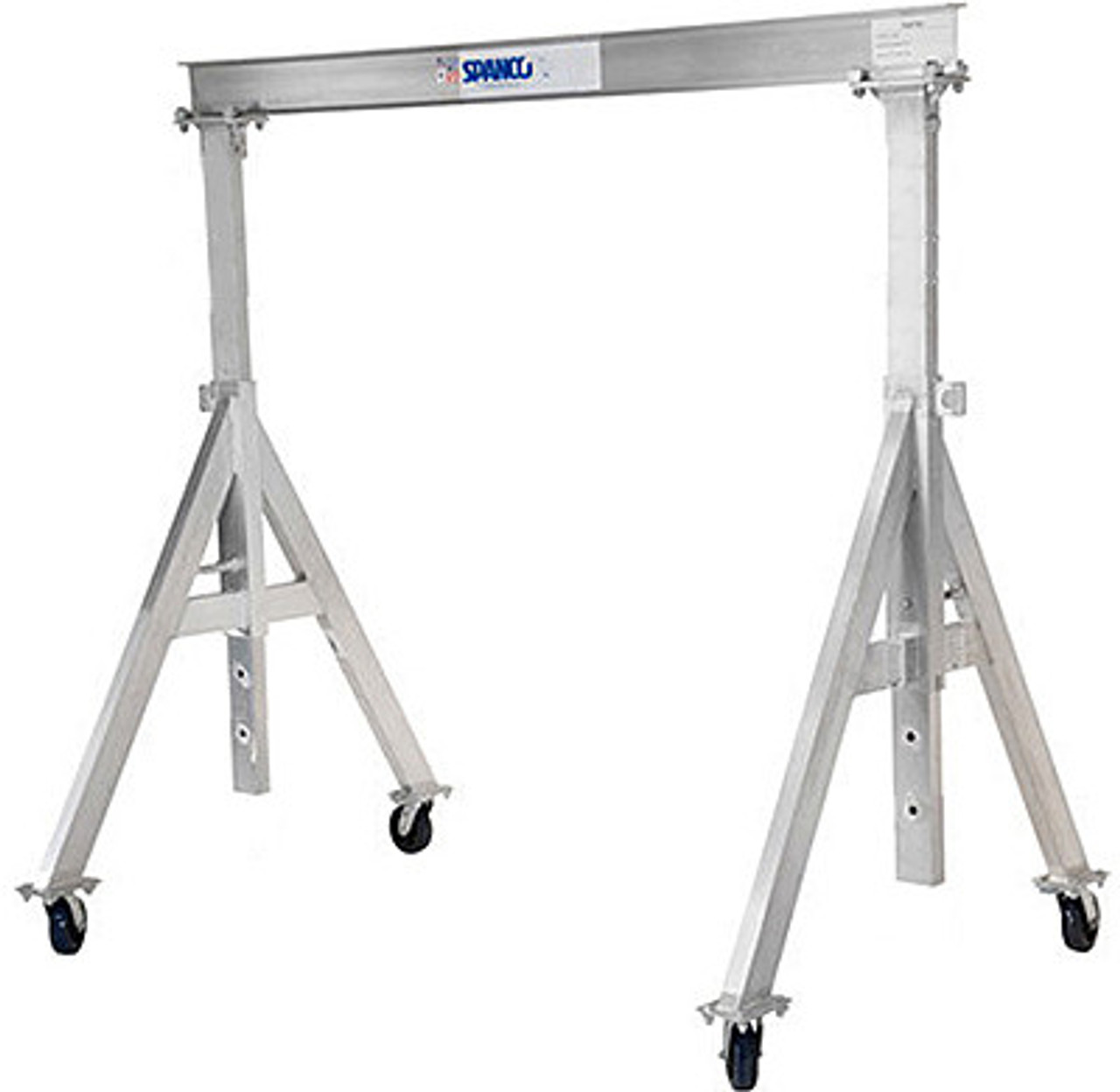

The Spanco 2ALU0812 Aluminum Gantry crane represents a lightweight, corrosion-resistant solution tailored for the efficient lifting and transportation of loads up to 4,000 lbs. Its design permits easy assembly, disassembly, and mobility, requiring the involvement of only one or two workers. This attribute renders it a preferred choice for operators seeking agile overhead lifting equipment.
Height adjustment on this crane occurs seamlessly in 6-inch increments, resulting in an under-beam height range of 9’10” to 12’4". The crane's adaptability is further enhanced by an optional height adjustment kit, featuring spring-loaded steel locking pins. These pins automatically engage upon reaching height positioning holes, ensuring a secure and stable lifting configuration.
An adjustable span feature facilitates the crane's efficient shortening for ease of transport in narrow spaces. Standard features include 4-position swivel-lock casters equipped with mold-on polyurethane wheels, contributing to enhanced floor protection during operations. Compliant with OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards, the Spanco 2ALU0812 Aluminum Gantry crane guarantees safety and reliability in industrial settings.

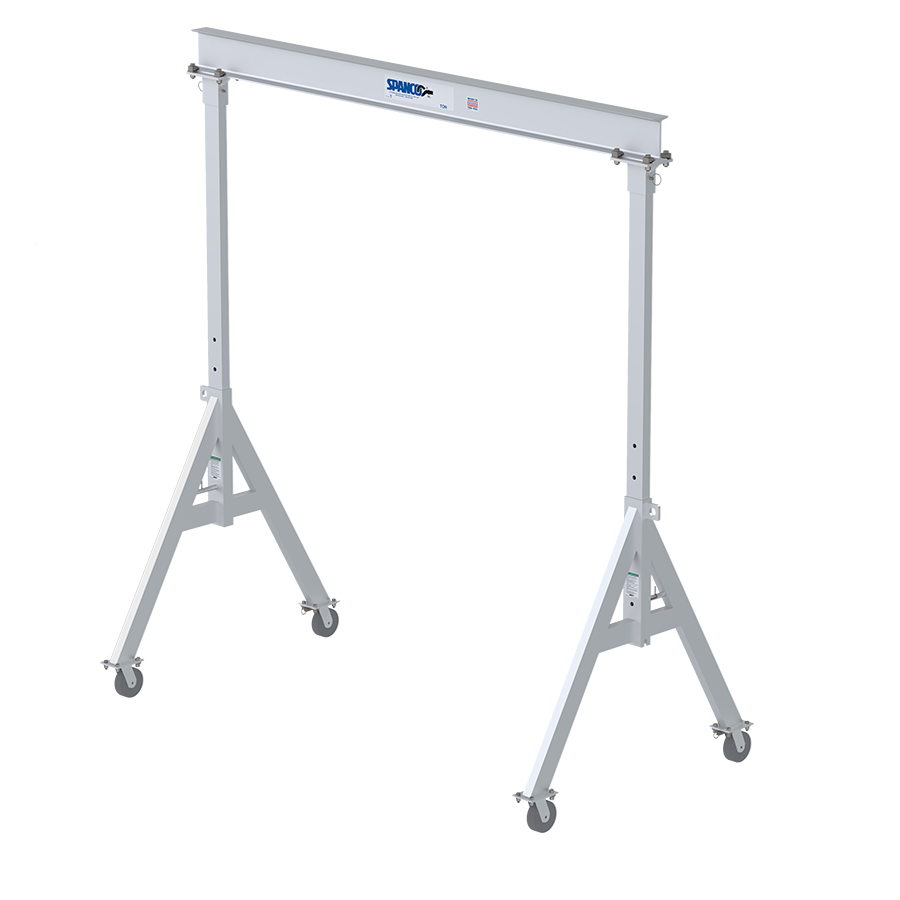

GANTRY - 2ALU0812 A SERIES ALUMINUM ADJUSTABLE HEIGHT & SPAN
- Height Adjustment Type: Aluminum Adjustable Height
- Capacity: 4000 lbs
- Overall Span: 8'-0''
- Clear Span: 6'-9''
- Height Under Beam: 9' - 10'' to 12' - 4''
- Overall Height: Min: 10' - 6'' Max: 13' - 0''
- Wheel Tread: 4' - 4''
- Beam Size: ALU10X6.35#
- Flange Width: 4"
- Casters: 8'' Polyurethane Tread W/4 Position Swivel Locks
- Coating & Painting: Aluminum
The inclusion of a removable 2-foot height extension kit further underscores the crane's adaptability to diverse lifting requirements.
