Product Overview

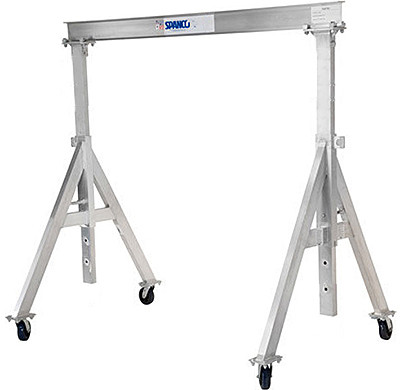

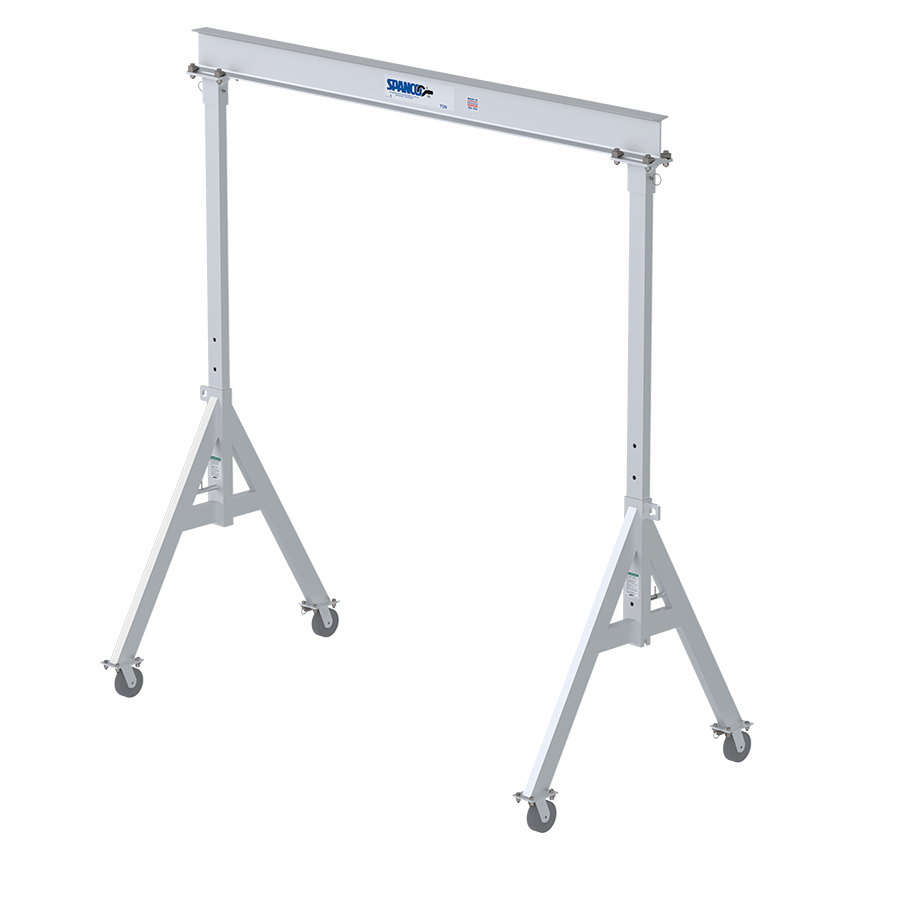

The Spanco 2ALU1510 Aluminum Gantry crane is a lightweight and corrosion-resistant solution designed for lifting and transporting loads up to 4,000 lbs. Its mobility is a key feature, as one or two workers can easily assemble, disassemble, and move the crane, making it popular for operators requiring highly mobile overhead lifting equipment.
The crane's height adjusts in 6-inch increments, providing flexibility with an under-beam height range of 7’10” to 10’4". An optional height adjustment kit includes spring-loaded steel locking pins that automatically engage when height positioning holes are reached, ensuring stability during operation.
To enhance transportability in narrow spaces, the crane features an adjustable span, and it comes standard with 4-position, swivel-lock casters equipped with mold-on polyurethane wheels, contributing to improved floor protection.
Meeting OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards, the Spanco 2ALU1510 Aluminum Gantry crane is a reliable and compliant solution suitable for various industrial lifting applications.

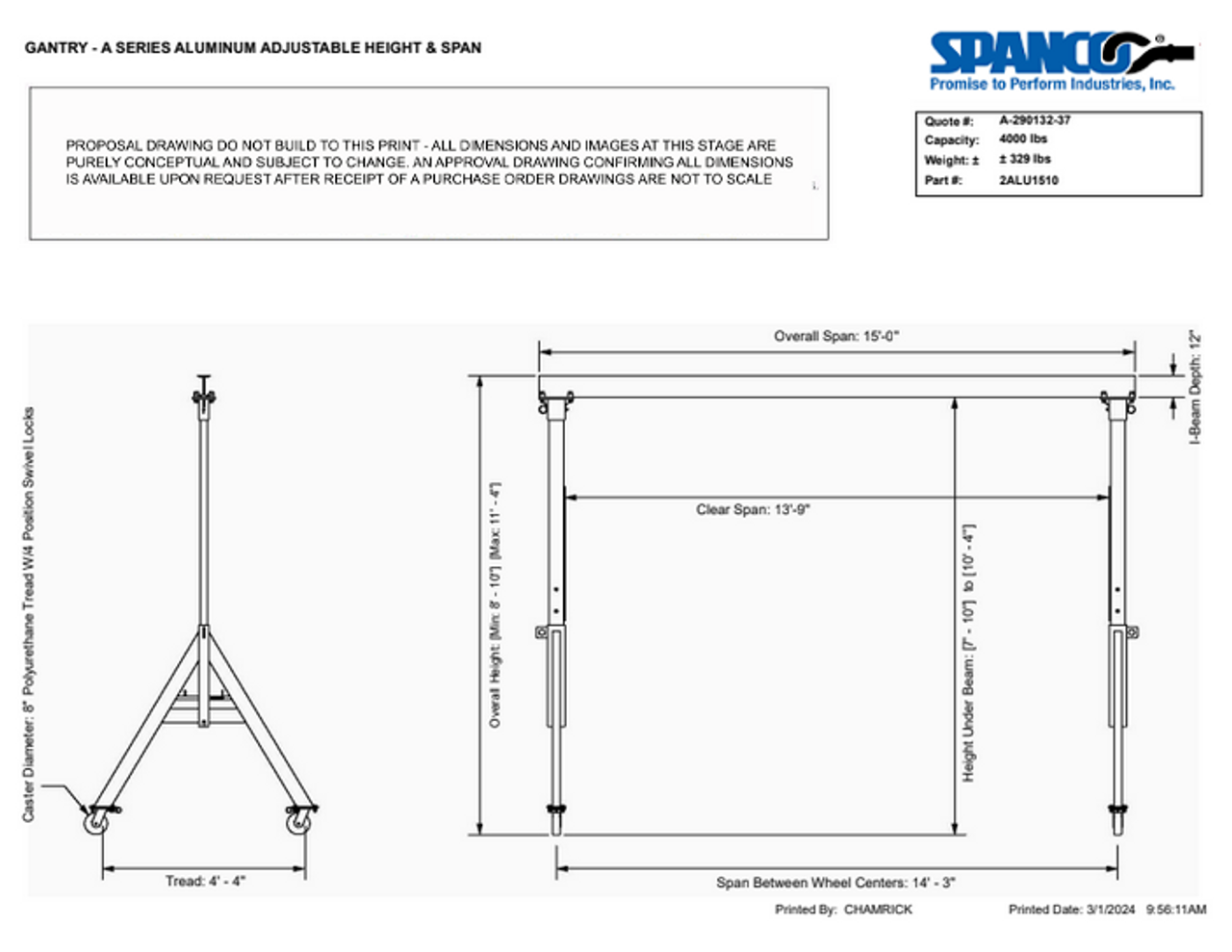

GANTRY - A SERIES ALUMINUM ADJUSTABLE HEIGHT & SPAN
Height Adjustment Type: Aluminum Adjustable Height
Capacity: 4000 lbs
Overall Span: 15'-0''
Clear Span: 13'-9''
Height Under Beam: 7' - 10'' to 10' - 4''
Overall Height: Min: 8' - 10'' Max: 11' - 4''
Wheel Tread: 4' - 4''
Beam Size: ALU12X10.99#
Flange Width: 5"
Casters: 8'' Polyurethane Tread W/4 Position Swivel Locks
Coating & Painting: Aluminum
