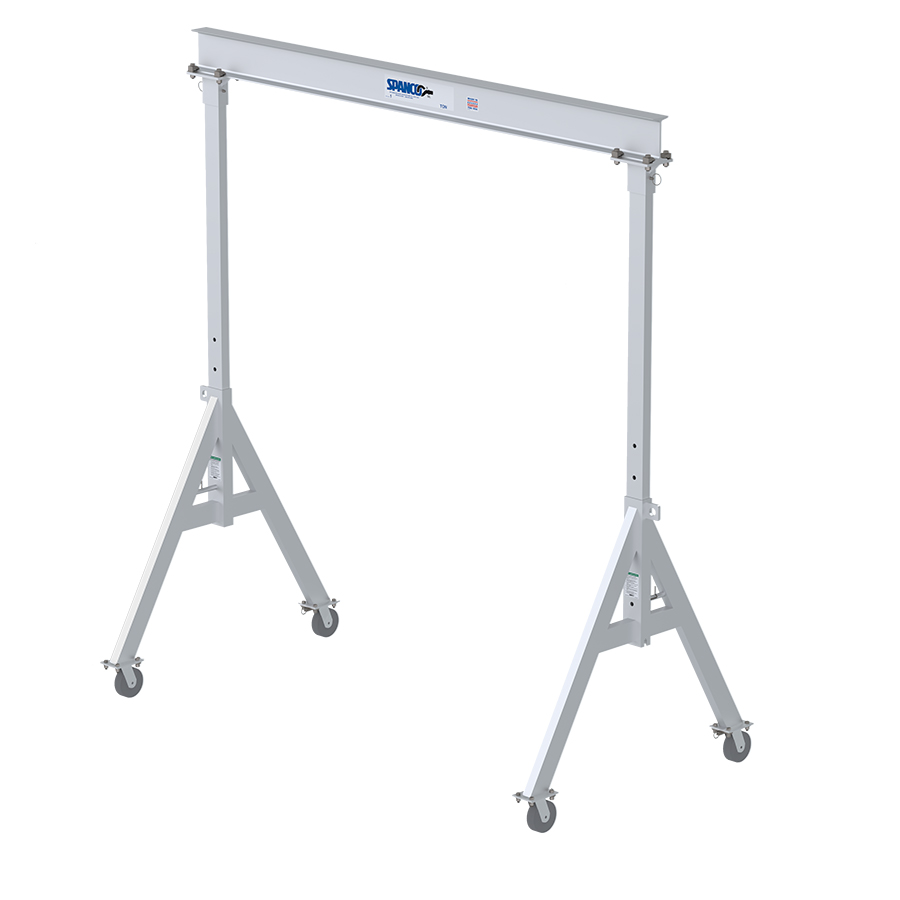

1ALU1510 GANTRY CRANE - 1 TON, 15' SPAN, A SERIES ALUMINUM ADJUSTABLE HEIGHT Min: 8' - 5'' Max: 10' - 11'' SPANCO

Elevate Your Lifting Operations with the Technologically Advanced Spanco 1ALU1510 Aluminum Gantry Crane:

Unleash the power of cutting-edge technology with the Spanco 1ALU1510 Aluminum Gantry Crane, a sophisticated solution designed to redefine the standards of efficiency in lifting and transporting loads up to 2,000 lbs. Crafted with precision and innovation, this crane provides a lightweight and corrosion-resistant answer, making it the top choice for operators in need of highly mobile overhead lifting equipment.

Advanced Features:

1. Lightweight and Corrosion-Resistant Construction: Engineered with high-quality materials, the crane boasts a lightweight yet robust design, ensuring durability and reliability. Its corrosion-resistant properties guarantee longevity, even in challenging environments.

2. Effortless Assembly and Mobility: Offering unparalleled convenience, the crane empowers one or two operators to effortlessly assemble, disassemble, and move the equipment. This feature is ideal for operators seeking high mobility in their overhead lifting operations.

3. Precision Height Adjustment: The height adjustment mechanism operates with precision in 6-inch increments, providing an under-beam height range of 7’7” to 10’1". The optional height adjustment kit, featuring spring-loaded steel locking pins, ensures a secure setup by automatically engaging when height positioning holes are reached.

4. Adaptive Span Technology: The adjustable span feature allows for efficient shortening, facilitating easy transport in narrow spaces. This adaptability ensures the crane can navigate various operational environments with ease.

5. Enhanced Floor Protection: Standard with 4-position, swivel-lock casters featuring mold-on polyurethane wheels, the crane prioritizes floor protection during operation. This not only ensures a smooth lifting experience but also minimizes the risk of floor damage.

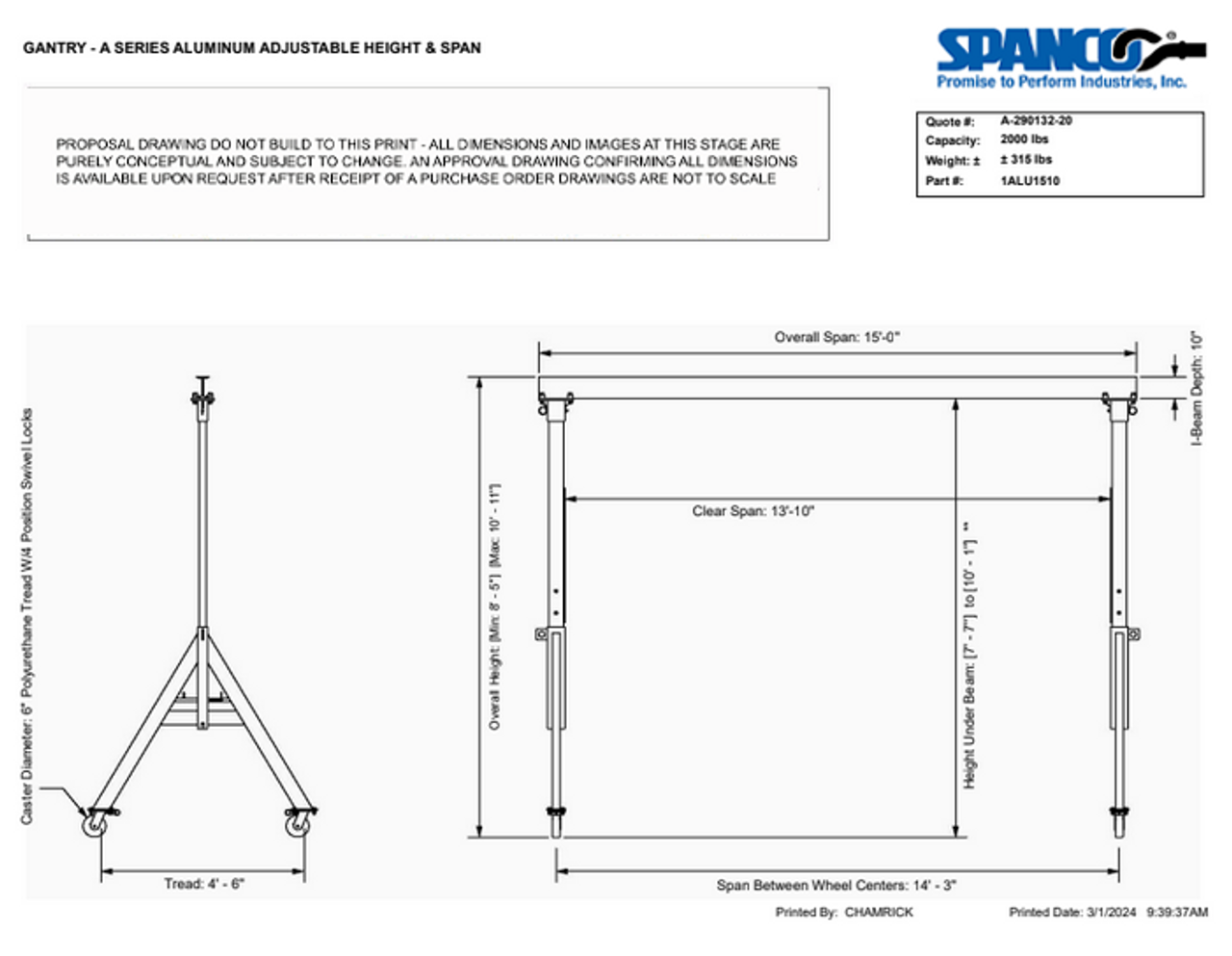

Technical Specifications:

• Capacity: 2000 lbs
• Overall Span: 15'-0''
• Clear Span: 13'-10''
• Height Under Beam: 7' - 7'' to 10' - 1''
• Overall Height: Min: 8' - 5'' Max: 10' - 11''
• Wheel Tread: 4' - 6''
• Beam Size: ALU10X8.76#
• Flange Width: 4-5/8"
• Casters: 6'' Polyurethane Tread W/4 Position Swivel Locks
• Coating & Painting: Aluminum

Embrace the future of lifting technology with the Spanco 1ALU1510 Aluminum Gantry Crane, where innovation meets efficiency for a superior lifting experience.
