Product Overview

The Spanco 2ALU1008 Aluminum Gantry crane offers a lightweight and corrosion-resistant solution for lifting and transporting loads up to 4,000 lbs. Its design allows for easy assembly, disassembly, and mobility, requiring just one or two workers for operation. This makes it highly sought-after by operators in need of agile overhead lifting equipment.

Height adjustment on this crane occurs in precise 6-inch increments, facilitating an under-beam height range of 5’10” to 8’4". Notably, an optional height adjustment kit is available, incorporating spring-loaded steel locking pins that automatically engage upon reaching height positioning holes, ensuring secure positioning during lifting operations. Additionally, its adjustable span feature enables the crane to be efficiently shortened for seamless transport in narrow spaces.

Standard features of the Spanco 2ALU1008 Aluminum Gantry crane include 4-position swivel-lock casters equipped with mold-on polyurethane wheels, providing enhanced floor protection. Complying with OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards, this crane guarantees safety and reliability in various industrial settings.

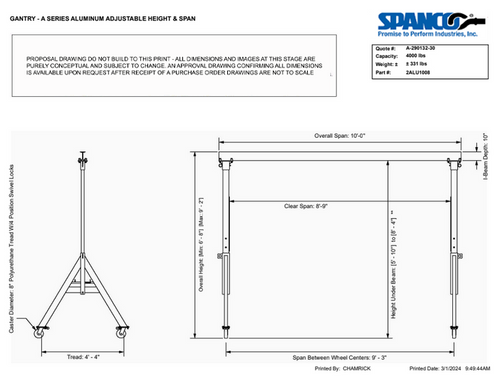

GANTRY - A SERIES ALUMINUM ADJUSTABLE HEIGHT & SPAN

Height Adjustment Type: Aluminum Adjustable Height
Capacity: 4000 lbs
Overall Span: 10'-0''
Clear Span: 8'-9''
Height Under Beam: 5' - 10'' to 8' - 4''
Overall Height: Min: 6' - 8'' Max: 9' - 2''
Wheel Tread: 4' - 4''
Beam Size: ALU10X8.76#
Flange Width: 4-5/8"
Casters: 8'' Polyurethane Tread W/4 Position Swivel Locks
Coating & Painting: Aluminum

This crane model ensures adaptability, reliability, and compliance with industry standards, catering to various lifting requirements in industrial environments.
