Product Overview

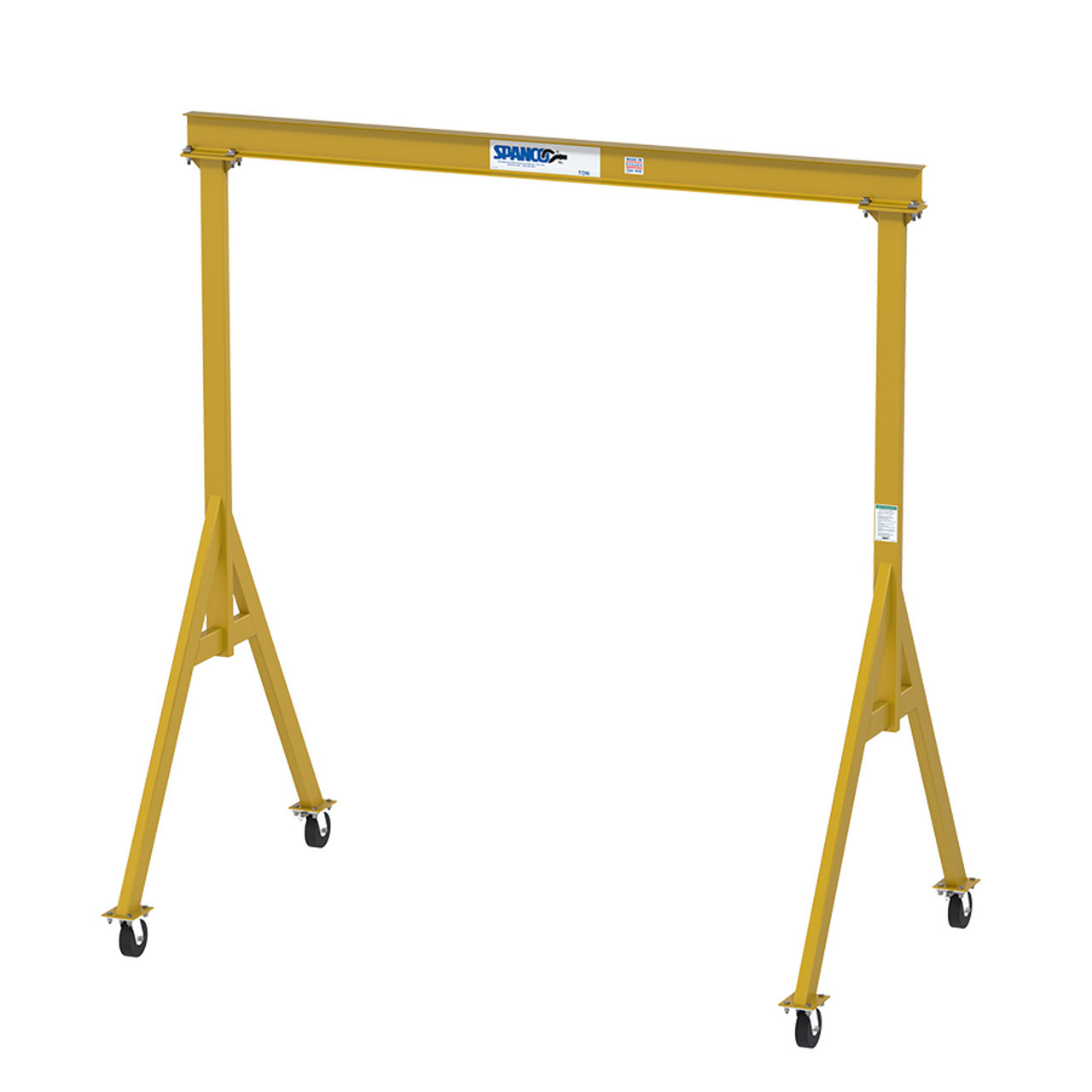

Gantry Crane - A Series Steel Fixed Height
With a robust lifting capacity of 5 tons and an expansive clear span of 13' 7", this fixed height steel gantry crane presents an economical and versatile solution for portable heavy lifting. Offering the flexibility to be relocated between workstations as needed or conveniently rolled out of the way when not in use, it is an ideal addition to your workspace.
The A-Series gantry crane is designed with vertical leg supports, eliminating the need for brace legs under the I-beam. This innovative design maximizes the clear span available for your maintenance, assembly, or materials transfer application, ensuring efficient and unobstructed operations.
Equipped with smooth rolling, non-marking polyurethane wheels, featuring four-position swivel locks, this gantry crane ensures stability during lifting operations. The 8'' Polyurethane Tread Casters contribute to easy maneuverability across various surfaces.
Specifications:
- Height Adjustment Type: Steel Fixed Height
- Capacity: 10,000 lbs (5 tons)
- Overall Span: 15'-0''
- Clear Span: 13'-7''
- Height Under Beam: 15' - 10'
- Wheel Tread: 6' - 6''
- Beam Size: S15X42.9#
- Flange Width: 5-1/2"
- Casters: 8'' Polyurethane Tread with 4 Position Swivel Locks
- Coating & Painting: Yellow Spray Paint
Choose the A Series Steel Fixed Height Gantry Crane for reliable and cost-effective heavy lifting in your workspace. Feel free to contact us for more information or to discuss customization options tailored to your specific needs.
