0.5ALU1509 GANTRY CRANE - 1/2 TON, 15' SPAN, A SERIES ALUMINUM ADJUSTABLE HEIGHT 7' - 2'' Max: 9' - 8'' SPANCO

Elevate Your Lifting Operations with the Spanco 0.5ALU1509 Aluminum Gantry Crane: Precision and Mobility Unleashed

0.5ALU1509 GANTRY - A Series Aluminum Adjustable Height & Span

Key Features:

1. Featherweight Powerhouse:

   • Engineered from high-quality aluminum, this gantry crane seamlessly combines lightweight design with robust corrosion resistance.
   • Lifts and transports loads up to 1,000 lbs effortlessly.

2. Dynamic Assembly and Portability:

   • Tailored for one or two workers to effortlessly assemble, disassemble, and move the crane with unparalleled ease.
   • Ideal for operators requiring agile and highly mobile overhead lifting solutions.

3. Precision Height Adjustments:

   • Height adjusts in 6-inch increments, providing precise control over lifting operations.
   • Versatile under-beam height range from 6'6" to 9".

4. Optional Height Adjustment Kit:

   • Equipped with a height adjustment kit featuring spring-loaded steel locking pins.
   • Automatic engagement ensures secure positioning when reaching height adjustment holes.

5. Adaptable Span Technology:

   • Adjustable span facilitates easy shortening of the crane, enabling seamless transport in narrow spaces.

6. Enhanced Floor Protection:

   • Standardized with 4-position, swivel-lock casters boasting mold-on polyurethane wheels.
   • Significantly improves floor protection during crane movement.

7. Compliance and Safety Assurance:

   • Meets OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards.
   • Prioritizes safety and adherence to industry regulations.

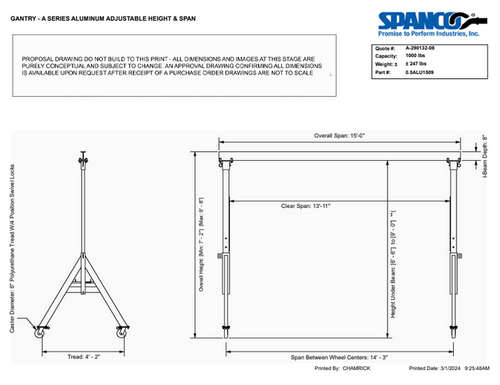

Technical Specifications:

• Capacity: 1000 lbs
• Overall Span: 15'-0''
• Clear Span: 13'-11''
• Height Under Beam: 6' - 6'' to 9' - 0''
• Overall Height: Min: 7' - 2'' Max: 9' - 8''
• Wheel Tread: 4' - 2''
• Beam Size: ALU8X6.35#
• Flange Width: 4"
• Casters: 6'' Polyurethane Tread W/4 Position Swivel Locks
• Coating & Painting: Aluminum

Summary: The Spanco 0.5ALU1509 Aluminum Gantry Crane redefines lightweight lifting, offering precision and mobility in a single package. Perfect for operators demanding a swift, agile, and reliable solution, this gantry crane ensures optimal performance while meeting stringent industry standards. Lift with confidence and ease with the 0.5ALU1509.
