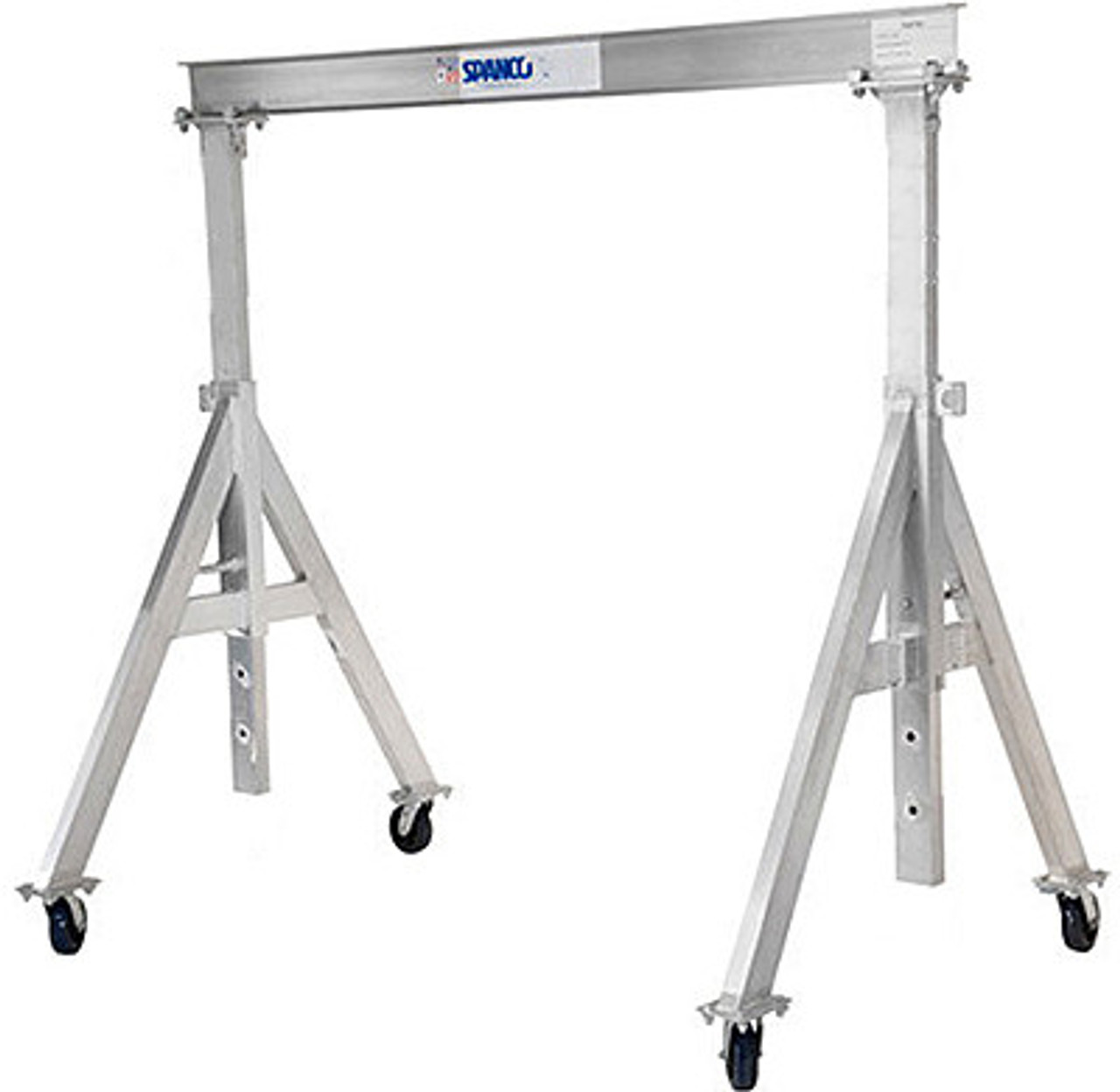

0.5ALU1011 GANTRY CRANE - 1/2 TON, 10' SPAN, A SERIES ALUMINUM ADJUSTABLE HEIGHT Min: 9' - 0'' Max: 11' - 6'' SPANCO

Unleash Mobility and Precision with the Spanco 0.5ALU1011 Aluminum Gantry Crane: A Symbol of Efficiency and Durability

0.5ALU1011 GANTRY - A Series Aluminum Adjustable Height & Span

Key Features:

1. Featherweight Powerhouse:

   • Crafted from top-tier aluminum, the 0.5ALU1011 guarantees both lightweight design and exceptional corrosion resistance.
   • Facilitates the effortless lifting and transportation of loads up to 1,000 lbs.

2. Dynamic Assembly and Transport:

   • Tailor-made for one or two workers, ensuring quick and seamless assembly, disassembly, and movement of the crane.
   • A prime choice for operators seeking highly mobile overhead lifting solutions.

3. Precision Height Adjustments:

   • Height adjusts with precision in 6-inch increments, granting meticulous control over lifting operations.
   • Adaptable under-beam height range from 8'6" to 11'.

4. Optional Height Adjustment Kit:

   • Equipped with an optional height adjustment kit featuring spring-loaded steel locking pins.
   • Automatic engagement ensures secure positioning when reaching height adjustment holes.

5. Adaptable Span Technology:

   • The adjustable span ensures the crane can be effortlessly shortened for easy transport through narrow spaces.

6. Enhanced Floor Protection:

   • Standardized with 4-position, swivel-lock casters boasting mold-on polyurethane wheels.
   • Significantly enhances floor protection during crane movements.

7. Compliance and Safety Assurance:

   • Meets OSHA 1910.179, ANSI B30.11, AWS D1.1/D1.2/D1.6, and CMAA 74 standards.
   • Prioritizes safety and adherence to industry regulations.

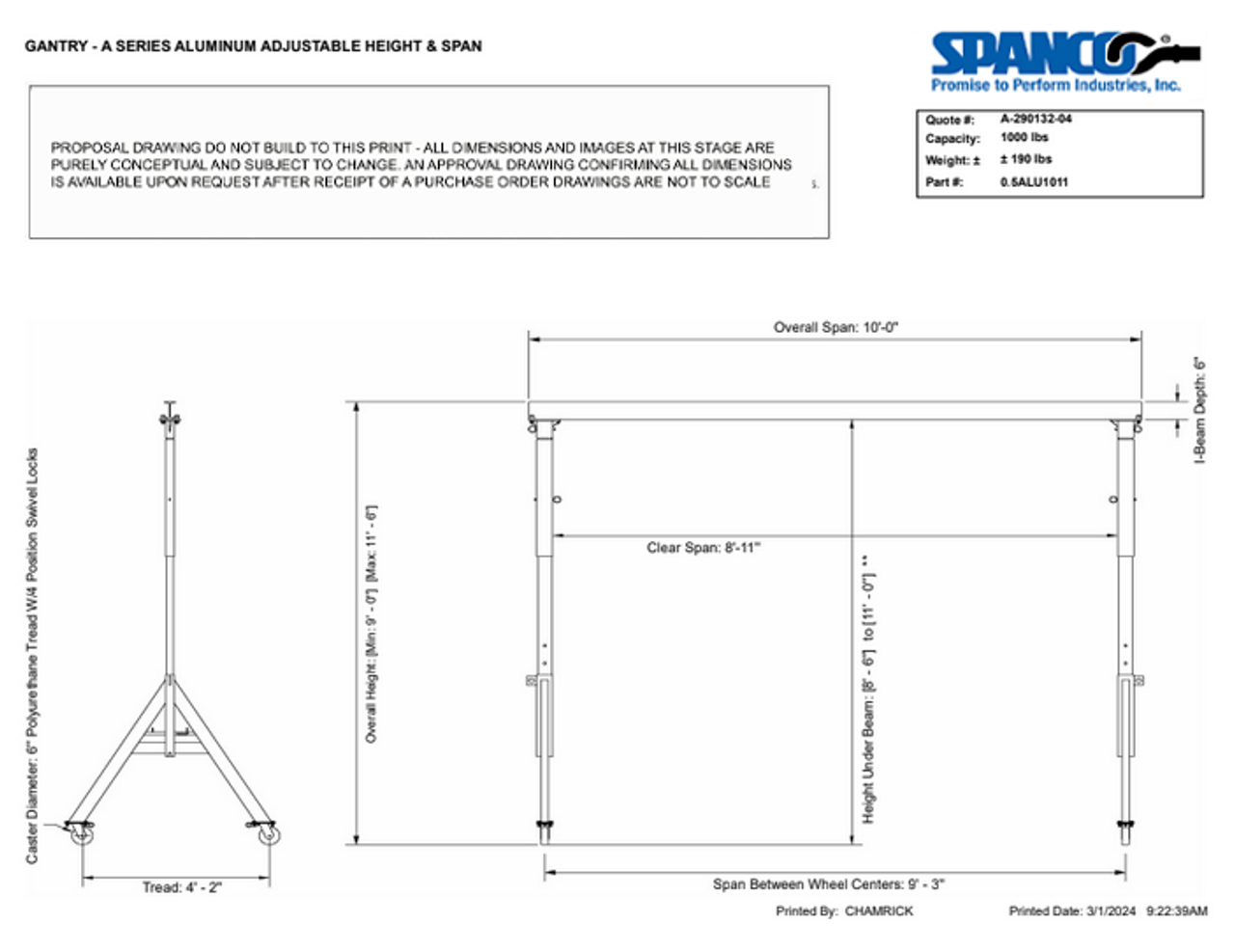

Technical Specifications:

• Capacity: 1000 lbs
• Overall Span: 10'-0''
• Clear Span: 8'-11''
• Height Under Beam: 8' - 6'' to 11' - 0''
• Overall Height: Min: 9' - 0'' Max: 11' - 6''
• Wheel Tread: 4' - 2''
• Beam Size: ALU6X4.3#
• Flange Width: 3-3/8"
• Casters: 6'' Polyurethane Tread W/4 Position Swivel Locks
• Coating & Painting: Aluminum

The Spanco 0.5ALU1011 Aluminum Gantry Crane stands as the epitome of efficiency and durability. Seamlessly combining precision and mobility, it emerges as the ideal solution for operators demanding swift, agile, and reliable overhead lifting capabilities. Lift with confidence and precision with the 0.5ALU1011.
