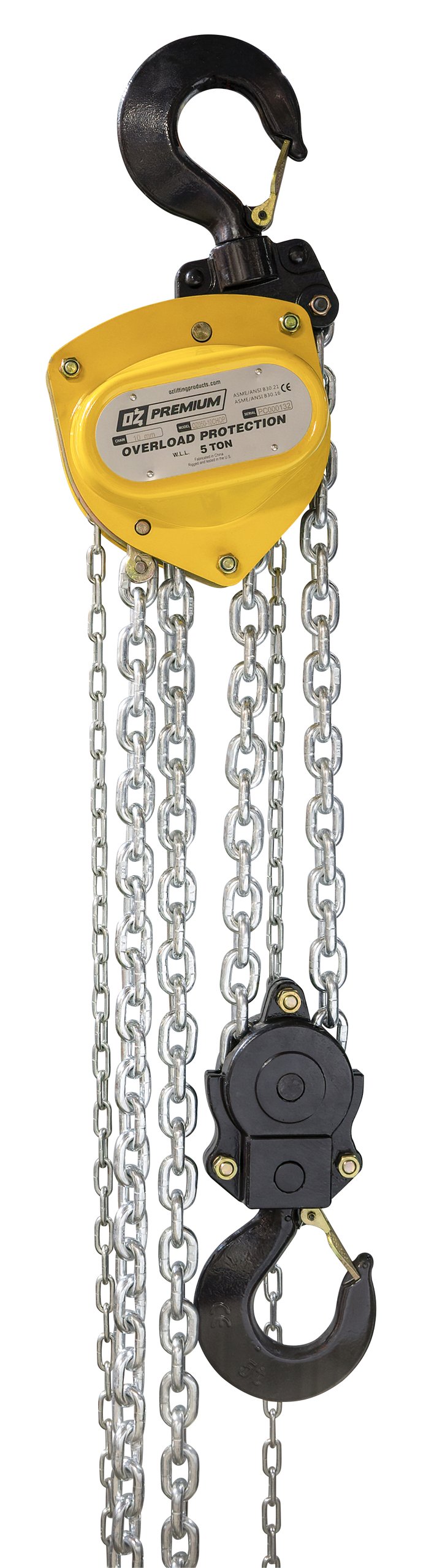

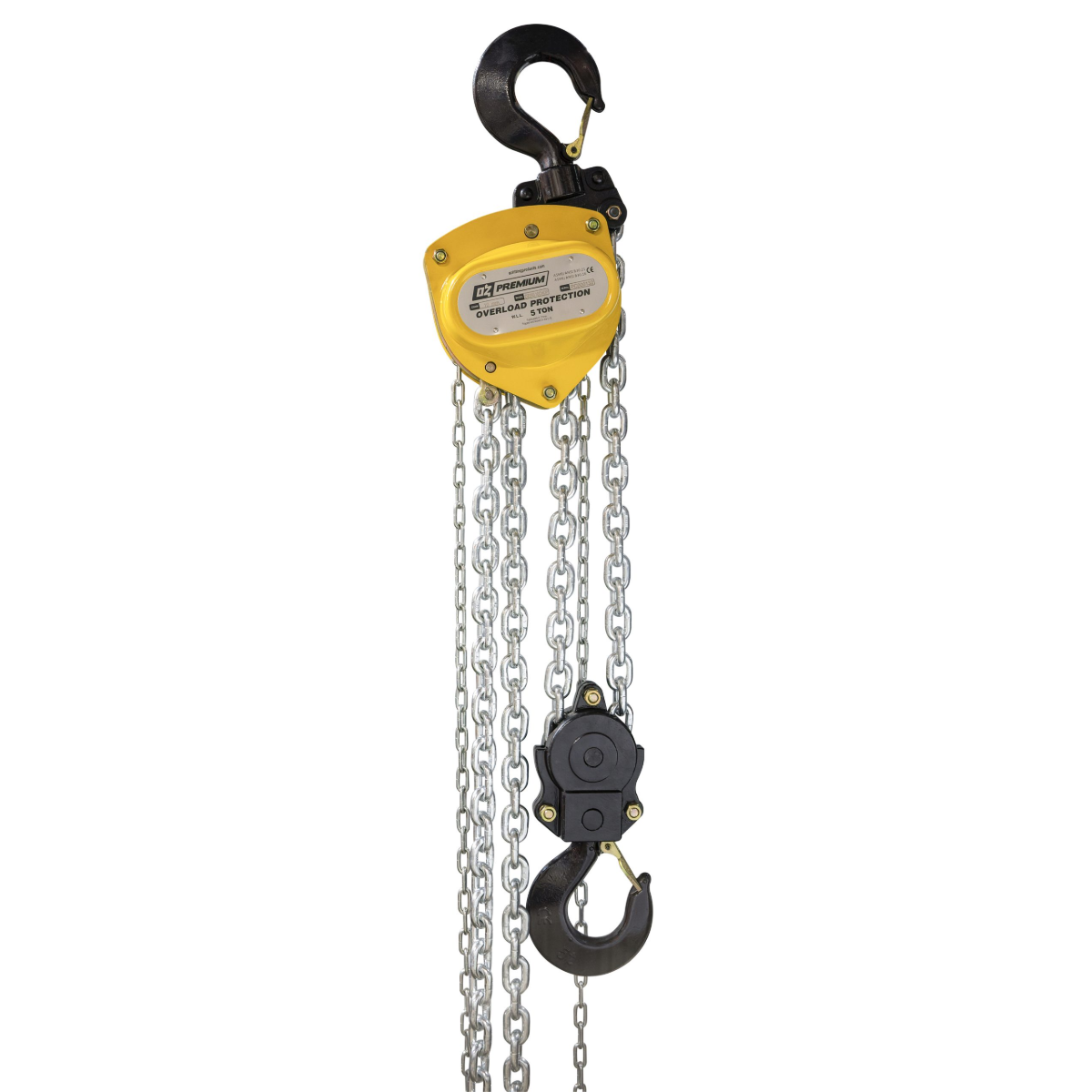

The OZ050-10CHOP Premium Chain Hoist delivers a powerful 5-ton (10,000 lb) lifting capacity with built-in Standard Overload Protection, factory-set to engage at approximately 150% of the rated load. Designed for heavy-duty lifting and pulling, it incorporates double-reduction gearing for reduced manual effort and a unique hand-wheel design that ensures smooth, precise chain operation from any angle. Its all-steel construction guarantees strength, durability, and long-term reliability in even the toughest industrial environments.

Product Description

When it comes to handling the heaviest loads safely and efficiently, the OZ050-10CHOP Premium Chain Hoist stands out as a professional-grade solution built for performance and dependability. With a 5-ton capacity and 10 ft lift height, this hoist is engineered to meet the rigorous demands of construction sites, manufacturing plants, shipyards, and maintenance operations where safety and precision are essential.

The built-in Standard Overload Protection (SOP) is factory-calibrated to activate at roughly 150% of the rated load, preventing accidental overloading and ensuring safe, consistent operation. This crucial feature helps protect both the operator and the hoist from damage due to excessive strain—ideal for environments where safety compliance and reliability are non-negotiable.

Equipped with a double-reduction gearing system, the OZ050-10CHOP allows users to lift heavy loads smoothly and efficiently with minimal pulling force. Its ergonomic hand-wheel design enables seamless chain operation from multiple angles, providing flexibility in tight spaces or complex lifting setups. Whether lifting vertically or pulling horizontally, the hoist delivers precise control and stable load movement.

Constructed from rugged all-steel components, including a powder-coated finish, this hoist resists corrosion, impact, and harsh environmental conditions. The enclosed Weston-style mechanical brake system with twin pawls provides superior load control and secure holding, while the sealed roller bearings ensure maintenance-free operation with smooth gear engagement.

The forged alloy steel hooks—both upper and lower—are designed to swivel 360°, allowing for easy attachment and proper load alignment. The lower hook features a thrust bearing, which prevents chain twisting and permits smooth rotation under load. Each hoist also includes a Grade 80 zinc-plated load chain that offers exceptional tensile strength and long-lasting corrosion resistance.

Every OZ Premium Hoist is individually serialized, complete with a stainless steel ID tag and load test certificate for traceability and compliance with international safety standards.

Specifications

• Model: OZ050-10CHOP

• Capacity: 5 Ton (10,000 lbs)

• Lift Height: 10 ft

• Overload Protection: Factory-set to activate at ~150% of rated capacity

• Operation Type: Manual lifting and pulling

• Construction: All-steel body with powder-coated finish

• Brake System: Enclosed Weston-style mechanical brake with twin pawls

• Gearing: Double-reduction for smoother, low-effort operation

• Bearings: Sealed roller bearings for maintenance-free performance

• Hooks: Forged alloy steel, 360° swivel top and bottom hooks

• Lower Hook: Thrust bearing allows smooth load rotation

• Latch Design: Heavy-duty cast steel with bolt-and-nut locking system

• Load Chain: Grade 80, zinc-plated, corrosion-resistant finish

• Hand-Wheel: Allows chain operation from multiple angles

• Identification: Stainless steel tag with serial number and test certificate

• Compliance: Meets or exceeds ASME B30.16 and OSHA safety standards

Key Features & Benefits

• 5 Ton capacity for heavy-duty industrial lifting and pulling

• 10 ft lift height ideal for workshops, factories, and field applications

• Standard Overload Protection ensures operator safety and equipment longevity

• Double-reduction gearing for efficient operation with minimal effort

• All-steel, powder-coated construction provides long-term durability

• Enclosed brake system offers reliable, secure load control

• 360° swivel hooks enhance flexibility and positioning

• Corrosion-resistant chain extends service life

• Maintenance-free bearings reduce downtime

• Certified and serialized for full traceability and compliance
