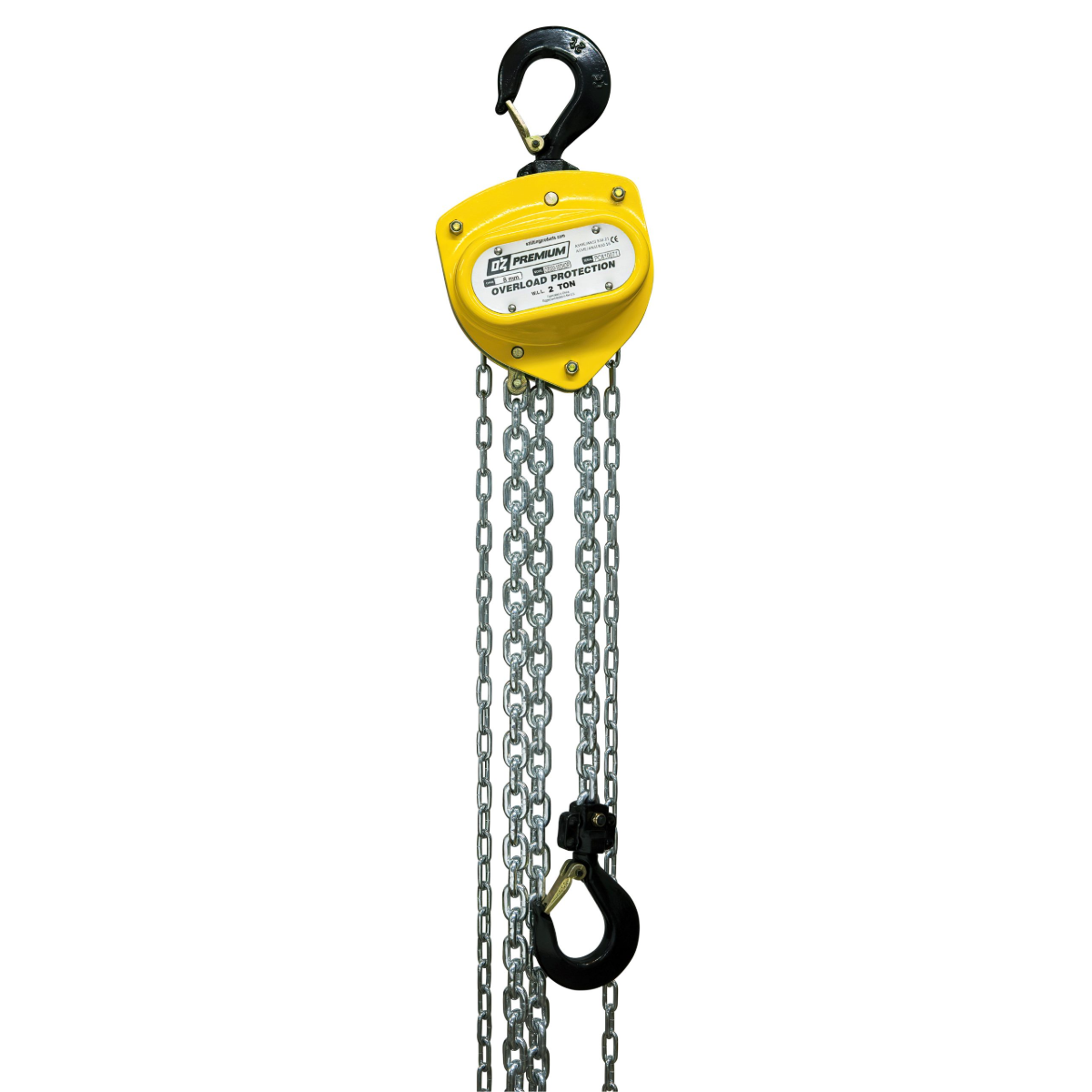

The OZ020-10CHOP Premium Chain Hoist delivers top-tier lifting performance and operator safety with a 2-ton (4,000 lb) capacity and Standard Overload Protection preset at approximately 150% of the rated load. Engineered for both lifting and pulling, this hoist features double-reduction gearing for smooth, low-effort operation and a unique hand-wheel design that allows seamless chain handling from multiple angles. Built with a heavy-duty all-steel construction and a durable powder coat finish, it ensures exceptional strength, reliability, and long service life in demanding environments.

Product Description

The OZ020-10CHOP Premium Chain Hoist is designed to meet the rigorous demands of industrial, construction, and maintenance applications that require reliable lifting and pulling performance. With its 2-ton capacity and 10-foot lift height, this manual chain hoist combines precision control, enhanced safety, and rugged durability—making it the ideal solution for professionals who need dependable lifting power day after day.

Equipped with Standard Overload Protection (SOP) set to approximately 150% of the rated load, this hoist safeguards both the operator and the equipment from accidental overloading. The double-reduction gearing system ensures smooth and efficient lifting with minimal manual effort, allowing users to move heavy loads with better control and less fatigue.

The innovative hand-wheel design enables the hand chain to operate smoothly from various angles, providing flexibility in confined or awkward spaces. Constructed entirely from high-strength steel, the OZ020-10CHOP withstands demanding work conditions and resists wear over time. The powder-coated finish adds extra protection against rust and corrosion, extending the life of the hoist even in harsh outdoor or industrial environments.

For maximum safety and precision, this model features a Weston-style enclosed brake system with twin pawls, delivering reliable load holding and secure operation. Sealed roller bearings promote smooth, maintenance-free performance, while fully enclosed gearing prevents contamination from dust and debris.

Each component of the OZ020-10CHOP is built for longevity and performance. The forged alloy steel hooks swivel 360° for easy load positioning, and the thrust bearing on the lower hook prevents twisting while allowing easy rotation of the load. The Grade 80 zinc-plated load chain provides high tensile strength with a durable, non-oily finish. Additionally, each hoist includes a stainless steel identification tag, a unique serial number, and a test certificate, ensuring complete traceability and compliance with safety standards.

Whether in a factory, warehouse, or construction site, the OZ020-10CHOP offers maximum safety, superior control, and unmatched reliability, making it the ultimate choice for professionals seeking performance and peace of mind.

Specifications

• Model: OZ020-10CHOP

• Type: Premium Manual Chain Hoist with Standard Overload Protection

• Capacity: 2 Ton (4,000 lbs)

• Lift Height: 10 ft

• Overload Protection: Preset at approximately 150% of rated load

• Operation: Manual hand chain – suitable for lifting and pulling

• Construction: Heavy-duty all-steel housing and internal components

• Finish: Durable powder-coated finish for corrosion resistance

• Gearing: Double-reduction gearing for smooth, efficient operation

• Brake System: Enclosed Weston-style brake with twin pawls for secure load holding

• Bearings: Sealed roller bearings for smooth, maintenance-free performance

• Hooks: Forged alloy steel hooks swivel 360° for optimal load positioning

• Lower Hook: Includes thrust bearing to prevent chain twisting and enable rotation

• Latch System: Heavy-duty cast steel safety latches with bolt-and-lock nut connection

• Load Chain: Grade 80 zinc-plated alloy steel with a clean, non-oily finish

• Chain Guide: Hand-wheel design allows operation from multiple angles

• Gearing Protection: Fully enclosed to block dust, dirt, and debris

• Identification: Stainless steel ID tag with unique serial number and test certificate

• Compliance: Meets or exceeds ASME B30.16 and OSHA safety standards

Key Features & Benefits

• Enhanced safety with built-in Standard Overload Protection

• Effortless lifting through efficient double-reduction gearing

• Multi-angle operation for greater versatility in confined spaces

• Rugged all-steel construction built for long-term use

• Corrosion-resistant finish ensures lasting performance

• Maintenance-free operation with sealed bearings and enclosed gearing

• Traceable certification for guaranteed quality and compliance
