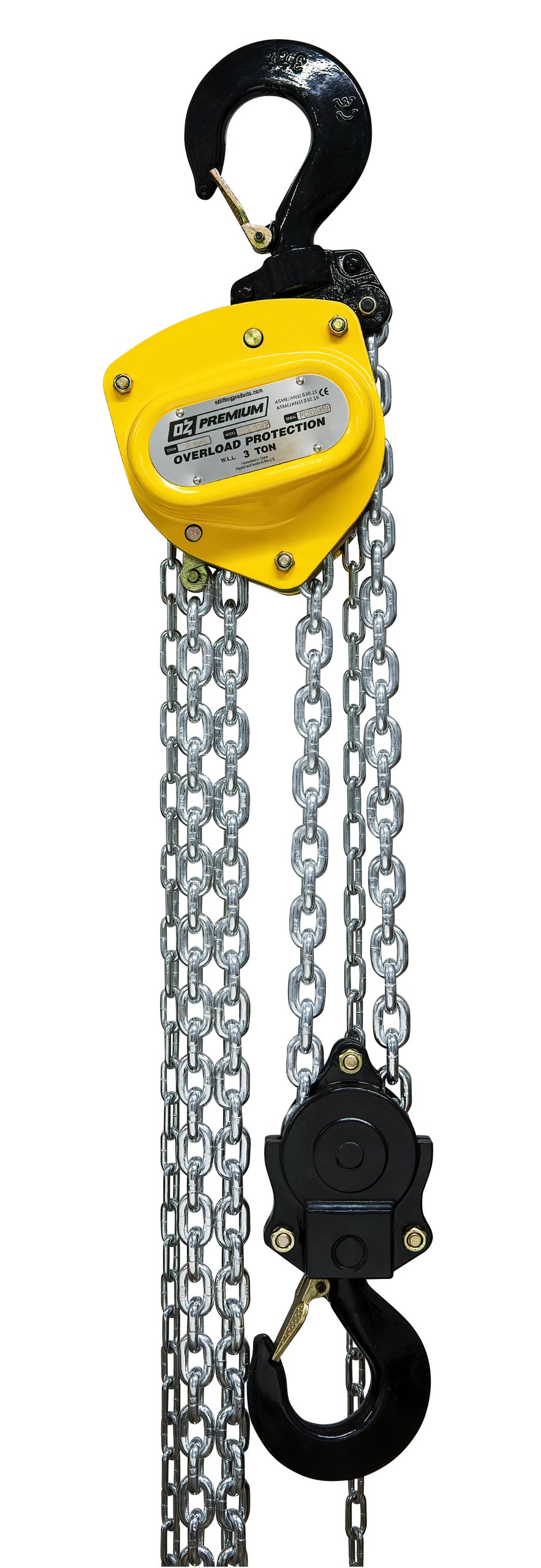

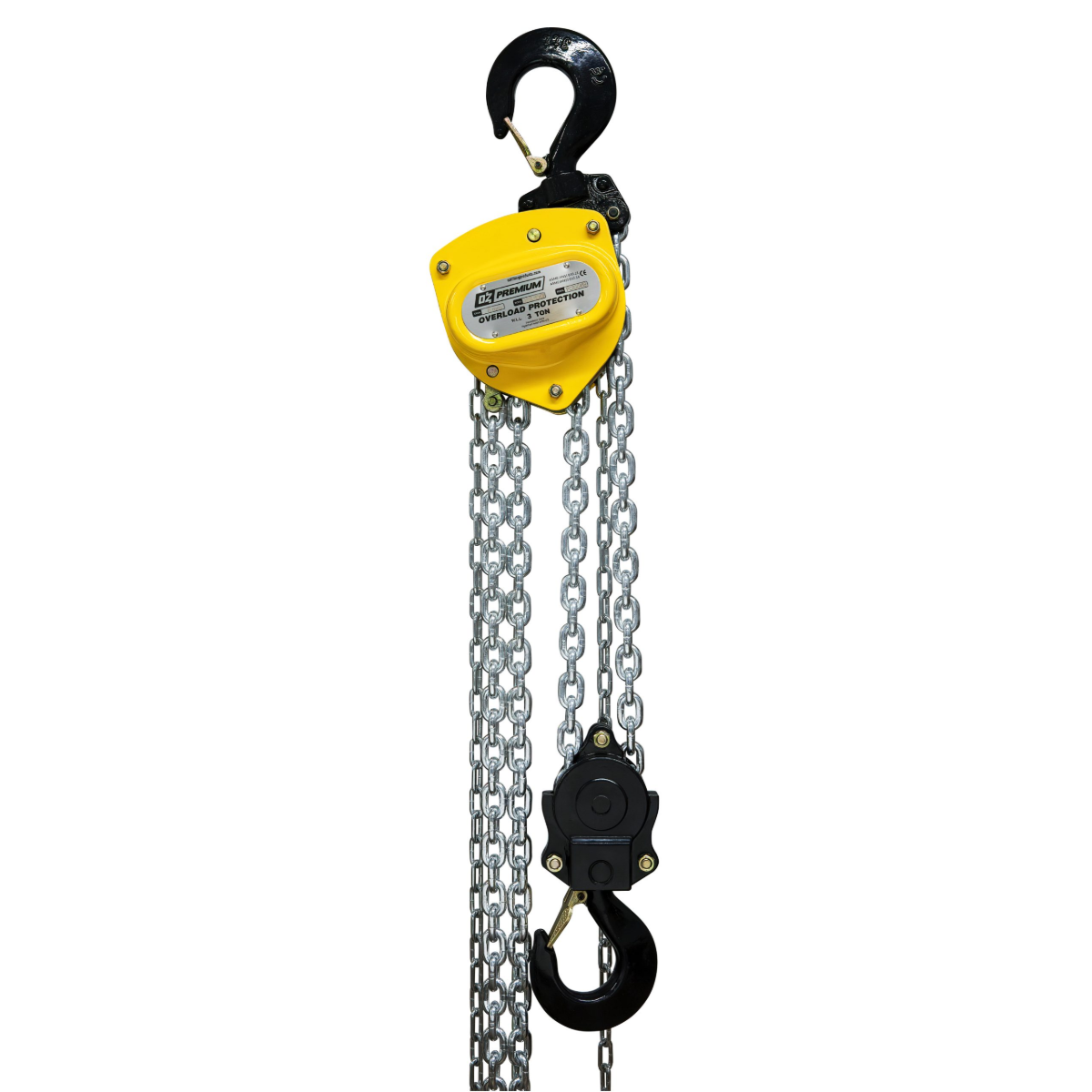

The OZ030-10CHOP Premium Chain Hoist delivers heavy-duty lifting power with a 3-ton (6,000 lb) capacity and Standard Overload Protection (SOP) set at approximately 150% of the rated load for enhanced safety. Built for both lifting and pulling applications, this model features double-reduction gearing for smooth, effortless operation and a unique hand-wheel design that allows chain control from multiple angles. Its all-steel construction with a durable powder coat finish ensures lasting reliability and performance under demanding work conditions.

Product Description

The OZ030-10CHOP Premium Chain Hoist is the professional’s choice for reliable, powerful, and safe material handling. Designed to lift up to 3 tons (6,000 lbs) with precision and control, this hoist integrates advanced safety mechanisms and robust engineering to perform in the most challenging industrial settings—whether in factories, warehouses, construction sites, or maintenance facilities.

Equipped with Standard Overload Protection (SOP) pre-set at about 150% of the rated load, this hoist automatically prevents excessive loading, protecting both the operator and the equipment. The double-reduction gearing system ensures that even heavy lifts can be achieved with minimal manual effort, offering smooth, consistent performance across every lift or pull.

The innovative hand-wheel design enables fluid chain operation from various angles, making it easy to use even in confined or off-center lifting positions. The Grade 80 zinc-plated load chain provides exceptional tensile strength, wear resistance, and corrosion protection, ensuring dependable performance even in harsh or outdoor environments.

Built for long-term durability, the hoist’s all-steel frame and components are powder-coated for enhanced resistance against rust, impact, and environmental damage. Inside, sealed roller bearings and fully enclosed gearing minimize contamination from dust and debris, reducing maintenance needs and extending service life.

Safety is reinforced with a Weston-style mechanical brake system featuring twin pawls for secure, reliable load control. Both top and bottom forged alloy hooks swivel 360° for easy load positioning, while the lower hook’s thrust bearing prevents twisting and supports full load rotation. A stainless steel identification tag with a unique serial number and test certificate ensures traceability and verified performance quality.

This hoist also includes a spare set of heavy-duty steel safety latches, adding convenience and longevity to its already exceptional design.

Specifications

• Model: OZ030-10CHOP

• Type: Premium Manual Chain Hoist with Overload Protection

• Capacity: 3 Ton (6,000 lbs)

• Lift Height: 10 ft

• Overload Protection: Factory-set at ~150% of rated load

• Operation: Manual hand chain (for lifting and pulling)

• Construction: Heavy-duty all-steel body and internal components

• Finish: Powder-coated for rust and impact resistance

• Gearing: Double-reduction gearing for effortless operation

• Brake System: Enclosed Weston-style mechanical brake with twin pawls

• Bearings: Sealed roller bearings for maintenance-free performance

• Hooks: Forged alloy steel, 360° swivel top and bottom hooks

• Lower Hook: Equipped with thrust bearing for easy load rotation

• Latch System: Heavy-duty cast steel safety latches with bolt-and-lock nut

• Load Chain: Grade 80, zinc-plated, corrosion-resistant

• Hand-Wheel Design: Smooth operation from multiple angles

• Enclosed Gearing: Protects internal components from dust and debris

• Identification: Stainless steel ID tag with unique serial number and test certificate

• Included Accessories: Spare set of safety latches

• Compliance: Meets or exceeds ASME B30.16 and OSHA standards

Key Benefits

• 3 Ton lifting capacity for heavy industrial applications

• Built-in Overload Protection enhances user safety and equipment longevity

• Double-reduction gearing reduces operator effort and improves precision

• Durable all-steel construction with powder coat for long service life

• Grade 80 chain provides superior strength and corrosion resistance

• 360° swivel hooks simplify attachment and load alignment

• Enclosed mechanical brake ensures reliable, controlled stopping power

• Traceable certification for verified safety and performance
