Product Overview

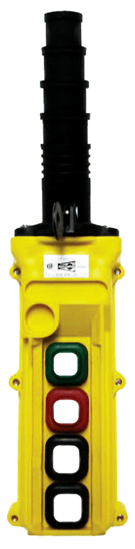

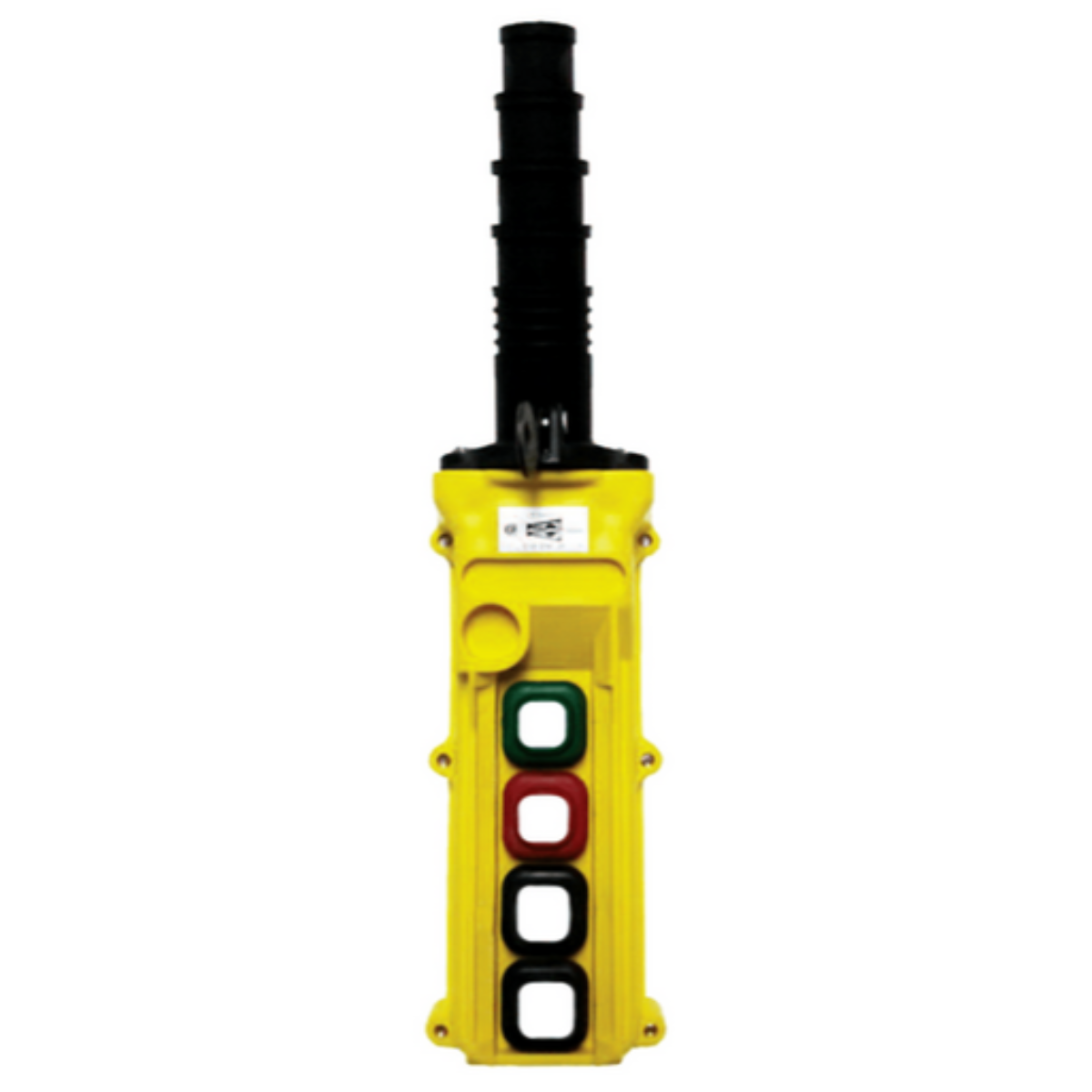

Duct-O-Wire L4-S-2 Pendant Push Button Station
The Duct-O-Wire L Series L4-S-2 Pendant Push Button Station is a robust and ergonomically designed control solution engineered for industrial applications requiring reliable two-motion, two-speed operation. Compact yet highly capable, this pendant station is ideal for controlling overhead cranes, hoists, monorails, and material handling equipment in a wide range of environments.
With a 4-button shallow enclosure, the L4-S-2 model offers dual-speed control across two axes—typically Up/Down and Forward/Reverse or Left/Right—providing precise handling and seamless speed transitions for enhanced operational efficiency. Every motion is controlled by a pair of push buttons that enable fine-tuned speed control.
Designed for durability and performance, the L4-S-2 is built from high-impact polypropylene, making it resistant to chemicals, moisture, and physical impact. The unit complies with NEMA 1, 3, 4, 4X, and 12 standards, giving reliable performance in indoor and outdoor settings, including wet or corrosive industrial environments.
Installation is straightforward, thanks to its lightweight form factor, multi-step cord grip, and included strain relief hook and cable clamp set. Operators benefit from the slim ergonomic profile, replaceable neoprene boots, and clear legend plates, all of which contribute to ease of use and long-term serviceability.
Specifications
- Enclosure Type: 4-Button Shallow
- Dimensions:
- Length: 8.25 in. (209.6 mm)
- Width: 3.13 in. (79.5 mm)
- Depth: 2.00 in. (50.8 mm)
- Cable Entry Range: 0.640 to 0.890 in. (16.3 to 22.6 mm)
- Shipping Weight (Approx.): 0.64 lbs (290 g)
- Cord Grip: Multi-step grip for 4 to 24 conductor cables
- Material: High-impact Polypropylene
- Ingress Protection: NEMA Types 1, 3, 4, 4X, and 12
- Boots: Replaceable Neoprene Seals
- Legend Plates: Easy-to-read, engraved or printed directional labels
- Strain Relief: Hook and clamp set included
- Certifications: UL Listed, CSA Approved
Key Benefits
- Precise Dual-Speed Control: Independent button pairs for slow and fast operation on each axis
- Durable Construction: Engineered to withstand harsh conditions, including moisture, chemicals, and impact
- Operator-Friendly Design: Slim profile reduces fatigue and enhances comfort during extended use
- Flexible Installation: Lightweight and compact design with a secure cable management system
- Compliance and Safety: Built to meet or exceed industry safety and environmental standards
