Product Overview

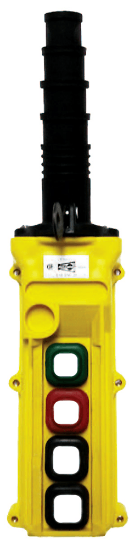

Duct-O-Wire L4-S-2A Pendant Push Button Station
The Duct-O-Wire L4-S-2A is a rugged, ergonomic pendant control station from the L Series, designed for overhead cranes, hoists, and other industrial machinery requiring simple two-motion control. With a 4-button shallow enclosure, this model is built for compact, reliable operation in a wide range of environments.
Key Features and Specifications
FeatureDetails
Model L4-S-2A
Series L Series
Button Configuration 4-button (2-motion control: Up/Down + Left/Right or Forward/Reverse)
Enclosure Style Shallow
Enclosure Material High-impact Polypropylene
Dimensions Length: 8.75 in. (222 mm)
Width: 3.13 in. (79.5 mm)
Depth: 2.00 in. (50.8 mm)
Cable Entry Range 0.640 to 0.890 in. (16.3 to 22.6 mm)
Weight (approx.) 0.64 lbs (290 g)
Cord Grip Type Multi-step cord grip for 4 to 24 conductor cables
Ingress Protection (NEMA Ratings) NEMA 1, 3, 4, 4X, and 12 — suitable for indoor/outdoor, dust, water, and corrosion-resistant applications
Strain Relief Includes strain relief hook and cable clamp set
Switch Type Momentary contact switches (other switch types available on request)
Boots Replaceable neoprene boots for environmental protection and tactile feel
Legend Plates Clear, easy-to-read engraved legend plates for operator guidance
Certifications UL Listed and CSA Approved
Mounting Orientation Vertical hanging with top hook (standard)
Applications
- Overhead Cranes
- Monorail Hoists
- Trolley Systems
- Conveyor Controls
- General Material Handling Equipment
Advantages
- Ergonomic slim profile minimizes operator fatigue
- Rugged polymer housing resists impact and chemical exposure
- Wide compatibility with various control cable types
- Modular construction allows easy repair or reconfiguration
- Suitable for harsh environments thanks to its NEMA 4X rating and sealed design
